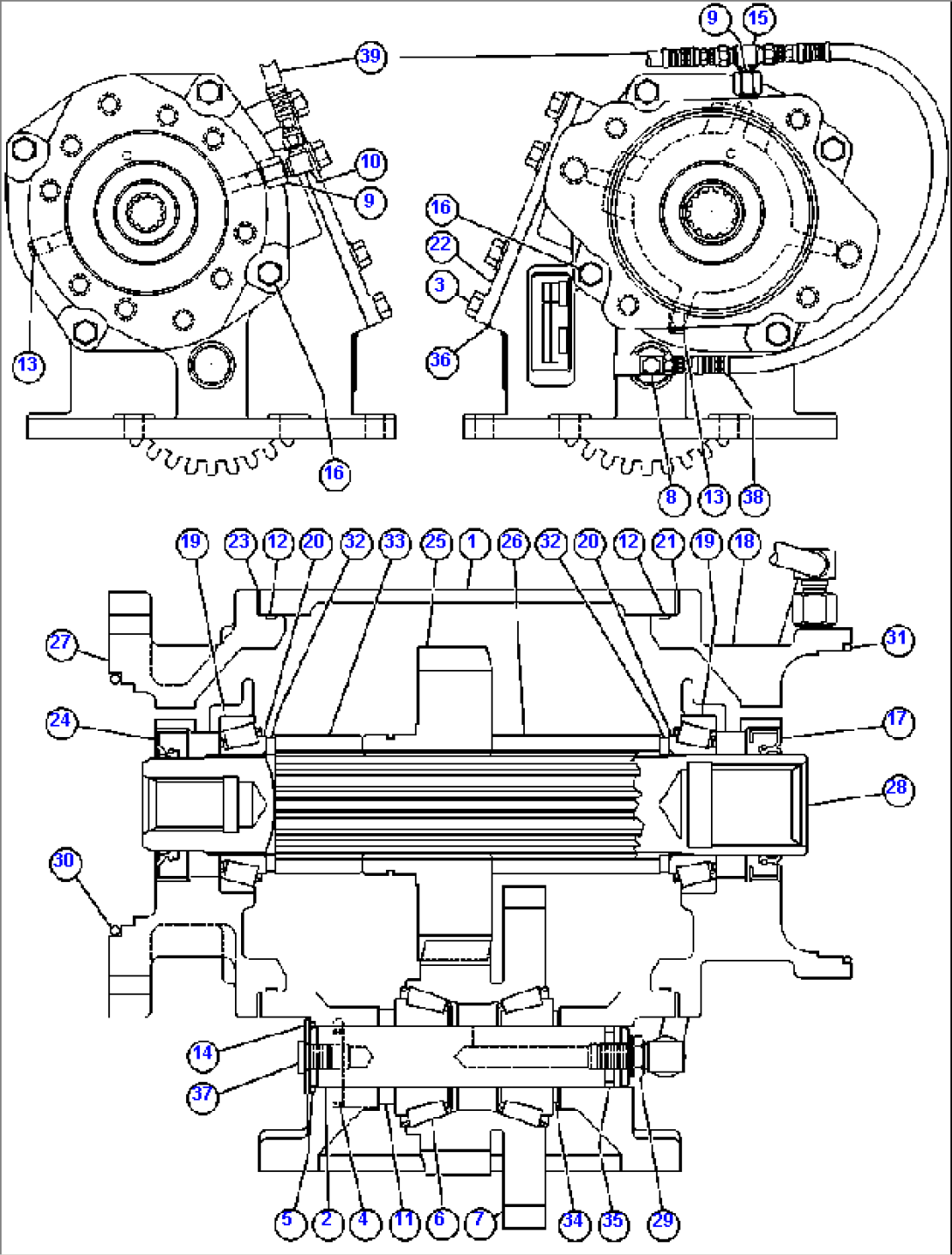

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF1563 | HOUSING | ||
| 2 | BF1570 | SHAFT, IDLER | ||
| 3 | BF1585 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 4 | BF1590 | PIN, ROLL SLOTTED | ||
| 5 | BF1577 | O-RING | ||
| 6 | BF1593 | CONE, BEARING | ||
| 7 | BF1569 | GEAR, INPUT | ||
| 8 | BF1594 | TEE | ||
| 9 | BF1596 | PIPE ADAPTOR | ||
| 10 | BF1597 | ELBOW | ||
| 11 | BF1572 | SPACER, INPUT BEARING | ||
| 12 | BF1578 | O-RING | ||
| 13 | TH3657 | PLUG, PIPE - 1/8" | ||
| 14 | BF1589 | RETAINER, O-RING | ||
| 15 | BF1598 | TEE | ||
| 16 | BF1586 | CAPSCREW - 3/8" - 16NC X 1 1/8" | ||
| 17 | VE8595 | SEAL, OIL (OUTPUT) | ||
| 18 | BF1573 | FLANGE, PUMP | ||
| 19 | BF1591 | CUP, BEARING TAPERED | ||
| 20 | BF1592 | CONE, BEARING TAPERED | ||
| 21 | BF1580 | SHIM - .003 (GREEN) | ||
| 21 | BF1581 | SHIM - .010 (BROWN) | ||
| 21 | BF1582 | SHIM - .020 (YELLOW) | ||
| 22 | BF1583 | COVER | ||
| 23 | BF1575 | GASKET | ||
| 24 | BF1576 | SEAL, OIL (OUTPUT) | ||
| 25 | BF1564 | GEAR, OUTPUT | ||
| 26 | BF1567 | SPACER, OUTPUT SHAFT | ||
| 27 | BF1574 | FLANGE, PUMP | ||
| 28 | BF1565 | SHAFT, OUTPUT | ||
| 29 | BF1588 | CONNECTOR, ELBOW 90 DEG. | ||
| 30 | VE8601 | O-RING | ||
| 31 | VE8600 | O-RING | ||
| 32 | BF1566 | SPACER, OUTPUT SHAFT | ||
| 33 | BF1568 | SPACER, OUTPUT SHAFT | ||
| 34 | BF1571 | SPACER, BEARING ADJUSTING | ||
| 35 | BF1579 | O-RING | ||
| 36 | BF1584 | GASKET | ||
| 37 | BF1587 | CONNECTOR, STRAIGHT | ||
| 38 | BF1599 | HOSE ASSEMBLY | ||
| 39 | BF1600 | HOSE ASSEMBLY | ||
| NS|42 | NOTE: NS = NOT SHOWN | |||
| NS|43 | BF1601 | STUD KIT | ||
| NS|44 | BF1602 | HOSE, LUBE |
