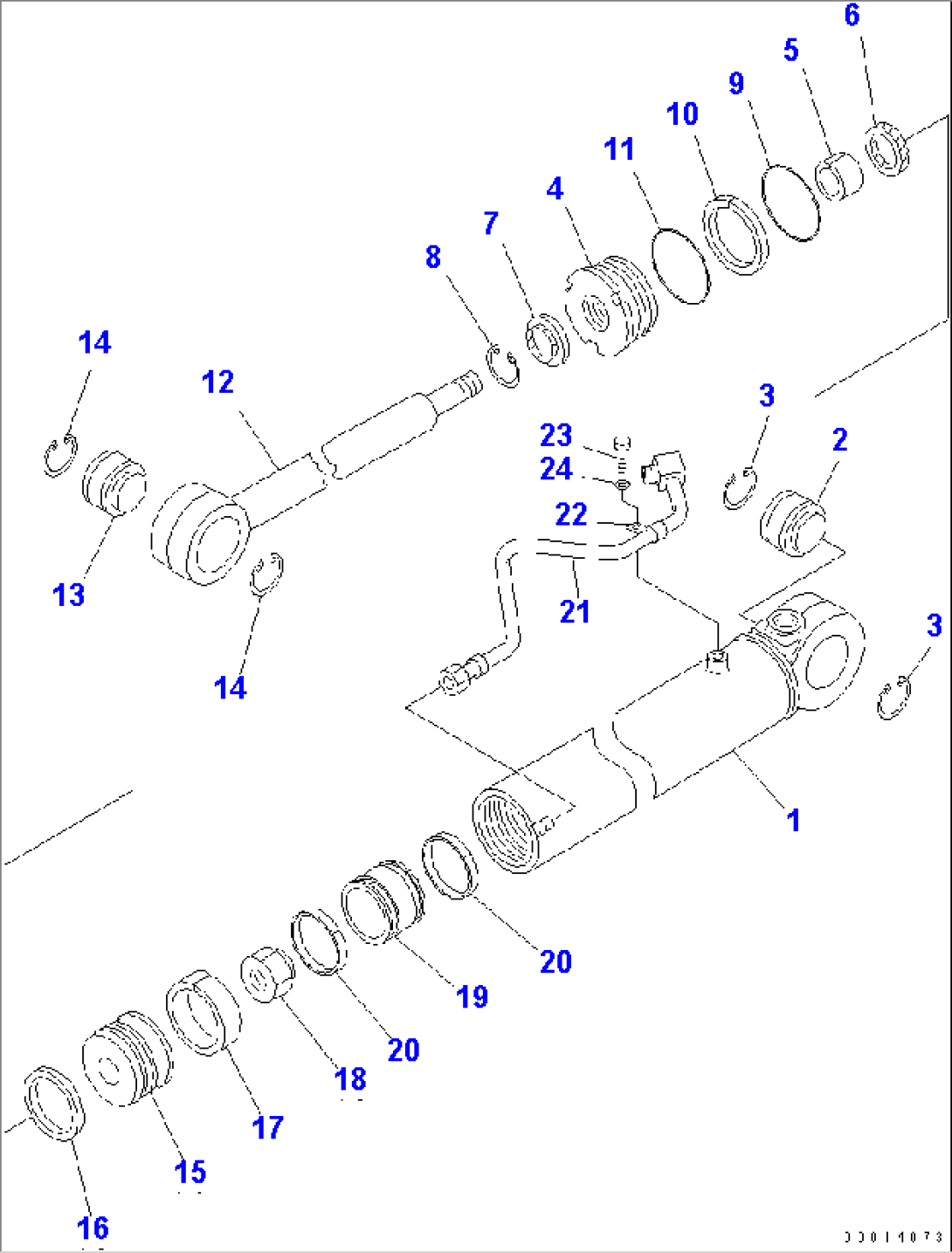

| Item | Part No. | Part Name | Qty | Serial No. |
| 23D-63-X1171 | CYLINDER ASS'Y | .- | ||
| 23D-63-18300 | CYLINDER ASS'Y,POWER TILT | .- | ||
| 1 | 23D-63-18142 | CYLINDER | 7001- | |
| 2 | 707-76-35010 | BUSHING | 7001- | |
| 3 | 04065-05520 | RING,SNAP | 7001- | |
| 4 | 707-29-70920 | HEAD,CYLINDER | 7001- | |
| 5 | 07177-03525 | BUSHING | 7001- | |
| 6 | 707-51-35210 | PACKING,ROD | 7001- | |
| 7 | 175-63-75190 | SEAL,DUST | 7001- | |
| 8 | 07179-12047 | RING,SNAP | 7001- | |
| 9 | 07000-12065 | O-RING | 7001- | |
| 10 | 07001-02065 | RING,BACK-UP | 7001- | |
| 11 | 07000-12070 | O-RING | 7001- | |
| 12 | 23D-63-18120 | ROD,PISTON | 7001- | |
| 13 | 707-76-35010 | BUSHING | 7001- | |
| 14 | 04065-05520 | RING,SNAP | 7001- | |
| 15 | 707-36-70910 | PISTON | 7001- | |
| 16 | 707-44-70070 | RING,PISTON | 7001- | |
| 17 | 07155-00720 | RING,WEAR | 7001- | |
| 18 | 07165-12426 | NUT | 7001- | |
| 19 | 707-81-70290 | SPACER | .- | |
| 20 | 07156-00710 | RING | .- | |
| 21 | 23D-60-15270 | TUBE | .- | |
| 22 | 233-60-29850 | CLIP | .- | |
| 23 | 01010-80816 | BOLT | .- | |
| 24 | 01643-30823 | WASHER | .- |
