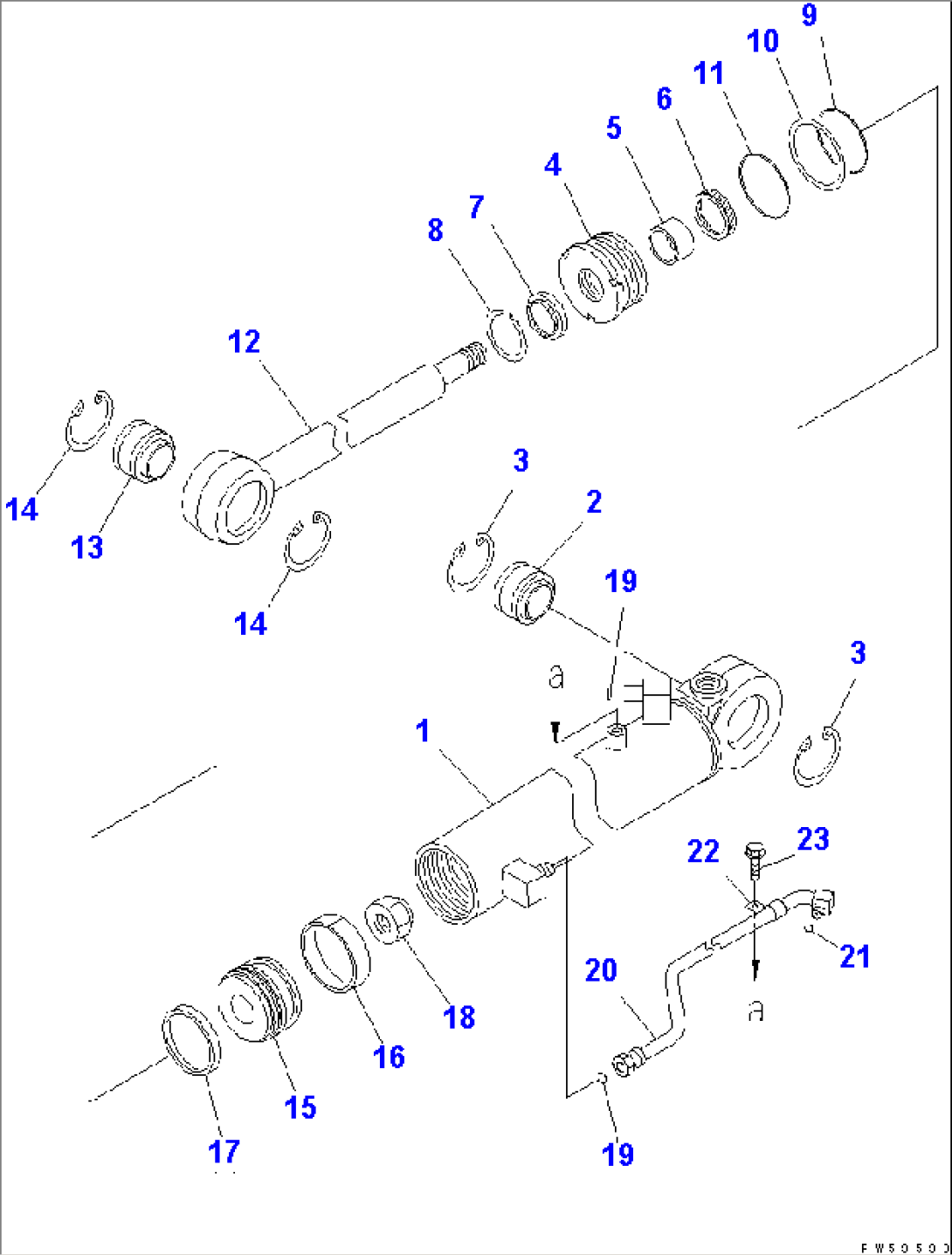

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-XC150) | CYLINDER GROUP | 51301- | |
| G1 | (\8\707-00-X7G10) | CYLINDER GROUP,(FINAL COATING) | 51301- | |
| ==================== | ||||
| 707-00-0C150 | CYLINDER ASS'Y | 51301- | ||
| 1 | 707-11-80C30 | CYLINDER | 51301- | |
| 2 | 114-63-55170 | BUSHING | 51301- | |
| 3 | 04065-06220 | RING,SNAP | 51301- | |
| 4 | 707-29-80820 | HEAD,CYLINDER | 51301- | |
| 5 | 07177-04025 | BUSHING | 51301- | |
| 6 | 707-51-40210 | PACKING,ROD (KIT) | 51301- | |
| 7 | 198-63-75190 | SEAL,DUST (KIT) | 51301- | |
| 8 | 07179-12052 | RING,SNAP | 51301- | |
| 9 | 07000-12075 | O-RING (KIT) | 51301- | |
| 10 | 07146-02076 | RING,BACK-UP (KIT) | 51301- | |
| 11 | 07000-12080 | O-RING (KIT) | 51301- | |
| 12 | 23B-63-18121 | ROD,PISTON | 51301- | |
| 13 | 114-63-55170 | BUSHING | 51301- | |
| 14 | 04065-06220 | RING,SNAP | 51301- | |
| 15 | 707-36-80970 | PISTON | 51301- | |
| 16 | 07156-00810 | RING,WAER (KIT) | 51301- | |
| 17 | 707-44-80070 | RING,PISTON (KIT) | 51301- | |
| 18 | 07165-12729 | NUT | 51301- | |
| 19 | 02896-11009 | O-RING (KIT) | 51301- | |
| 20 | 707-86-38980 | TUBE | 51301- | |
| 21 | 02896-11009 | O-RING | 51301- | |
| 22 | 04434-51510 | CLIP | 51301- | |
| 23 | 01435-01016 | BOLT | 51301- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-23170 | SERVICE KIT,POWER TILT CYLINDER | 51301- |
