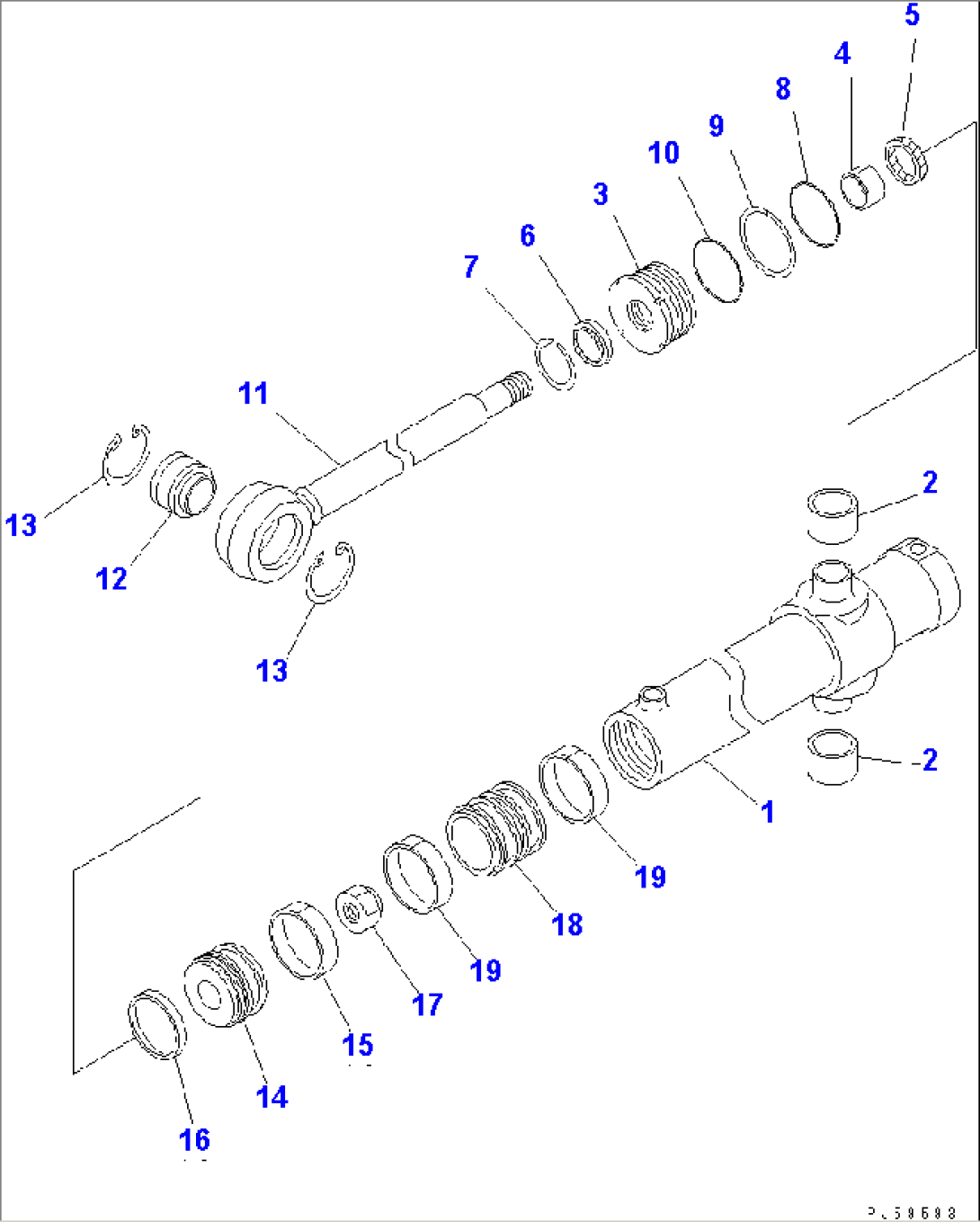

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-02-00130 | CYLINDER ASS'Y,POWER TILT | 11001- | ||
| 1 | 234-63-19140 | CYLINDER | 11001- | |
| 2 | 175-63-12540 | BUSHING | 11001- | |
| 3 | 707-29-12940 | HEAD,CYLINDER | 11001- | |
| 4 | 07177-06530 | BUSHING | 11001- | |
| 5 | 707-51-65210 | PACKING,ROD | 11001- | |
| 6 | 144-63-92170 | SEAL,DUST | 11001- | |
| 7 | 07179-00088 | RING,SNAP | 11001- | |
| 8 | 07000-12115 | O-RING | 11001- | |
| 9 | 707-35-91200 | RING,BACK-UP | 11001- | |
| 10 | 07000-12120 | O-RING | 11001- | |
| 11 | 234-63-14120 | ROD,PISTON | 11001- | |
| 12 | 287-50-17161 | BUSHING | 11001- | |
| 13 | 04065-01104 | RING,SNAP | 11001- | |
| 14 | 707-36-12911 | PISTON | 11001- | |
| 15 | 07155-01230 | RING,WEAR | 11001- | |
| 16 | 707-44-12070 | RING,PISTON | 11001- | |
| 17 | 07165-13941 | NUT,NYLON | 11001- | |
| 18 | 707-81-12150 | COLLAR | 11001- | |
| 19 | 07155-01230 | RING,WEAR | 11001- |
