| Item | Part No. | Part Name | Qty | Serial No. |

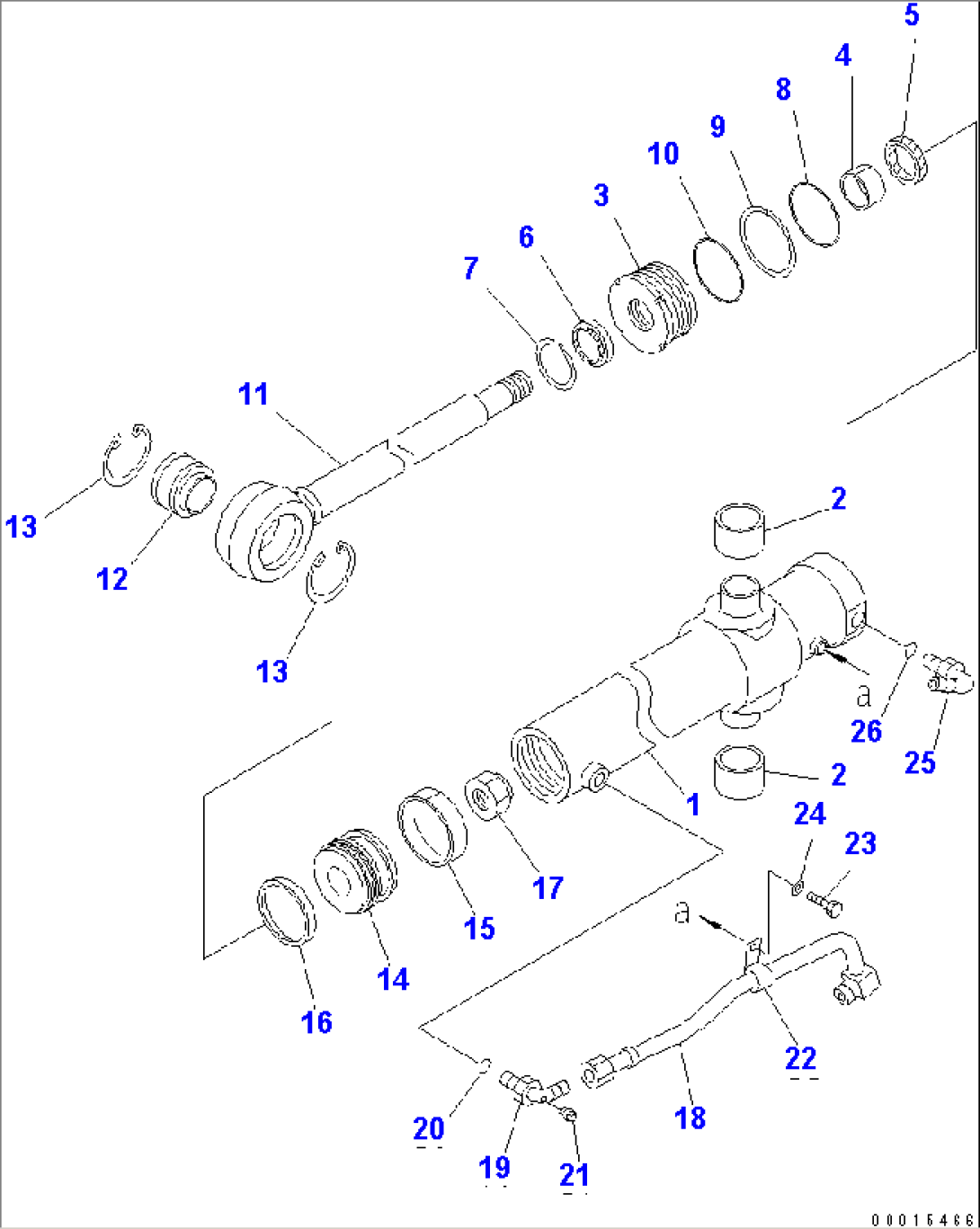

| 707-02-X7260 | CYLINDER ASS'Y,POWER TILT | 12007- | ||
| 23F-63-01020 | CYLINDER ASS'Y,POWER TILT | 12001- | ||
| 1 | 23F-63-18240 | CYLINDER | 11001- | |
| 2 | 154-63-12340 | BUSHING | 11001- | |
| 3 | 707-29-10720 | HEAD,CYLINDER | 11001- | |
| 4 | 07177-05030 | BUSHING | 11001- | |
| 5 | 707-51-50211 | PACKING,ROD | 11001- | |
| 6 | 176-63-92240 | SEAL,DUST | 11001- | |
| 7 | 07179-12062 | RING,SNAP | 11001- | |
| 8 | 07000-12095 | O-RING | 11001- | |
| 9 | 07146-02096 | RING,BACK-UP | 11001- | |
| 10 | 07000-02100 | O-RING | 11001- | |
| 11 | 23F-63-18220 | ROD,PISTON | 11001- | |
| 12 | 707-46-06010 | BUSHING | 11001- | |
| 13 | 04065-09030 | RING,SNAP | 11001- | |
| 14 | 707-36-10950 | PISTON | 11001- | |
| 15 | 07156-01012 | RING,WEAR | 11001- | |
| 16 | 707-44-10070 | RING,PISTON | 11001- | |
| 17 | 07165-13336 | NUT,NYLON | 11001- | |
| 18 | 23F-60-15171 | TUBE | 12007- | |
| 19 | 07235-50422 | ELBOW | 12007- | |
| 20 | 07002-12034 | O-RING | 12007- | |
| 21 | 07042-70108 | PLUG | 12007- | |
| 22 | 232-60-63160 | CLIP | 12007- | |
| 23 | 01010-81016 | BOLT | 12007- | |
| 24 | 01643-31032 | WASHER | 12007- | |
| 25 | 236-60-24450 | ELBOW | 12007- | |
| 26 | 07002-12434 | O-RING | 12007- |
