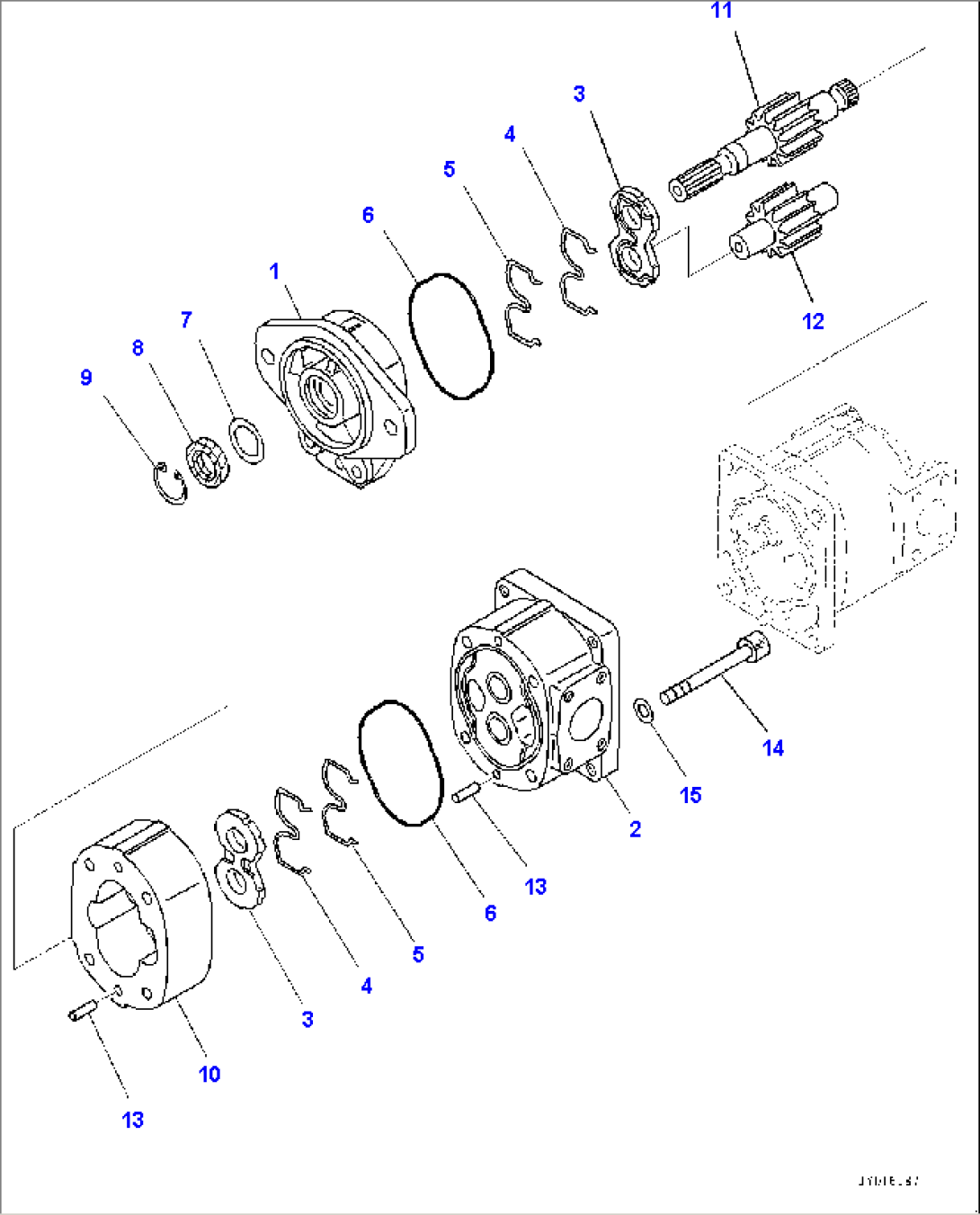

Item | Part No. | Part Name | Qty | Serial No. |
14X-22-50003 | Power Train Assembly | (105270- | ||
14X-22-50002 | Power Train Assembly | 1469-(105269 | ||
14X-22-50001 | Power Train Assembly | 1001-1468 | ||
705-51-20830 | Pump Assembly | 1001- | ||
705-11-33240 | Pump Assembly | 1001- | ||
1 | (705-17-02011) | Bracket Assembly | 1001- | |
(705-17-02353) | Bushing, Plane | 1001- | ||
2 | (705-17-02221) | Carrier Assembly | 1001- | |
(705-17-02353) | Bushing, Plane | 1001- | ||
3 | 705-17-02612 | Plate | 1001- | |
4 | 705-17-02430 | Ring, Back-up | 1001- | |
5 | 705-17-02460 | Seal Ring | 1001- | |
6 | 705-17-02360 | O-ring | 1001- | |
7 | 705-17-02870 | Plate | 1001- | |
8 | 705-17-02830 | Seal, Oil | 1001- | |
9 | 04065-04018 | Ring, Snap | 1001- | |
10 | (705-17-33012) | Gear Case | 1001- | |
11 | (705-17-33430) | Gear, Drive | 1001- | |
12 | (705-17-33512) | Gear, Driven | 1001- | |
13 | 04020-01024 | Pin, Dowel | 1001- | |
14 | 01253-61210 | Bolt, Hexagon Socket Head | 1001- | |
15 | 01643-51232 | Washer | 1001- |
