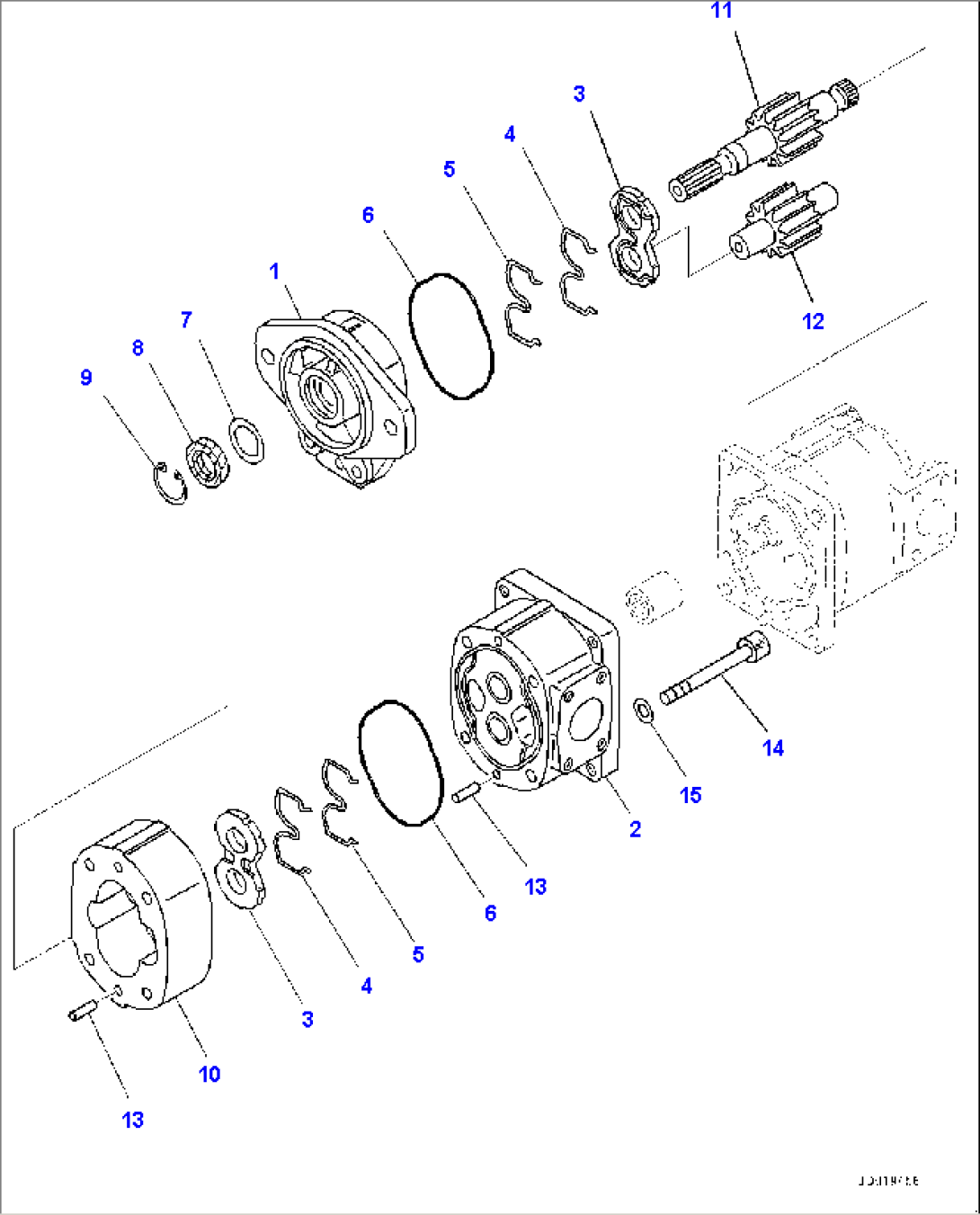

Item | Part No. | Part Name | Qty | Serial No. |
154-22-60060 | Power Train Assembly | 22083- | ||
705-51-30660 | Pump Assembly, Gear, SAL63+50 | 22083- | ||
705-37-36020 | Pump Assembly, SAL63 | 22083- | ||
1 | (705-17-03012) | Bracket Assembly | 22083- | |
(705-17-03352) | Bearing, Plane | 22083- | ||
2 | (705-17-03221) | Carrier Assembly | 22083- | |
(705-17-03352) | Bearing, Plane | 22083- | ||
3 | 705-17-03610 | Plate, Side | 22083- | |
4 | 705-17-03443 | Ring, Back-up | 22083- | |
5 | 705-17-03473 | Seal | 22083- | |
6 | 705-17-03381 | O-ring | 22083- | |
7 | 705-17-03870 | Plate | 22083- | |
8 | 705-17-03811 | Seal, Oil | 22083- | |
9 | 04065-05220 | Ring, Snap | 22083- | |
10 | (705-17-36010) | Case, Gear | 22083- | |
11 | (705-19-36130) | Gear, Drive | 22083- | |
12 | (705-17-36511) | Gear, Driven | 22083- | |
13 | 04020-01228 | Pin, Dowel | 22083- | |
14 | 01253-61615 | Bolt, Hexagon Socket Head | 22083- | |
15 | 01643-51645 | Washer | 22083- |
