| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1S-00241 | Pump Assembly | 12062- | ||
| 1 | 708-3S-14240 | Plug | 12062- | |
| 2 | 708-3S-14261 | Plug | 12062- | |
| 3 | 07002-61223 | O-ring | 12062- | |
| 4 | 07040-12012 | Plug | 12062- | |
| 5 | 07002-62034 | O-ring | 12062- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85px 15e0 s/n 11609 up (ecot3)
- Power transmitting system
- Power train hydraulic piping, fan pump (9/9) (#12062 )
Поиск по каталогу

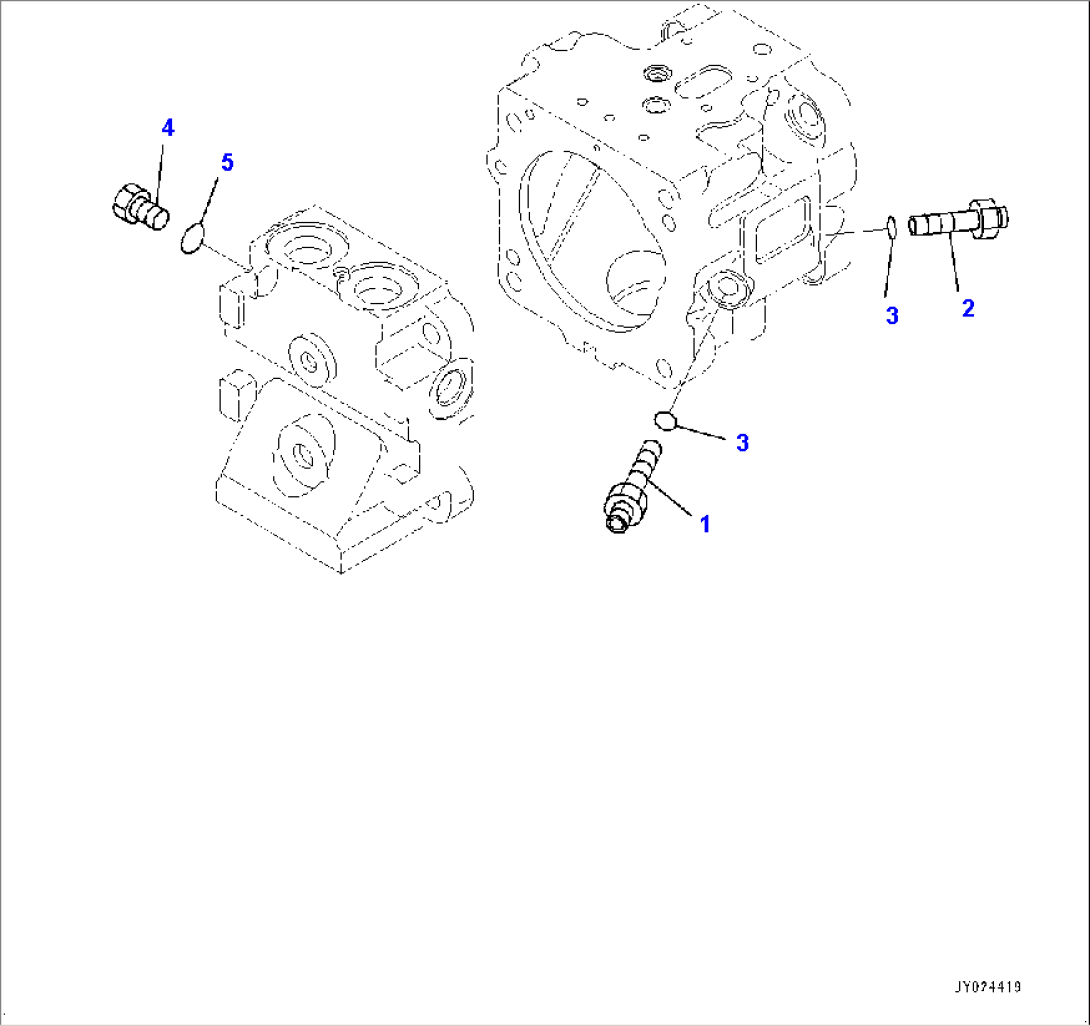

Power Train Hydraulic Piping, Fan Pump (9/9) (#12062-)
