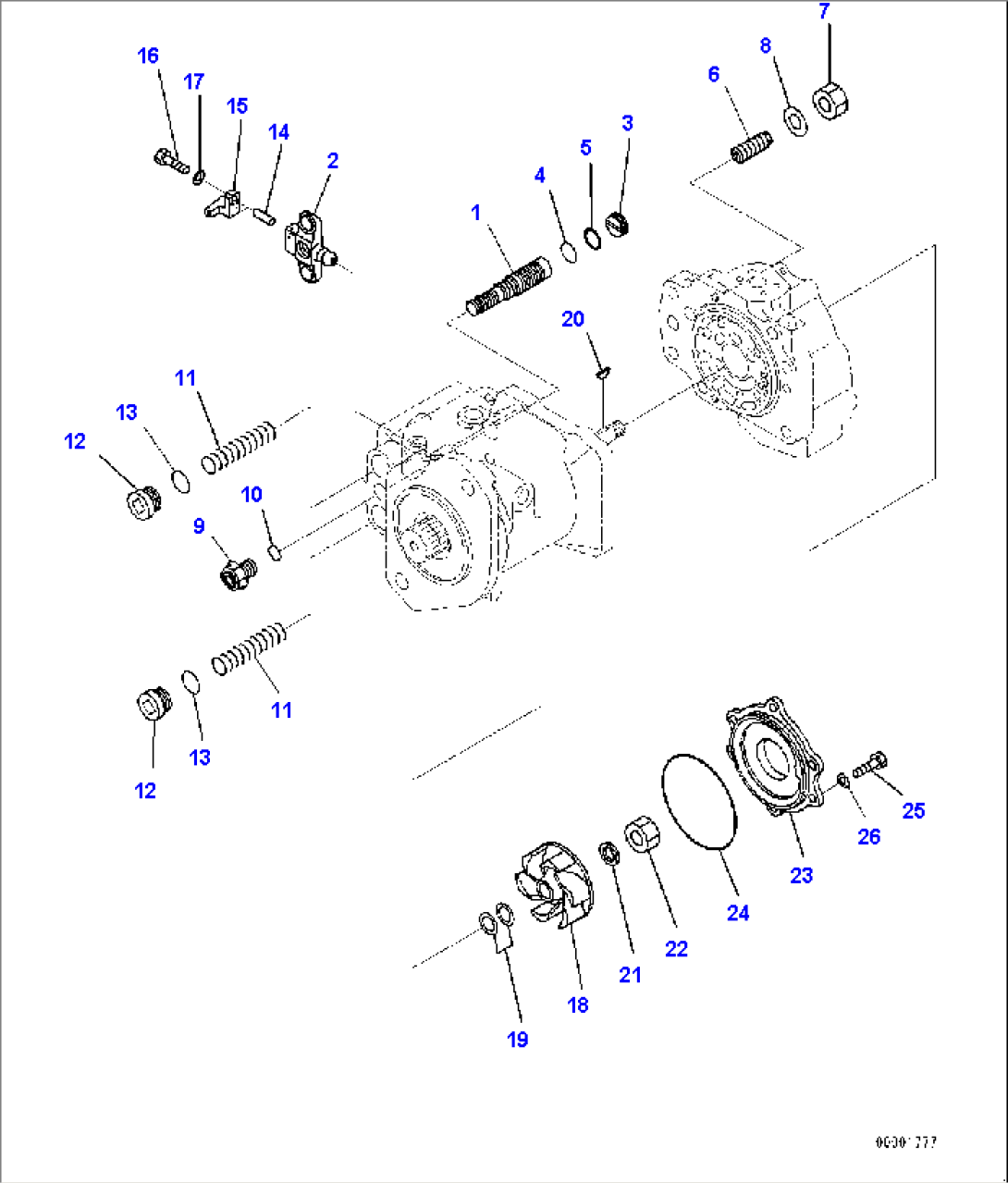

| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1H-00231 | Pump Assembly | 22001- | ||
| (708-1H-01234) | Pump Subassembly | 22001- | ||
| 1 | (708-1H-34110) | Piston | 22001- | |
| 2 | (708-2H-24220) | Rod | 22001- | |
| 3 | (708-2H-24160) | Stopper | 22001- | |
| 4 | (07000-B3028) | O-ring | 22001- | |
| 5 | (07001-03028) | Ring, Back-up | 22001- | |
| 6 | (708-2H-24320) | Screw | 22001- | |
| 7 | (01583-12414) | Nut | 22001- | |
| 8 | (01643-32460) | Washer | 22001- | |
| 9 | (708-1H-24210) | Screw | 22001- | |
| 10 | (07002-62434) | O-ring | 22001- | |
| 11 | (708-2H-24140) | Spring | 22001- | |
| 12 | (708-2H-24130) | Plug | 22001- | |
| 13 | (07002-63634) | O-ring | 22001- | |
| 14 | (04020-00514) | Pin, Dowel | 22001- | |
| 15 | (708-2H-25870) | Cam | 22001- | |
| 16 | (01010-80825) | Bolt | 22001- | |
| 17 | (01643-30823) | Washer | 22001- | |
| 18 | (708-1H-21660) | Impeller | 22001- | |
| 19 | (708-1E-05010) | Washer Kit | 22001- | |
| 19 | Washer, T=2.7mm | 22001- | ||
| 19 | Washer, T=3.0mm | 22001- | ||
| 19 | Washer, T=3.3mm | 22001- | ||
| 19 | Washer, T=3.6mm | 22001- | ||
| 20 | (04010-00522) | Key | 22001- | |
| 21 | (708-1E-11640) | Washer | 22001- | |
| 22 | (01583-12414) | Nut | 22001- | |
| 23 | (708-1H-31620) | Cover | 22001- | |
| 24 | (708-1H-32530) | O-ring | 22001- | |
| 25 | 01010-81230 | Bolt | 22001- | |
| 26 | 01643-31232 | Washer | 22001- |
