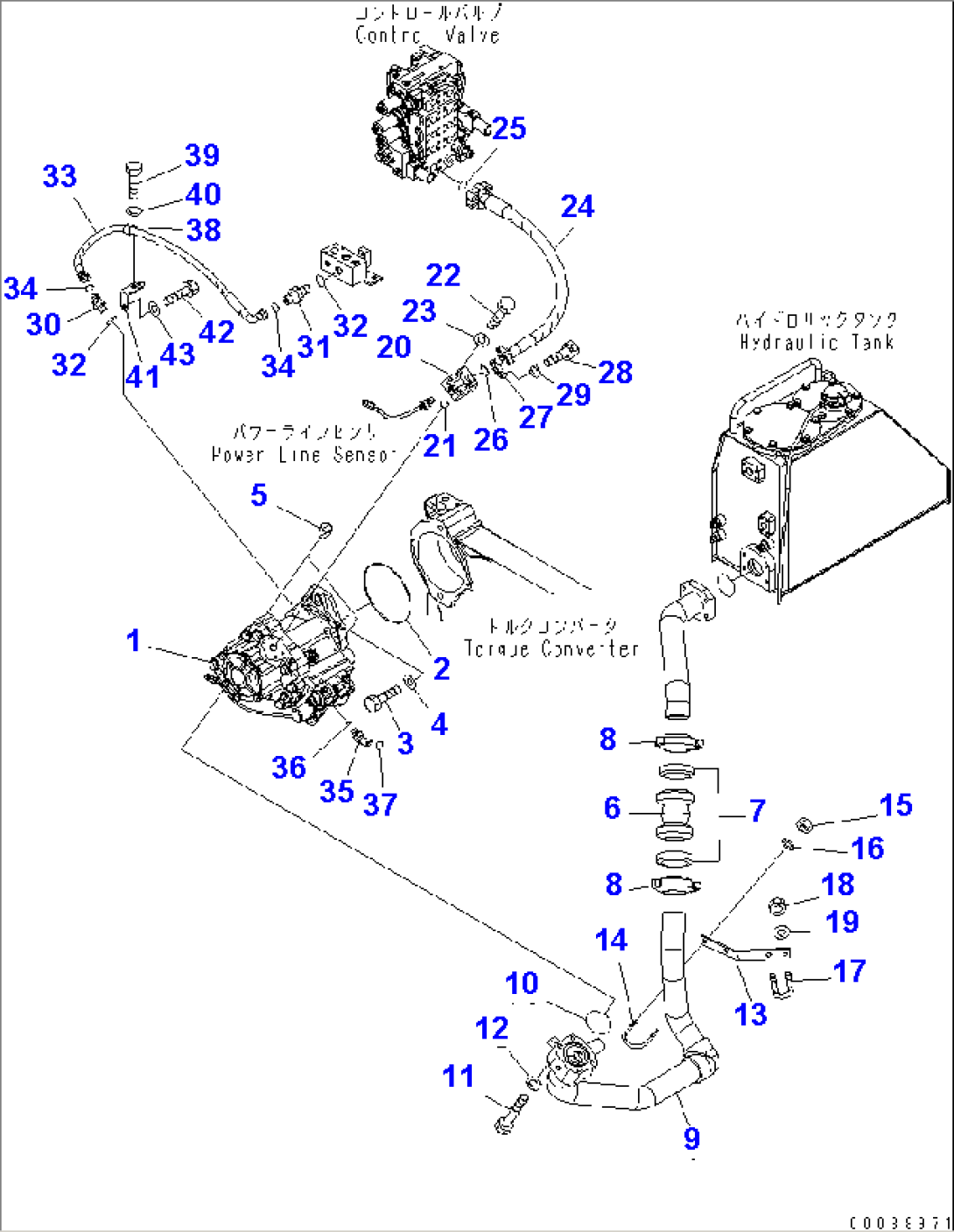

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (708-1H-00231) | PUMP ASS'Y | 1001- | |
| 2 | 07000-75165 | O-RING | 1001- | |
| 3 | 01010-82480 | BOLT | 1001- | |
| 4 | 01643-32460 | WASHER | 1001- | |
| 5 | 07049-01215 | PLUG | 1001- | |
| 6 | 07332-02400 | COUPLING | 1001- | |
| 7 | 07332-52400 | GASKET | 1001- | |
| 8 | 07332-62400 | CLAMP | 1001- | |
| 9 | 154-60-72411 | TUBE | 1001- | |
| 10 | 07000-72085 | O-RING | 1001- | |
| 11 | 01011-81200 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 154-60-72351 | BRACKET | 1001- | |
| 14 | 07283-37663 | CLIP | 1001- | |
| 15 | 01597-01009 | NUT | 1001- | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 07283-34346 | CLIP | 1001- | |
| 18 | 01597-01009 | NUT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- | |
| 20 | 154-61-71170 | BLOCK | 1001- | |
| 21 | 07000-13035 | O-RING | 1001- | |
| 22 | 01010-81055 | BOLT | 1001- | |
| 23 | 01643-31032 | WASHER | 1001- | |
| 24 | 154-61-71220 | HOSE, 970MM | 1001- | |
| 25 | 07000-13032 | O-RING | 1001- | |
| 26 | 07000-13038 | O-RING | 1001- | |
| 27 | 07371-31049 | FLANGE | 1001- | |
| 28 | 07372-21035 | BOLT | 1001- | |
| 29 | 01643-51032 | WASHER | 1001- | |
| 30 | 02783-10522 | ELBOW | 1001- | |
| 31 | 02781-00522 | UNION | 1001- | |
| 32 | 07002-12434 | O-RING | 1001- | |
| 33 | 02763-00509 | HOSE | 1001- | |
| 34 | 02896-11015 | O-RING | 1001- | |
| 35 | 154-61-75761 | ELBOW | 1001- | |
| 36 | 07002-11423 | O-RING | 1001- | |
| 37 | 02896-11008 | O-RING | 1001- | |
| 38 | 04434-52312 | CLIP | 1001- | |
| 39 | 01010-81230 | BOLT | 1001- | |
| 40 | 01643-31232 | WASHER | 1001- | |
| 41 | 154-60-72480 | BRACKET | 1001- | |
| 42 | 01010-81230 | BOLT | 1001- | |
| 43 | 01643-31232 | WASHER | 1001- |
