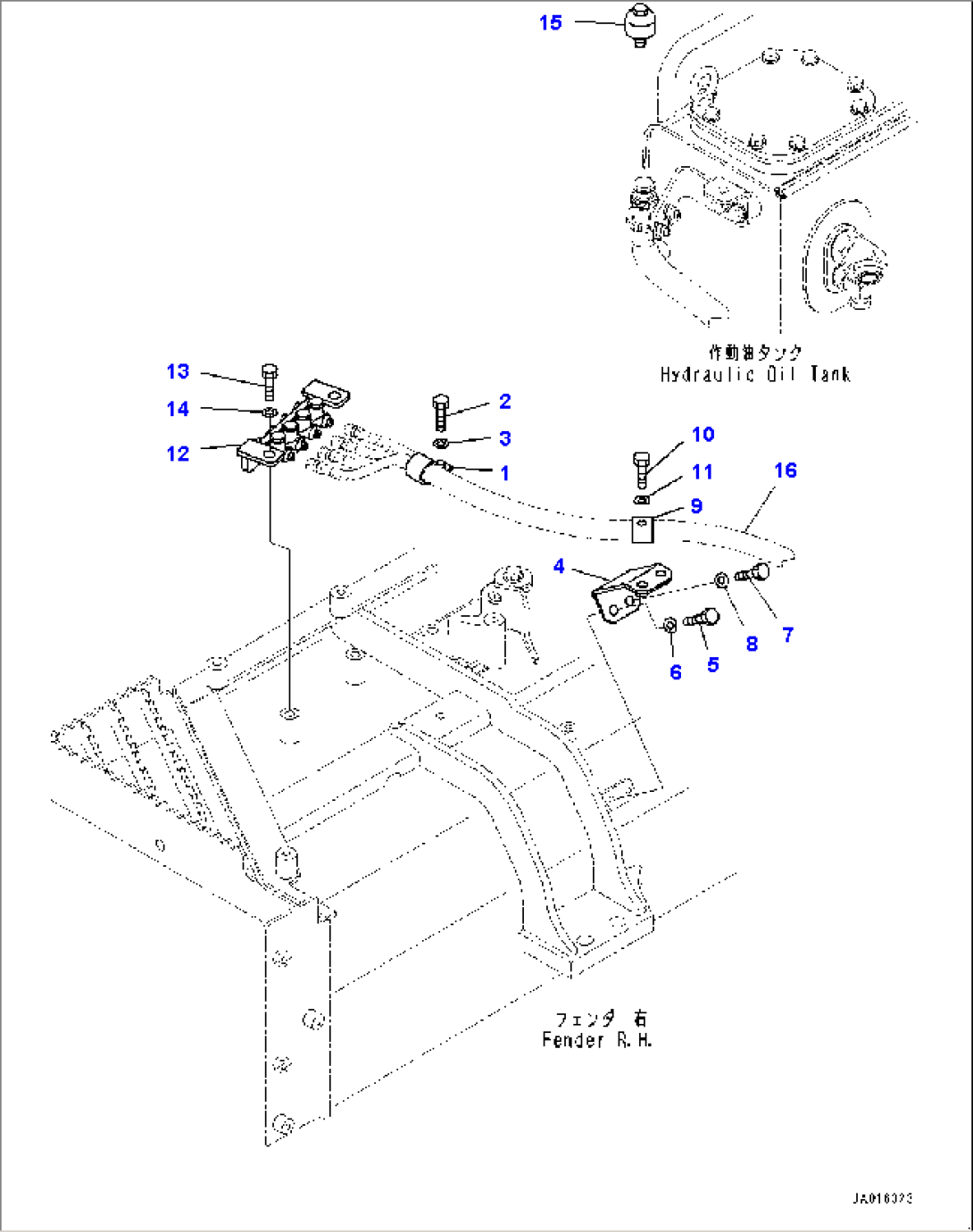

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-52711 | Clip | 1001- | |
| 2 | 01010-81020 | Bolt | 1001- | |
| 3 | 01643-31032 | Washer | 1001- | |
| 4 | 14X-49-51320 | Bracket | 1001- | |
| 5 | 01010-81020 | Bolt | 1001- | |
| 6 | 01643-31032 | Washer | 1001- | |
| 7 | 01010-81020 | Bolt | 1001- | |
| 8 | 01643-31032 | Washer | 1001- | |
| 9 | 04434-52511 | Clip | 1001- | |
| 10 | 01010-81020 | Bolt | 1001- | |
| 11 | 01643-31032 | Washer | 1001- | |
| 12 | 14X-49-51271 | Joint Assembly | 1001- | |
| 13 | 01010-81225 | Bolt | 1001- | |
| 14 | 01643-31232 | Washer | 1001- | |
| 15 | 07030-00252 | Breather | 1001- | |
| 16 | (14X-49-51212) | Hose Assembly | - | |
| (14X-49-51212) | Hose Assembly | - |
