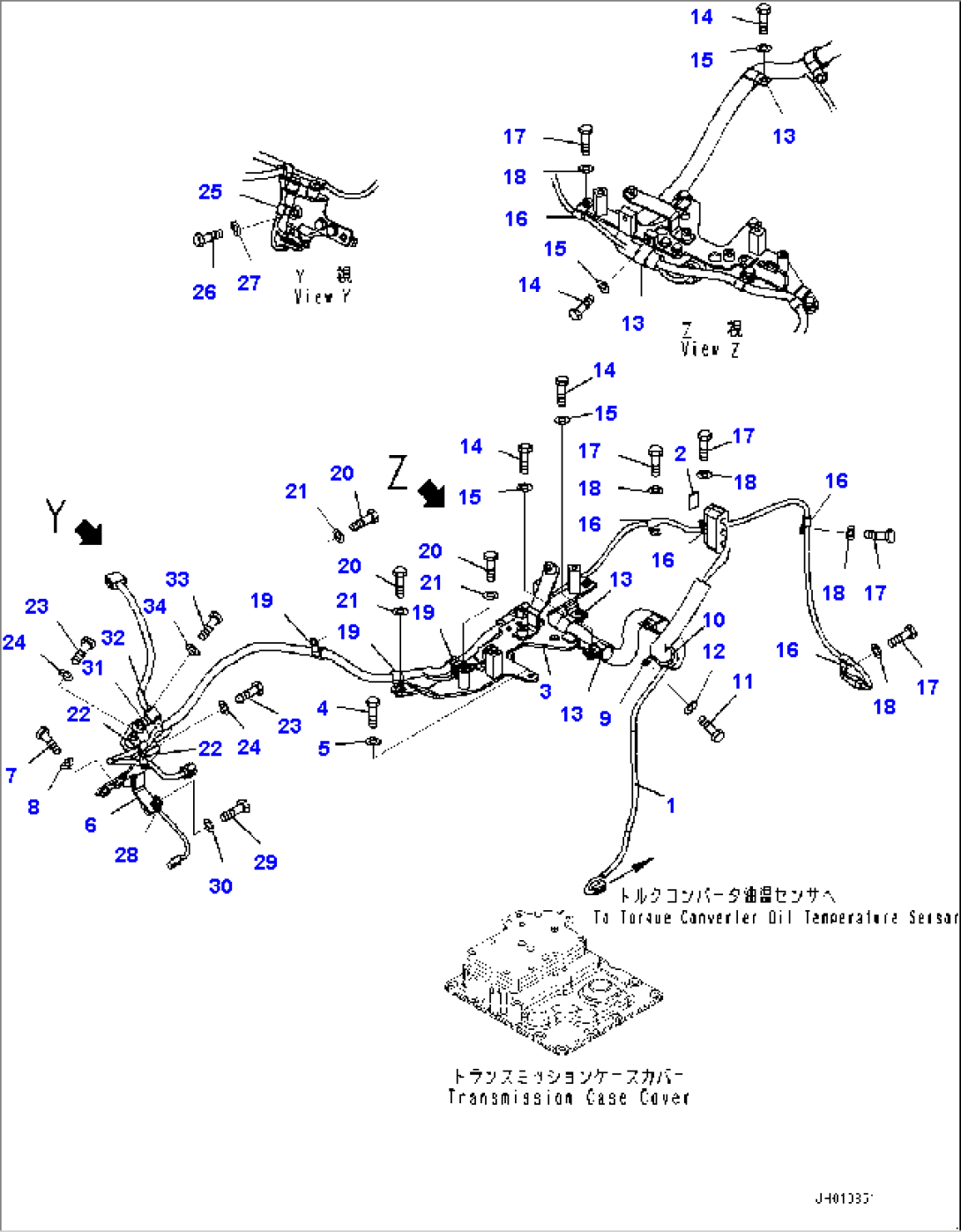

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-84111 | Wiring Harness | 22001- | |
| 2 | 17A-06-41840 | Seal | 22001- | |
| 3 | 154-43-82511 | Bracket | 22001- | |
| 4 | 01010-81020 | Bolt | 22001- | |
| 5 | 01643-31032 | Washer | 22001- | |
| 6 | 154-06-87311 | Bracket | 22001- | |
| 7 | 01010-81225 | Bolt | 22001- | |
| 8 | 01643-31232 | Washer | 22001- | |
| 9 | 155-61-15350 | Clip | 22001- | |
| 10 | 22M-62-13660 | Cushion | 22001- | |
| 11 | 01010-81225 | Bolt | 22001- | |
| 12 | 01643-31232 | Washer | 22001- | |
| 13 | 04434-53412 | Clip | 22001- | |
| 14 | 01010-81225 | Bolt | 22001- | |
| 15 | 01643-31232 | Washer | 22001- | |
| 16 | 04434-51012 | Clip | 22001- | |
| 17 | 01010-81225 | Bolt | 22001- | |
| 18 | 01643-31232 | Washer | 22001- | |
| 19 | 04434-51712 | Clip | 22001- | |
| 20 | 01010-81225 | Bolt | 22001- | |
| 21 | 01643-31232 | Washer | 22001- | |
| 22 | 04434-51012 | Clip | 22001- | |
| 23 | 01010-81225 | Bolt | 22001- | |
| 24 | 01643-31232 | Washer | 22001- | |
| 25 | 04434-51012 | Clip | 22001- | |
| 26 | 01010-81225 | Bolt | 22001- | |
| 27 | 01643-31232 | Washer | 22001- | |
| 28 | 04434-50812 | Clip | 22001- | |
| 29 | 01010-81225 | Bolt | 22001- | |
| 30 | 01643-31232 | Washer | 22001- | |
| 31 | 04434-52112 | Clip | 22001- | |
| 32 | 07095-20314 | Cushion | 22001- | |
| 33 | 01010-81225 | Bolt | 22001- | |
| 34 | 01643-31232 | Washer | 22001- |
