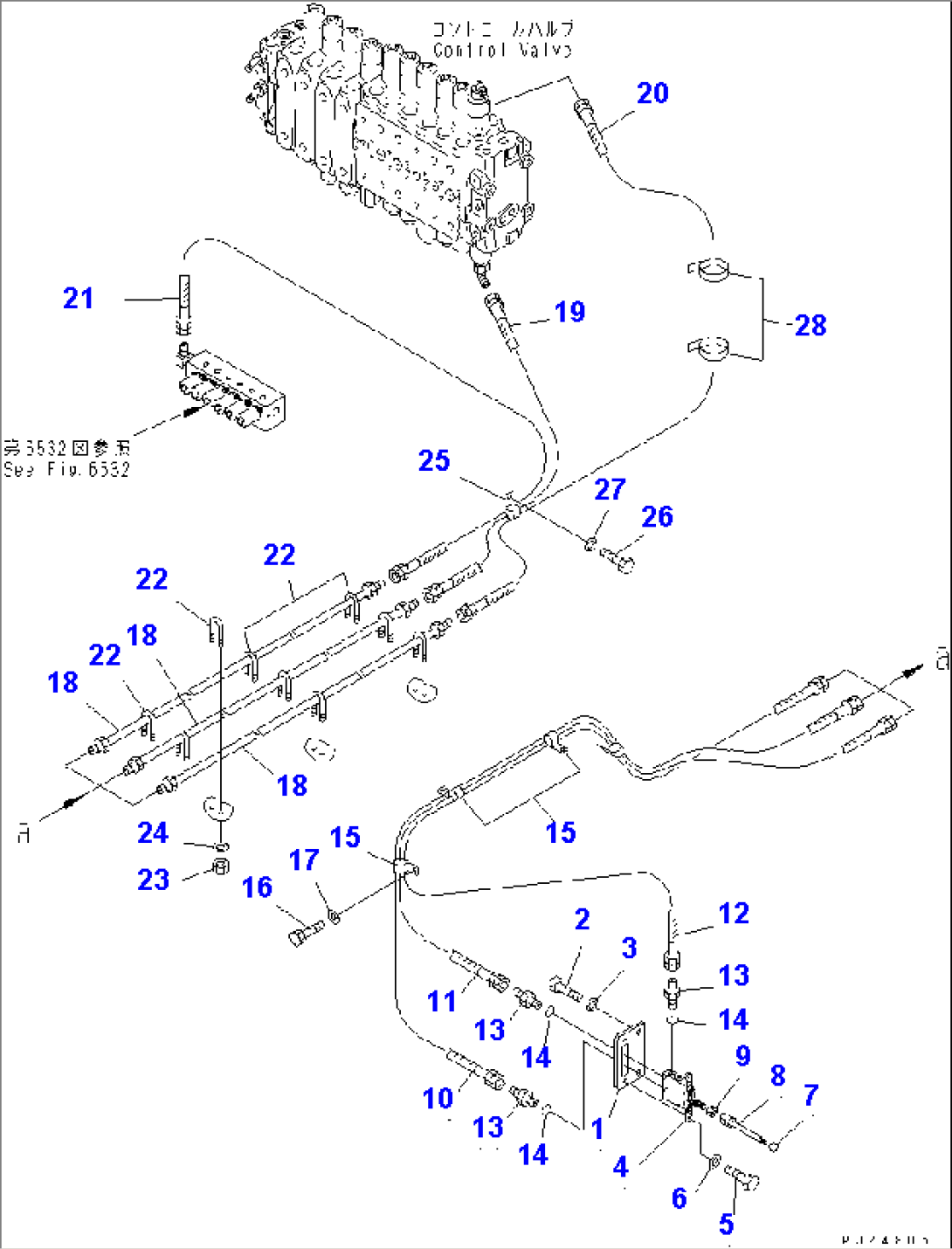

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8242-62-2210 | PLATE | 1005- | |
| 2 | 01010-81225 | BOLT | 1005- | |
| 3 | 01643-31232 | WASHER | 1005- | |
| 4 | (702-16-01270) | PILOT VALVE | 1005- | |
| 5 | 01010-81030 | BOLT | 1005- | |
| 6 | 01643-31032 | WASHER | 1005- | |
| 7 | 09304-00835 | KNOB | 1005- | |
| 8 | 8206-43-5111 | LEVER | 1005- | |
| 9 | 01582-11411 | NUT | 1005- | |
| 10 | 07102-20225 | HOSE | 1005- | |
| 11 | 07102-20225 | HOSE | 1005- | |
| 12 | 07102-20222 | HOSE | 1005- | |
| 13 | 20N-62-31250 | NIPPLE | 1005- | |
| 14 | 07000-02011 | O-RING | 1005- | |
| 15 | 04434-53212 | CLIP | 1005- | |
| 16 | 01010-81225 | BOLT | 1005- | |
| 17 | 01643-31232 | WASHER | 1005- | |
| 18 | 8242-62-2190 | TUBE | 1005- | |
| 19 | 07102-20216 | HOSE | 1005- | |
| 20 | 07102-20219 | HOSE | 1005- | |
| 21 | 07102-20222 | HOSE | 1005- | |
| 22 | 07283-31529 | CLIP | 1005- | |
| 23 | 01596-00807 | NUT | 1005- | |
| 24 | 01643-30823 | WASHER | 1005- | |
| 25 | 04434-53212 | CLIP | 1005- | |
| 26 | 01010-81225 | BOLT | 1005- | |
| 27 | 01643-31232 | WASHER | 1005- | |
| 28 | 08034-00519 | BAND | 1005- |
