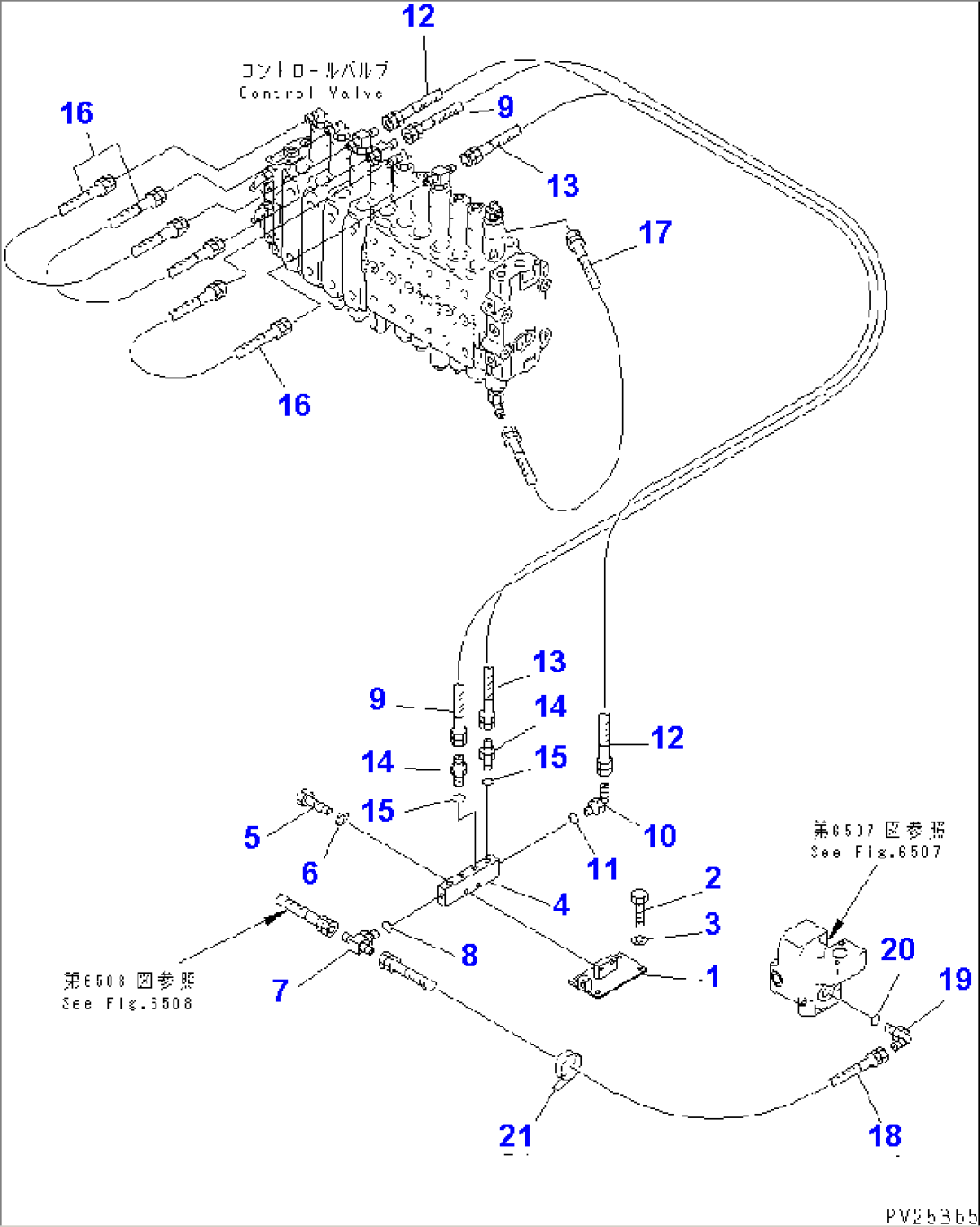

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8233-62-3360 | BRACKET | 1002- | |
| 2 | 01010-81020 | BOLT | 1002- | |
| 3 | 01643-31032 | WASHER | 1002- | |
| 4 | 8232-62-1120 | BLOCK | 1002- | |
| 5 | 01010-81045 | BOLT | 1002- | |
| 6 | 01643-31032 | WASHER | 1002- | |
| 7 | 203-62-58440 | TEE | 1002- | |
| 8 | 07002-11423 | O-RING | 1002- | |
| 9 | 07102-20212 | HOSE | 1002- | |
| 10 | 07235-10210 | ELBOW | 1002- | |
| 11 | 07002-11423 | O-RING | 1002- | |
| 12 | 07102-20212 | HOSE | 1002- | |
| 13 | 07102-20209 | HOSE | 1002- | |
| 14 | 07230-20210 | UNION | 1002- | |
| 15 | 07002-11423 | O-RING | 1002- | |
| 16 | 07102-20203 | HOSE | 1002- | |
| 17 | 07102-20208 | HOSE | 1002- | |
| 18 | 07102-20210 | HOSE | 1002- | |
| 19 | 20N-63-66190 | ELBOW | 1002- | |
| 20 | 07002-02034 | O-RING | 1002- | |
| 21 | 08034-00536 | BAND | 1002- |
