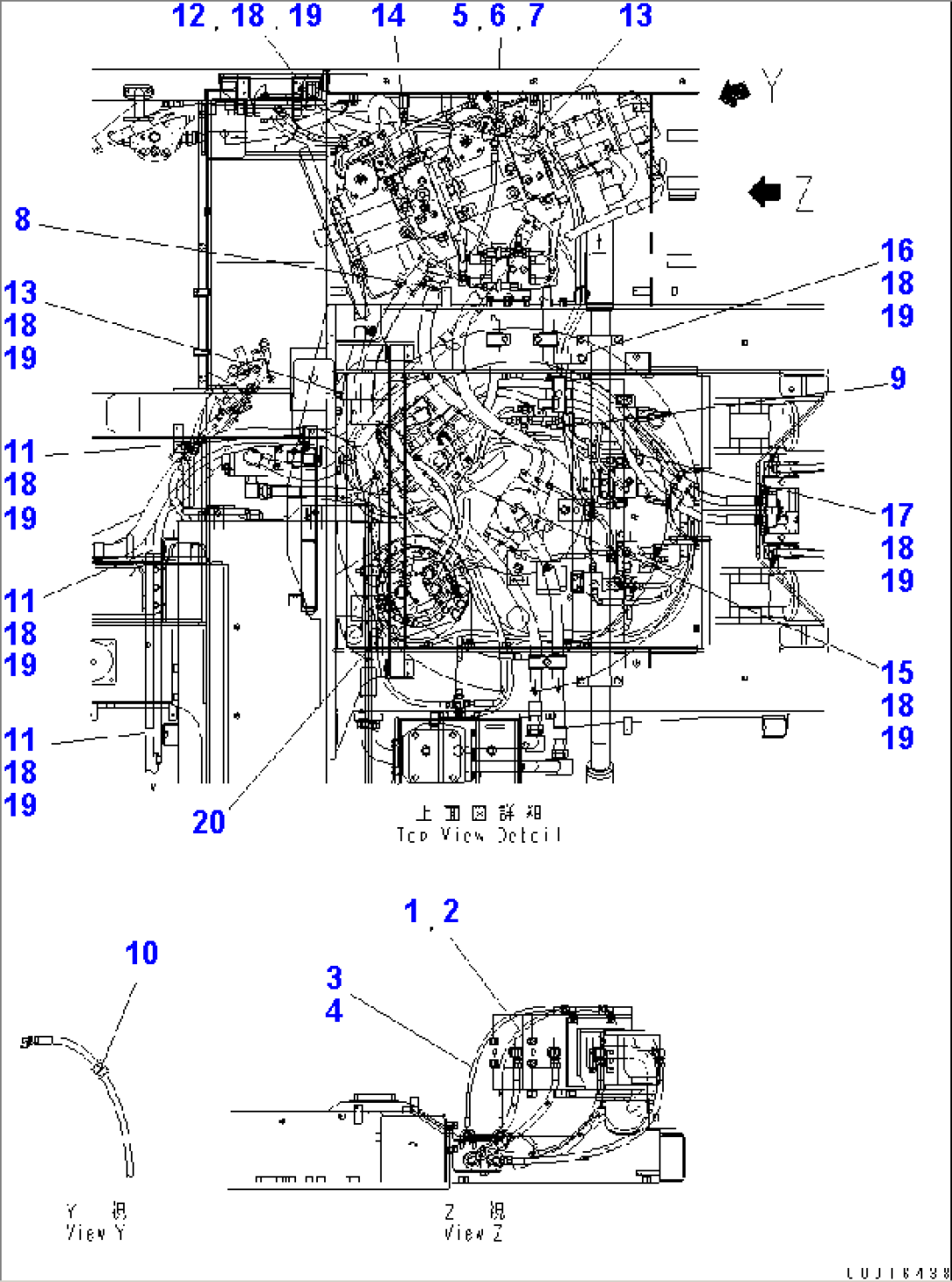

| Item | Part No. | Part Name | Qty | Serial No. |
| 14S-62-22430 | HOSE ASS'Y | 1501- | ||
| 1 | \6\ | HOSE | 1501- | |
| 2 | 08210-01204 | SPIRAL TUBE | 1501- | |
| 14S-62-22420 | HOSE ASS'Y | 1501- | ||
| 3 | \6\ | HOSE, 800MM | 1501- | |
| 4 | 08210-01207 | SPIRAL TUBE | 1501- | |
| 5 | 21W-62-43980 | ELBOW | 1501- | |
| 6 | 07000-12011 | O-RING | 1501- | |
| 7 | 02896-11008 | O-RING | 1501- | |
| 8 | 08034-40521 | BAND | 1507- | |
| 9 | 08034-20519 | BAND | 1501- | |
| 10 | 08034-20823 | BAND | 1501- | |
| 11 | 21T-06-11950 | CLIP | 1501- | |
| 12 | 419-09-11150 | CLIP | 1501- | |
| 13 | 155-61-15350 | CLIP | 1501- | |
| 14 | 04435-51612 | CLIP | 1507- | |
| 15 | 281-01-13180 | CLIP | 1501- | |
| 16 | 23S-62-25850 | CLIP | 1501- | |
| 17 | 04434-51812 | CLIP | 1501- | |
| 18 | 01010-81020 | BOLT | 1501- | |
| 19 | 01643-31032 | WASHER | 1501- | |
| 20 | 04434-51512 | CLIP | 1501- |
