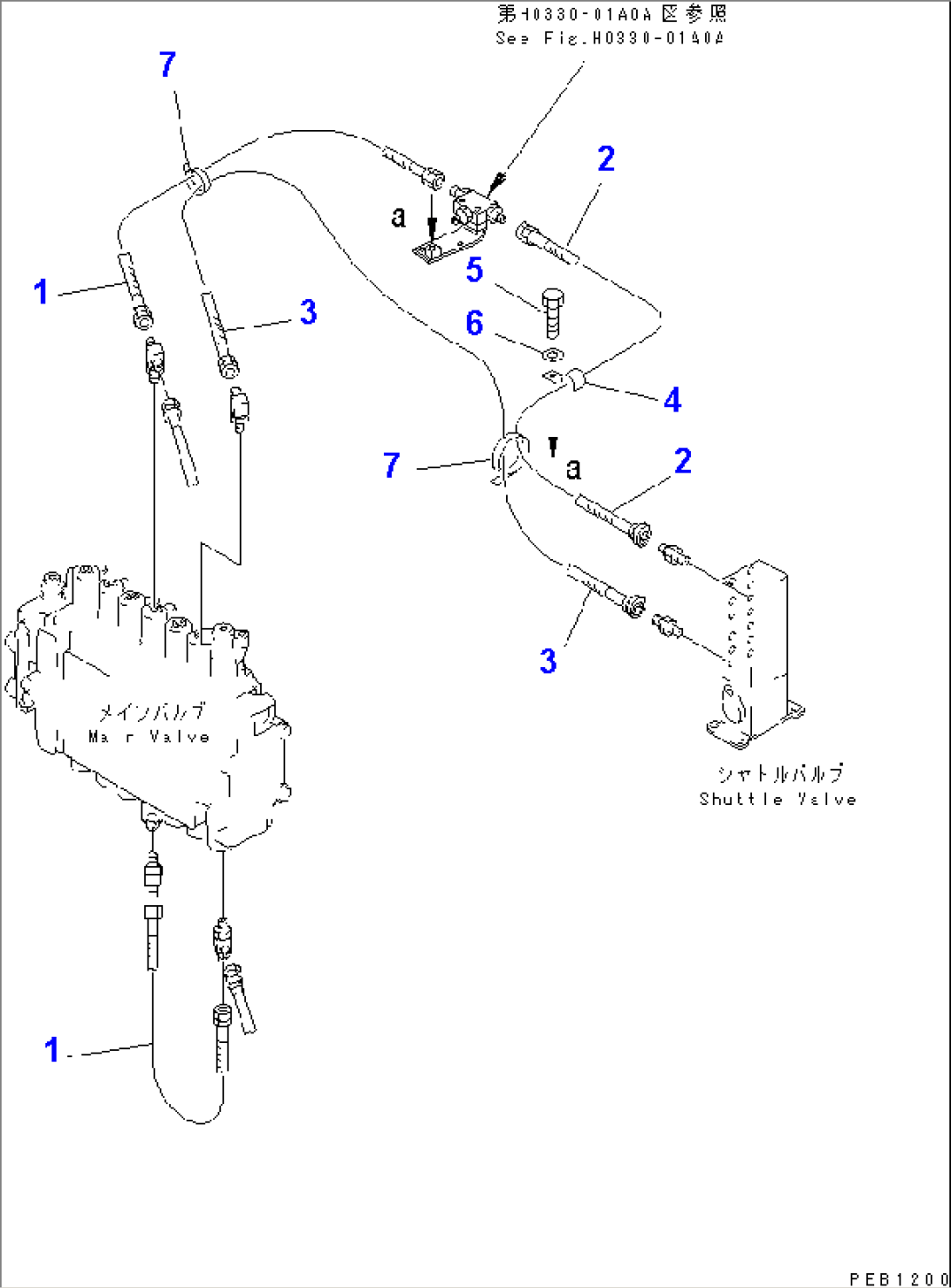

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-23160 | HOSE | 84620-86929 | |
| 2 | 20Y-62-22680 | HOSE¤ 520MM | 84620-86929 | |
| 3 | 20Y-62-22760 | HOSE¤ 840MM | 84620-86929 | |
| 4 | 04434-51210 | CLIP | 84620-@ | |
| 5 | 01010-51020 | BOLT | 84620-@ | |
| 6 | 01643-31032 | WASHER | 84620-@ | |
| 7 | 08034-00519 | BAND | 84620-@ |
