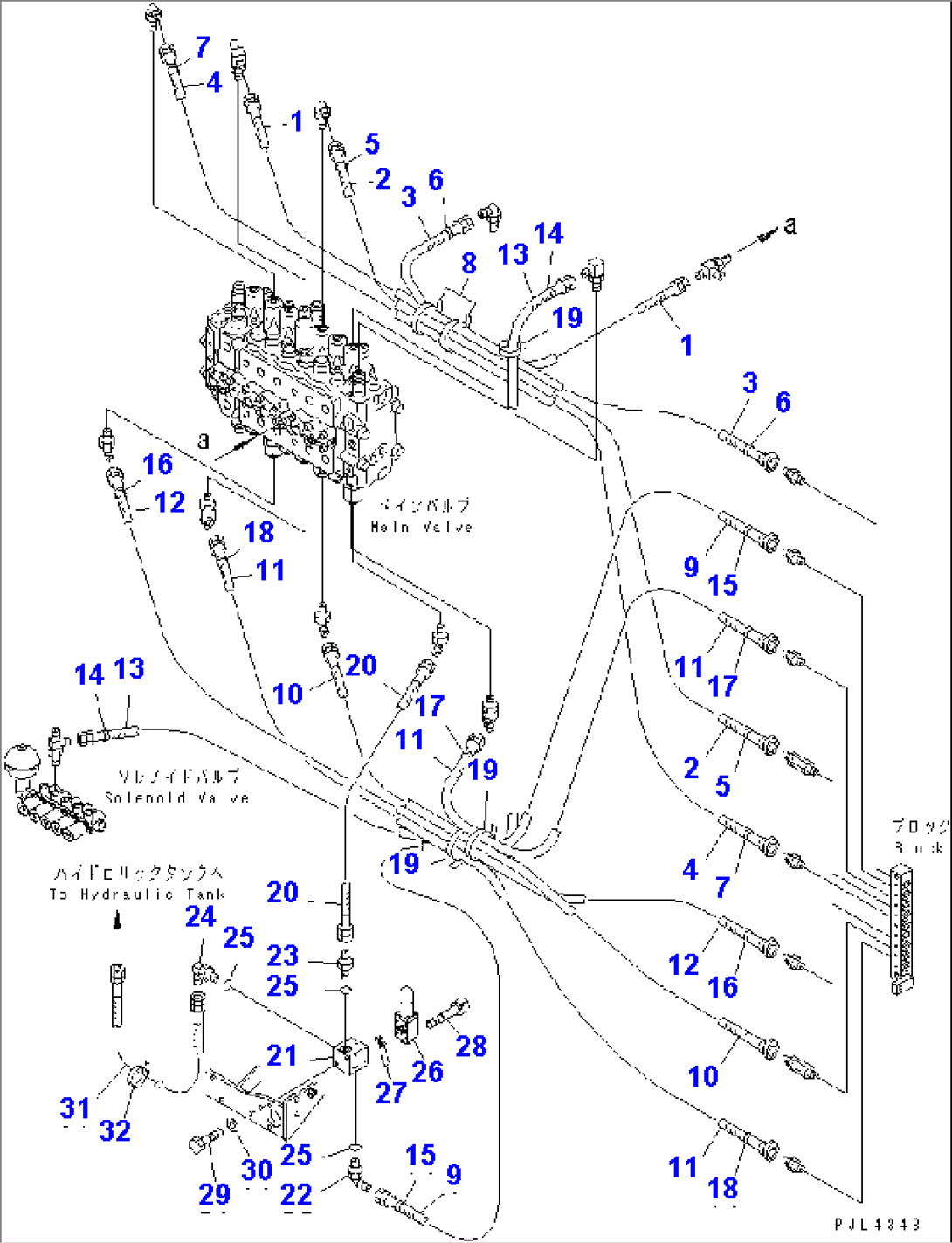

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 203-62-52310 | HOSE, 700MM | 10239-@ | |
| 2 | 203-62-62631 | HOSE, 450MM | 10239-10246 | |
| 3 | 20Y-62-22671 | HOSE, 355MM | 10239-10246 | |
| 4 | 20Y-62-22781 | HOSE, 650MM | 10239-10246 | |
| 5 | 20Y-62-22790 | BAND, RED | 10239-@ | |
| 6 | 20Y-62-22830 | BAND, WHITE | 10239-@ | |
| 7 | 20Y-62-22840 | BAND, BLACK | 10239-@ | |
| 8 | 08034-00536 | BAND | 10239-@ | |
| 9 | 20Y-62-23851 | HOSE, 950MM | 10239-10246 | |
| 10 | 20Y-62-22661 | HOSE, 470MM | 10239-10246 | |
| 11 | 20Y-62-22721 | HOSE, 535MM | 10239-10246 | |
| 12 | 20Y-62-23831 | HOSE, 800MM | 10239-10246 | |
| 13 | 203-62-52280 | HOSE, 900MM | 10239-@ | |
| 14 | 20Y-62-22810 | BAND, YELLOW | 10239-@ | |
| 15 | 20Y-62-22820 | BAND, BLUE | 10239-@ | |
| 16 | 20Y-62-22830 | BAND, WHITE | 10239-@ | |
| 17 | 20Y-62-22850 | BAND, GREEN | 10239-@ | |
| 18 | 20Y-62-22860 | BAND, BROWN | 10239-@ | |
| 19 | 08034-00536 | BAND | 10239-@ | |
| 20 | 203-62-52390 | HOSE | 10239-@ | |
| 21 | 20Y-62-23630 | BLOCK | 10239-@ | |
| 22 | 07235-10210 | ELBOW | 10239-@ | |
| 23 | 07230-20210 | UNION | 10239-@ | |
| 24 | 07235-10311 | ELBOW | 10239-@ | |
| 25 | 07002-01423 | O-RING | 10239-@ | |
| 26 | 20Y-60-21700 | VALVE ASS'Y | 10239-@ | |
| 27 | 205-62-74580 | O-RING | 10239-@ | |
| 28 | 01252-40550 | BOLT | 10239-@ | |
| 29 | 01010-81035 | BOLT | 10239-@ | |
| 30 | 01643-31232 | WASHER | 10239-@ | |
| 31 | 07102-20314 | HOSE | 10239-@ | |
| 32 | 08034-00536 | BAND | 10239-@ |
