| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04435-51510 | CLIP | 1001- | |
| 2 | 01010-81020 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 20Y-62-22271 | ELBOW | 1001- | |
| 5 | 201-60-11390 | O-RING | 1001- | |
| 6 | 20Y-62-19560 | O-RING | 1001- | |
| 7 | 07002-11423 | O-RING | 1001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85px 15 s/n 1001 up
- Hydraulic system
- P.p.c. piping clamp (with ripper)
Поиск по каталогу

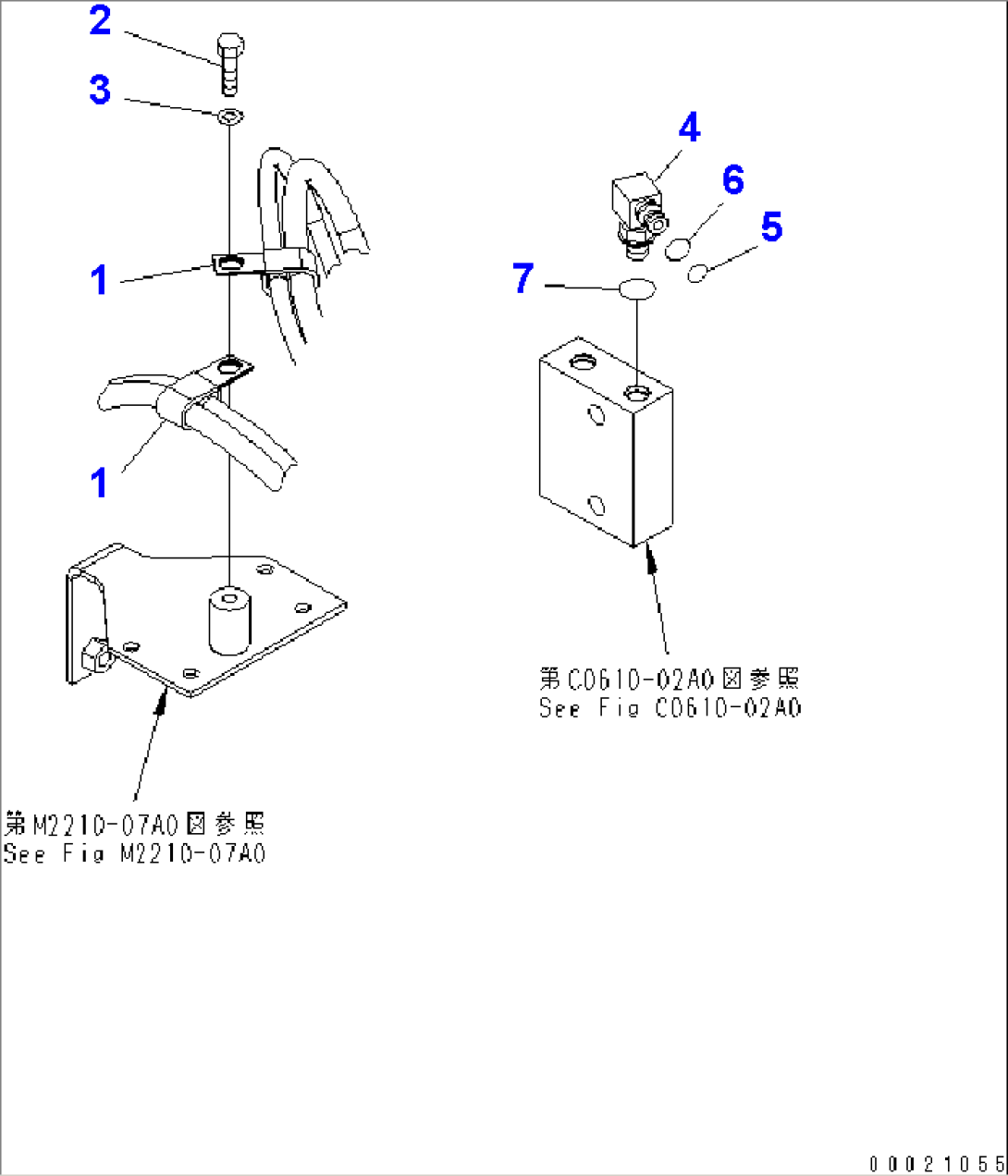

P.P.C. PIPING CLAMP (WITH RIPPER)
