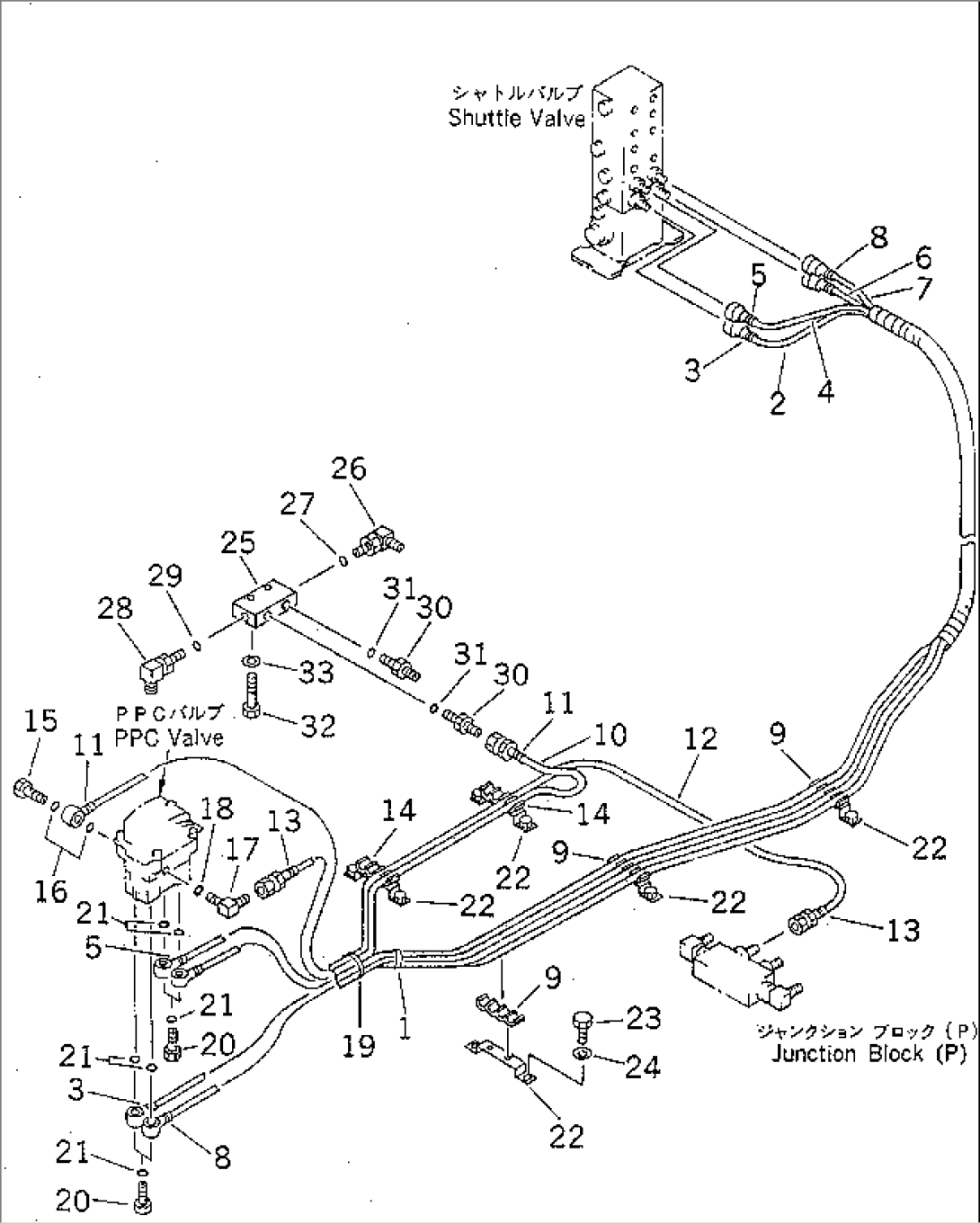

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08034-00536 | BAND | 10001-@ | |
| 2 | 20Y-62-22560 | HOSE, 2700MM | 10001-@ | |
| 3 | 20Y-62-22850 | BAND, GREEN | 10001-@ | |
| 4 | 20Y-62-22570 | HOSE, 2680MM | 10001-@ | |
| 5 | 20Y-62-22820 | BAND, BLUE | 10001-@ | |
| 6 | 20Y-62-22580 | HOSE, 2620MM | 10001-@ | |
| 7 | 20Y-62-22560 | HOSE, 2700MM | 10001-@ | |
| 8 | 20Y-62-22790 | BAND, RED | 10001-@ | |
| 9 | 20Y-62-22170 | CLAMP | 10001-@ | |
| 10 | 20Y-62-22870 | HOSE, 1100MM | 10001-10080 | |
| 11 | 20Y-62-22790 | BAND, RED | 10001-@ | |
| 12 | 20Y-62-22880 | HOSE, 980MM | 10001-10080 | |
| 13 | 20Y-62-22820 | BAND, BLUE | 10001-@ | |
| 14 | 20Y-62-22170 | CLAMP | 10001-@ | |
| 15 | 702-16-53240 | PLUG | 10001-@ | |
| 16 | 07000-02018 | O-RING | 10001-@ | |
| 17 | 207-62-33920 | ELBOW | 10001-10080 | |
| 18 | 07002-01423 | O-RING | 10001-@ | |
| 19 | 08034-00519 | BAND | 10001-@ | |
| 20 | 20Y-62-18890 | BOLT, JOINT | 10001-@ | |
| 21 | 07000-02015 | O-RING | 10001-@ | |
| 22 | 20Y-62-22180 | CLAMP | 10001-10080 | |
| 23 | 01010-51016 | BOLT | 10001-@ | |
| 24 | 01643-31032 | WASHER | 10001-@ | |
| 25 | 20Y-62-15831 | BLOCK | 10001-@ | |
| 26 | 207-62-33920 | ELBOW | 10001-@ | |
| 27 | 07002-01423 | O-RING | 10001-@ | |
| 28 | 207-62-33920 | ELBOW | 10001-10080 | |
| 29 | 07002-01423 | O-RING | 10001-@ | |
| 30 | 205-62-55270 | NIPPLE | 10001-10080 | |
| 31 | 07002-01423 | O-RING | 10001-@ | |
| 32 | 01010-51045 | BOLT | 10001-@ | |
| 33 | 01643-31032 | WASHER | 10001-@ |
