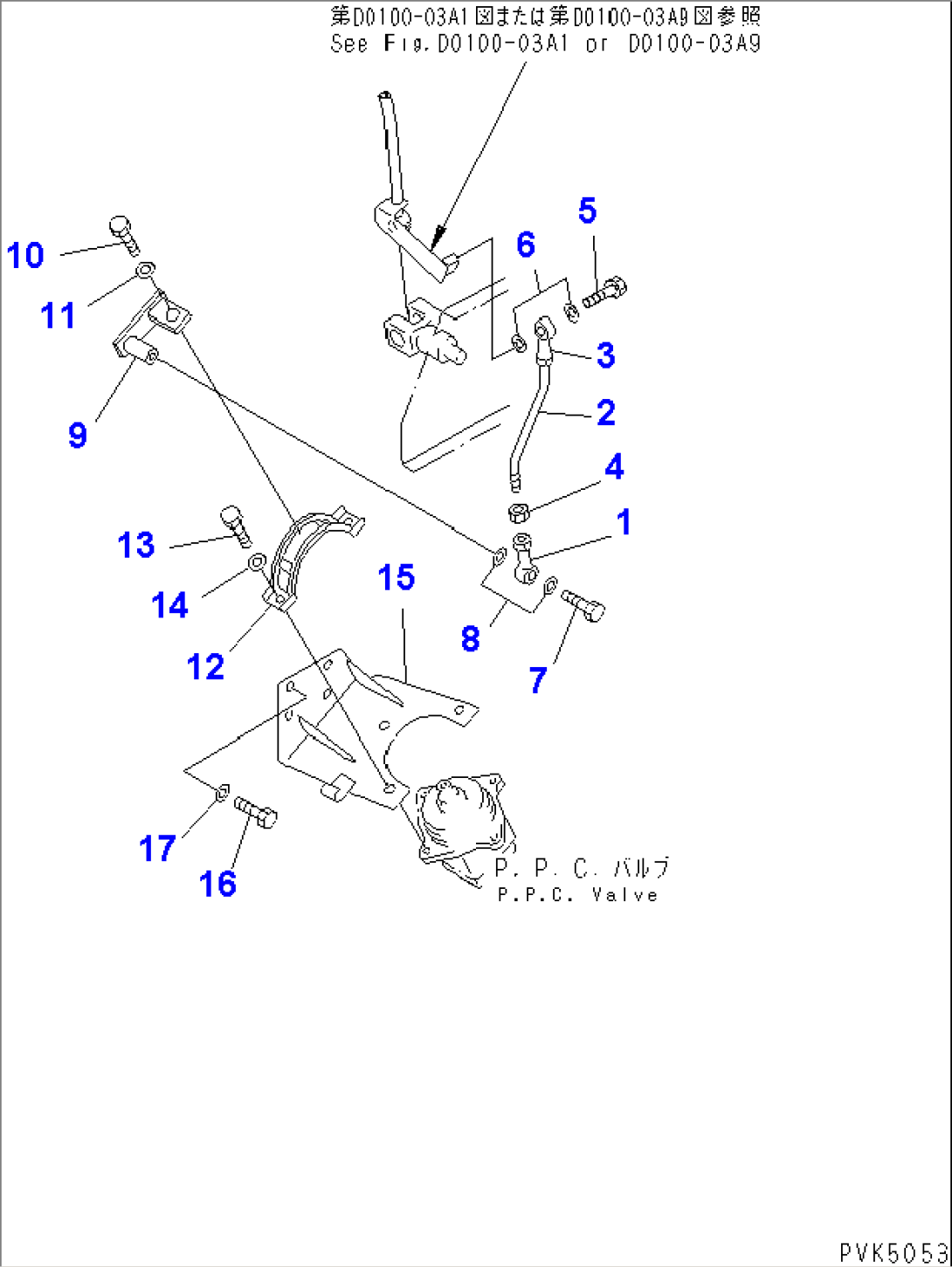

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04250-80847 | END | 62454- | |
| 2 | 104-43-38170 | ROD | 62454- | |
| 3 | 04250-80847 | END | 62454- | |
| 4 | 01580-10806 | NUT | 62454- | |
| 5 | 01010-80830 | BOLT | 62454- | |
| 6 | 04254-10823 | SPACER | 62454- | |
| 7 | 01010-80830 | BOLT | 62454- | |
| 8 | 04254-10823 | SPACER | 62454- | |
| 9 | 104-43-38180 | LEVER | 62454- | |
| 10 | 01050-51420 | BOLT | 62454- | |
| 11 | 01643-31445 | WASHER | 62454- | |
| 12 | 104-43-38191 | GUIDE | 62454- | |
| 13 | 01010-80825 | BOLT | 62454- | |
| 14 | 01643-30823 | WASHER | 62454- | |
| 15 | 104-43-38211 | BRACKET | 62454- | |
| 16 | 01010-81020 | BOLT | 62454- | |
| 17 | 01643-31032 | WASHER | 62454- |
