| Item | Part No. | Part Name | Qty | Serial No. |
| (702-16-01992) | PILOT VALVE | B40001- | ||

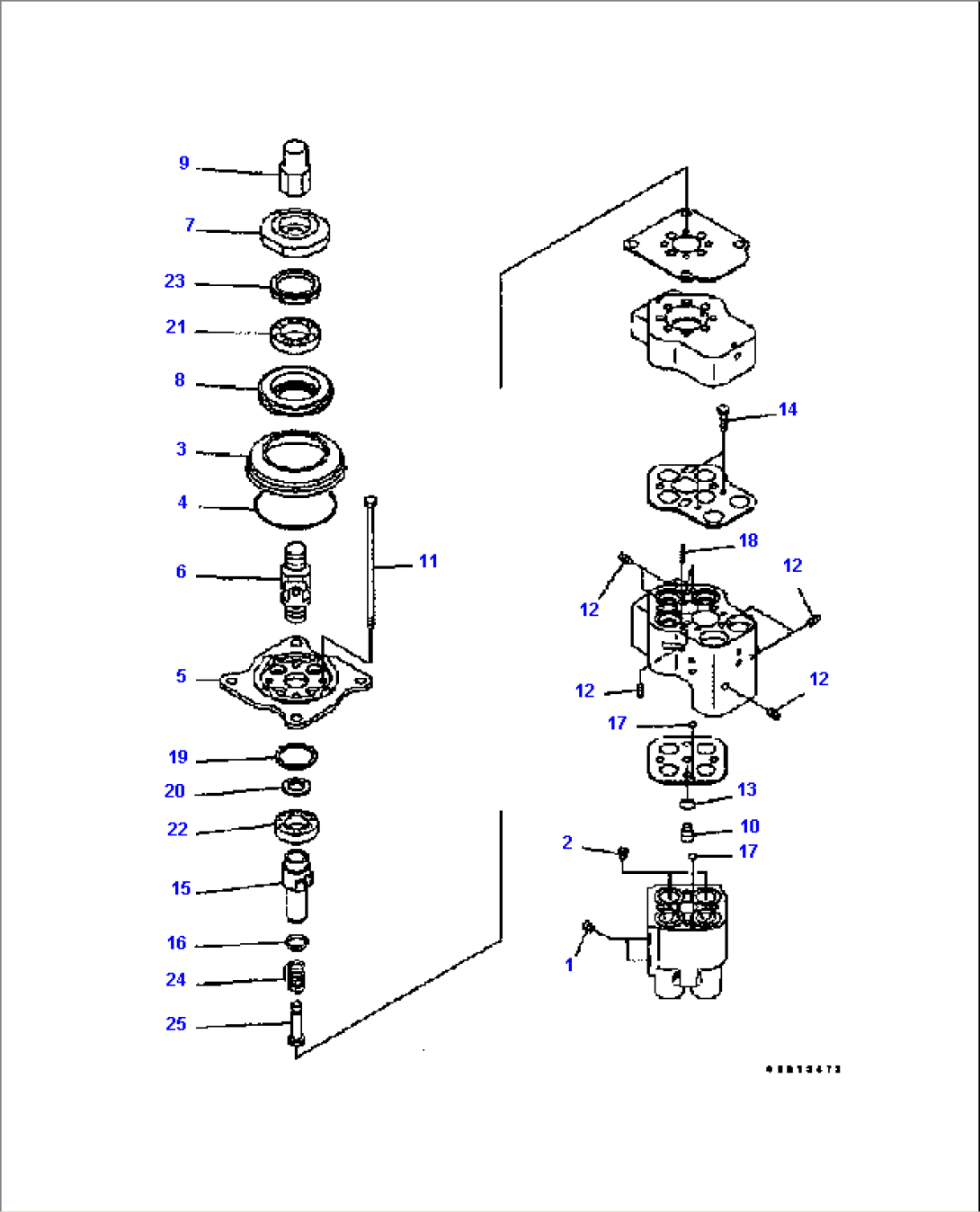

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS. Y1670-01A0 TO Y1670 04A0. | ||||
| 1 | 708-18-12570 | PLUG | B40001- | |
| 2 | \6\ | PLUG | B40001- | |
| 3 | \6\ | BOOT | B40001- | |
| 4 | 07000-12070 | O-RING | B40001- | |
| 5 | \6\ | PLATE | B40001- | |
| 6 | 702-16-51240 | JOINT,UNIVERSAL | B40001- | |
| 7 | \6\ | PLUG | B40001- | |
| 8 | \6\ | DISK | B40001- | |
| 9 | \6\ | CAP | B40001- | |
| 10 | 702-16-55520 | ORIFICE | B40001- | |
| 11 | 702-16-59680 | BOLT | B40001- | |
| 12 | \6\ | SCREW | B40001- | |
| 13 | 702-16-55610 | O-RING | B40001- | |
| 14 | 01252-60410 | BOLT | B40001- | |
| 15 | \6\ | SHAFT | B40001- | |
| \6\ | SHAFT | B40001- | ||
| 16 | \6\ | BUSHING | B40001- | |
| 17 | 700-80-62380 | O-RING | B40001- | |
| 18 | 708-7R-13540 | PIN | B40001- | |
| 19 | \6\ | WASHER | B40001- | |
| 20 | \6\ | WASHER | B40001- | |
| 21 | \6\ | BEARING | B40001- | |
| 22 | \6\ | BEARING | B40001- | |
| 23 | \6\ | SEAL | B40001- | |
| 24 | \6\ | SPRING | B40001- | |
| 25 | \6\ | BOSS | B40001- |
