| Item | Part No. | Part Name | Qty | Serial No. |

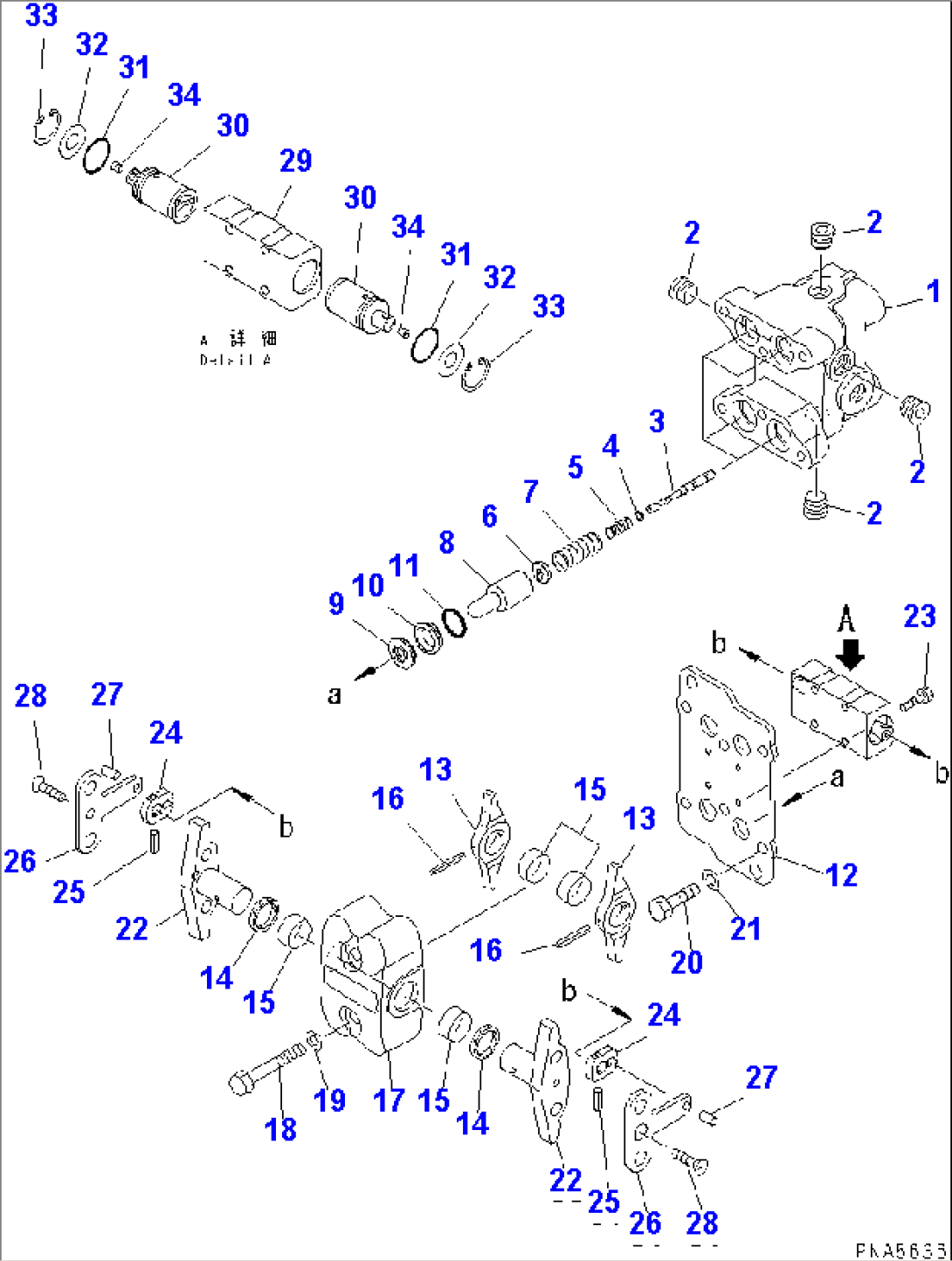

| 702-16-01220 | PILOT VALVE | 1002- | ||
| 1 | \6\ | BODY,VALVE | 1002- | |
| 2 | \6\ | PLUG | 1002- | |
| 3 | \6\ | VALVE | 1002- | |
| 4 | 702-16-51140 | SHIM, 0.30MM | 1002- | |
| 5 | 702-16-53420 | SPRING | 1002- | |
| 6 | 702-16-53140 | RETAINER | 1002- | |
| 7 | 702-16-54420 | SPRING | 1002- | |
| 8 | 702-16-53170 | PISTON | 1002- | |
| 9 | 702-16-51270 | SEAL | 1002- | |
| 10 | 702-16-54170 | COLLAR | 1002- | |
| 11 | 07000-02020 | O-RING | 1002- | |
| 12 | 702-16-54460 | PLATE | 1002- | |
| 13 | 702-16-54121 | LEVER | 1002- | |
| 14 | 702-16-54280 | SEAL,DUST | 1002- | |
| 15 | 702-16-54430 | BUSHING | 1002- | |
| 16 | 04025-00432 | PIN,SPRING | 1002- | |
| 17 | 702-16-54310 | CASE | 1002- | |
| 18 | 01010-50855 | BOLT | 1002- | |
| 19 | 01643-30823 | WASHER | 1002- | |
| 20 | 01010-50816 | BOLT | 1002- | |
| 21 | 702-16-54351 | WASHER, 1.00MM | 1002- | |
| 21 | 702-16-54341 | WASHER, 1.30MM | 1002- | |
| 21 | 702-16-54331 | WASHER, 1.60MM | 1002- | |
| 22 | 702-16-54450 | SHAFT | 1002- | |
| 23 | 01252-30525 | BOLT | 1002- | |
| 24 | 702-16-54510 | PLATE | 1002- | |
| 25 | 04025-00420 | PIN,SPRING | 1002- | |
| 26 | 702-16-54520 | LEVER | 1002- | |
| 27 | 702-16-54530 | PIN | 1002- | |
| 28 | 01224-40612 | SCREW | 1002- | |
| 702-16-54500 | DAMPER ASS'Y | 1002- | ||
| 29 | \6\ | CASE | 1002- | |
| 30 | \6\ | PISTON | 1002- | |
| 31 | \6\ | O-RING | 1002- | |
| 32 | \6\ | WASHER | 1002- | |
| 33 | \6\ | RING | 1002- | |
| 34 | \6\ | SCREW | 1002- |
