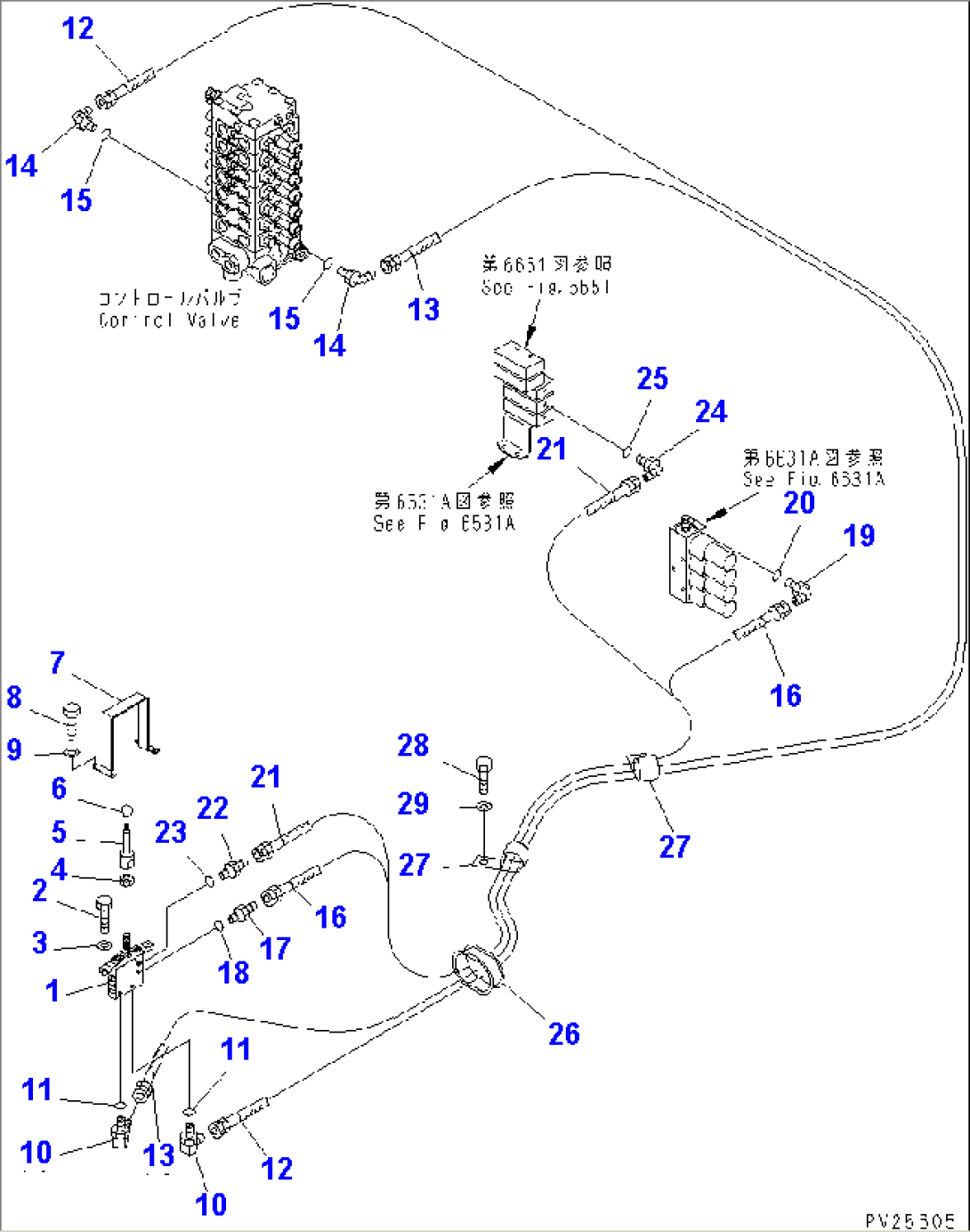

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-01270 | PILOT VALVE | 1002- | |
| 2 | 01010-81025 | BOLT | 1002- | |
| 3 | 01643-31032 | WASHER | 1002- | |
| 4 | 01582-01411 | NUT | 1002- | |
| 5 | 8206-43-5111 | LEVER | 1002- | |
| 6 | 09304-00835 | KNOB | 1002- | |
| 7 | 8206-54-5110 | GUARD | 1002- | |
| 8 | 01010-80820 | BOLT | 1002- | |
| 9 | 01643-30823 | WASHER | 1002- | |
| 10 | 21U-62-24140 | ELBOW | 1002- | |
| 11 | 07000-02011 | O-RING | 1002- | |
| 12 | 07102-20220 | HOSE | 1101- | |
| 13 | 07102-20218 | HOSE | 1101- | |
| 14 | 07235-10210 | ELBOW | 1002- | |
| 15 | 07002-01423 | O-RING | 1002- | |
| 16 | 07102-20317 | HOSE | 1101- | |
| 17 | 209-62-55440 | UNION | 1101- | |
| 18 | 07000-12011 | O-RING | 1101- | |
| 19 | 07235-10315 | ELBOW | 1002- | |
| 20 | 07002-02034 | O-RING | 1002- | |
| 21 | 07102-20215 | HOSE | 1101- | |
| 22 | 20N-62-31250 | NIPPLE | 1101- | |
| 23 | 07000-12011 | O-RING | 1101- | |
| 24 | 07235-10210 | ELBOW | 1002- | |
| 25 | 07002-01423 | O-RING | 1002- | |
| 26 | 21W-62-22510 | GROMMET | 1002- | |
| 27 | 04434-53412 | CLIP | 1002- | |
| 28 | 01010-51220 | BOLT | 1002- | |
| 29 | 01643-31232 | WASHER | 1002- |
