| Item | Part No. | Part Name | Qty | Serial No. |

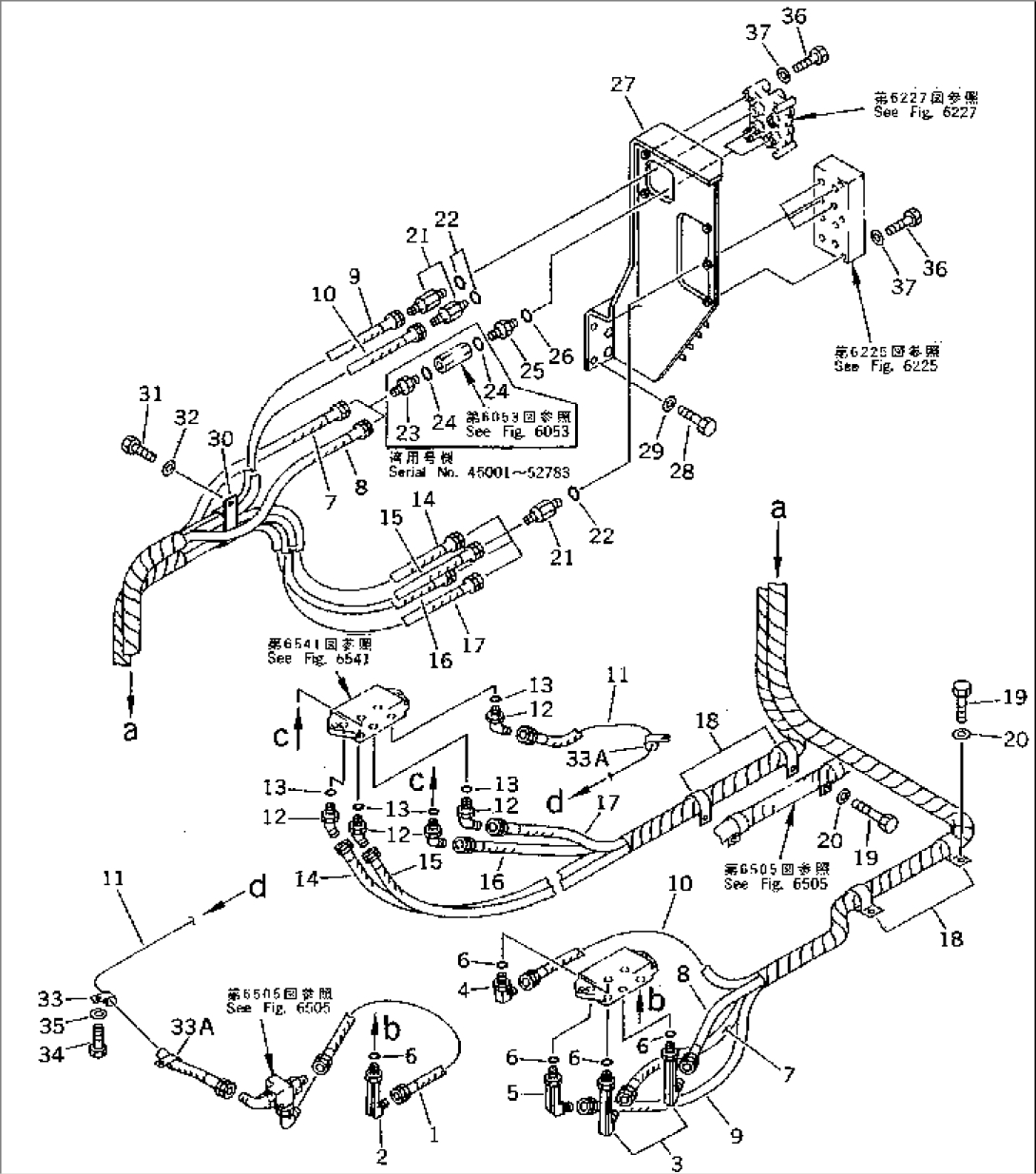

| G-1 | (\8\20Y-62-X1401) | PIPING GROUP | 45001- | |
| ==================== | ||||
| 1 | 07102-20306 | HOSE | 45001- | |
| 2 | 20R-62-22260 | ELBOW | 45001- | |
| 3 | 20Y-62-16330 | ELBOW | 45001- | |
| 4 | 20Y-62-16340 | ELBOW | 45001- | |
| 5 | 20Y-62-16320 | ELBOW | 45001- | |
| 6 | 07002-02034 | O-RING | 45001- | |
| 7 | 207-62-56140 | HOSE,(YELLOW) | 52784- | |
| 20Y-62-16250 | HOSE,(YELLOW) | 45001-52783 | ||
| 8 | 207-62-56140 | HOSE,(WHITE) | 52784- | |
| 07102-20321 | HOSE,(WHITE) | 45001-52783 | ||
| 9 | 07102-20321 | HOSE,(BROWN) | 45001- | |
| 10 | 20Y-62-16250 | HOSE,(BLACK) | 45001- | |
| 11 | 07102-20311 | HOSE | 45001- | |
| 12 | 07236-10315 | ELBOW | 45001- | |
| 13 | 07002-02034 | O-RING | 45001- | |
| 14 | 20Y-62-16260 | HOSE,(WHITE) | 45001- | |
| 15 | 07102-20318 | HOSE,(YELLOW) | 45001- | |
| 16 | 07102-20318 | HOSE,(BLACK) | 45001- | |
| 17 | 20Y-62-16260 | HOSE,(BROWN) | 45001- | |
| ==================== | ||||
| 18 | 20Y-62-15951 | CLIP | 45001- | |
| 19 | 01010-51225 | BOLT | 45001- | |
| 20 | 01643-31232 | WASHER | 45001- | |
| 21 | 207-62-33950 | NIPPLE | 45001- | |
| 22 | 07002-01423 | O-RING | 45001- | |
| 23 | 07230-20315 | UNION | 45001-52783 | |
| 24 | 07002-02034 | O-RING | 45001-52783 | |
| 25 | 207-62-33950 | NIPPLE | 52784- | |
| 20Y-62-17450 | NIPPLE | 45001-52783 | ||
| 26 | 07002-01423 | O-RING | 45001- | |
| 27 | 20Y-62-15631 | BRACKET | 45001- | |
| 28 | 01010-51235 | BOLT | 45001- | |
| 29 | 01643-31232 | WASHER | 45001- | |
| 30 | 20Y-62-15971 | CLIP | 45001- | |
| 31 | 01010-51225 | BOLT | 45001- | |
| 32 | 01643-31232 | WASHER | 45001- | |
| 33 | 08035-02512 | CLIP | 49318- | |
| 08036-01814 | CLIP | 45001-49317 | ||
| 33A | 08036-01814 | CLIP | 45001- | |
| 34 | 01010-51225 | BOLT | 45001- | |
| 35 | 01643-31232 | WASHER | 45001- | |
| 36 | 01010-51075 | BOLT | 45001- | |
| 37 | 01643-31032 | WASHER | 45001- |
