| Item | Part No. | Part Name | Qty | Serial No. |

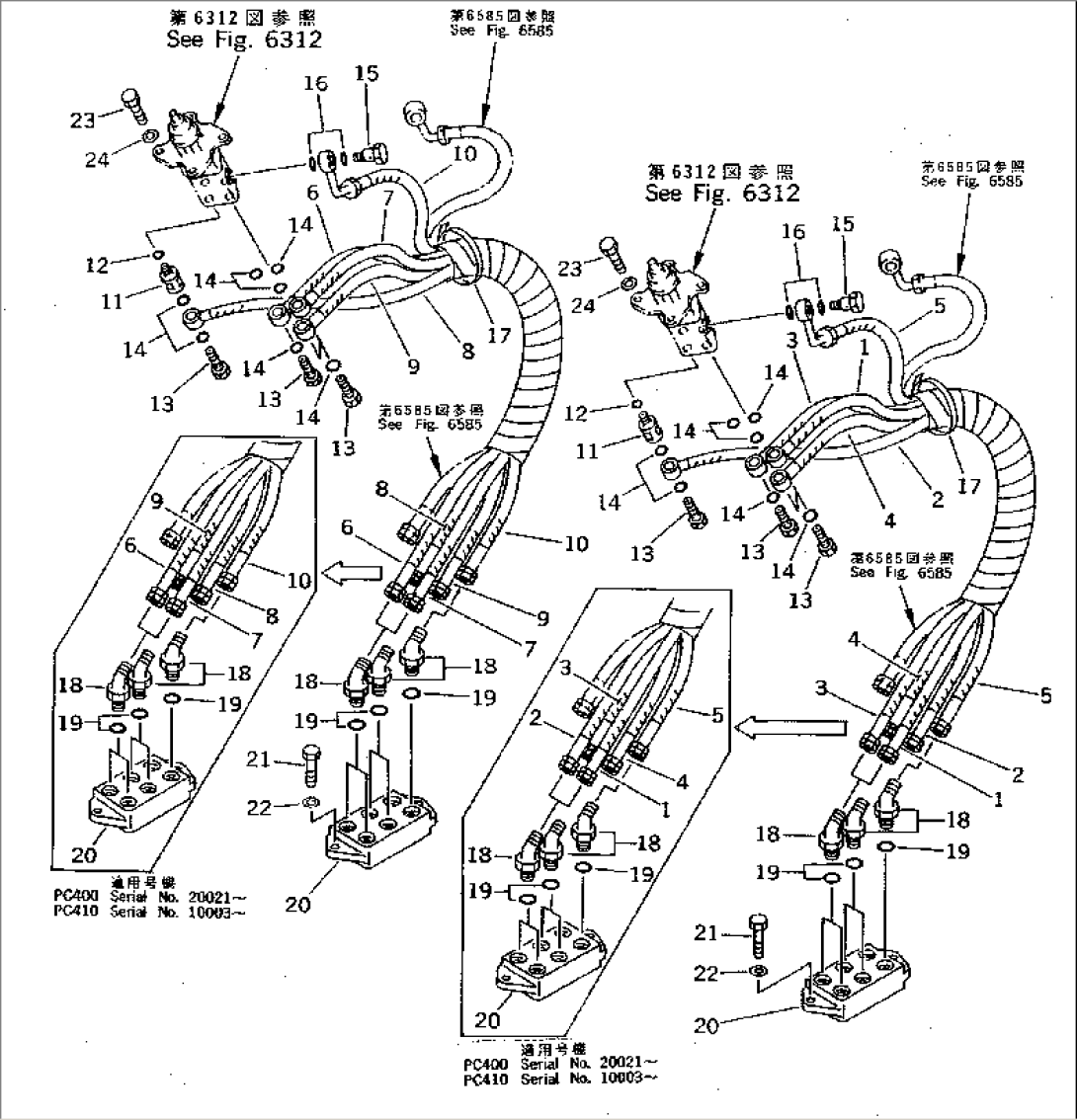

| G-1 | (\8\207-62-X1400) | PIPING GROUP | 20001- | |
| ==================== | ||||
| 1 | 20Y-62-16161 | HOSE, 725MM,(YELLOW) | 20001- | |
| 2 | 20Y-62-16151 | HOSE, 750MM,(WHITE) | 20001- | |
| 3 | 20Y-62-16151 | HOSE, 750MM,(BLACK) | 20021- | |
| 3 | \0\20Y-62-16151 | HOSE, 750MM,(BROWN) | 20001-20020 | |
| 4 | 20Y-62-16161 | HOSE, 725MM,(BROWN) | 20021- | |
| 4 | \0\20Y-62-16161 | HOSE, 725MM,(BLACK) | 20001-20020 | |
| 5 | 20Y-62-16131 | HOSE, 670MM,(RED) | 20001- | |
| 6 | 20Y-62-16151 | HOSE, 750MM,(WHITE) | 20001- | |
| 7 | 20Y-62-16161 | HOSE, 725MM,(YELLOW) | 20001- | |
| 8 | 20Y-62-16151 | HOSE, 750MM,(BROWN) | 20021- | |
| 8 | \0\20Y-62-16151 | HOSE, 750MM,(BLACK) | 20001-20020 | |
| 9 | 20Y-62-16161 | HOSE, 725MM,(BLACK) | 20021- | |
| 9 | \0\20Y-62-16161 | HOSE, 725MM,(BROWN) | 20001-20020 | |
| 10 | 20Y-62-16131 | HOSE, 670MM,(RED) | 20001- | |
| 11 | 20Y-62-16180 | NIPPLE | 20001- | |
| 12 | 07000-02015 | O-RING | 20001- | |
| 13 | 20Y-62-16170 | BOLT,EYE | 20001- | |
| 14 | 07000-02015 | O-RING | 20001- | |
| 15 | 706-46-56290 | BOLT,EYE | 20001- | |
| 16 | 07000-02018 | O-RING | 20001- | |
| 17 | 08034-00823 | BAND | 20001- | |
| 18 | 07236-10315 | ELBOW | 20001- | |
| 19 | 07002-02034 | O-RING | 20001- | |
| 20 | 20Y-62-16221 | BLOCK | 20001- | |
| 21 | 01010-51030 | BOLT | 20001- | |
| 22 | 01643-31032 | WASHER | 20001- | |
| 23 | 01010-50825 | BOLT | 20001- | |
| 24 | 01643-30823 | WASHER | 20001- | |
| ==================== |
