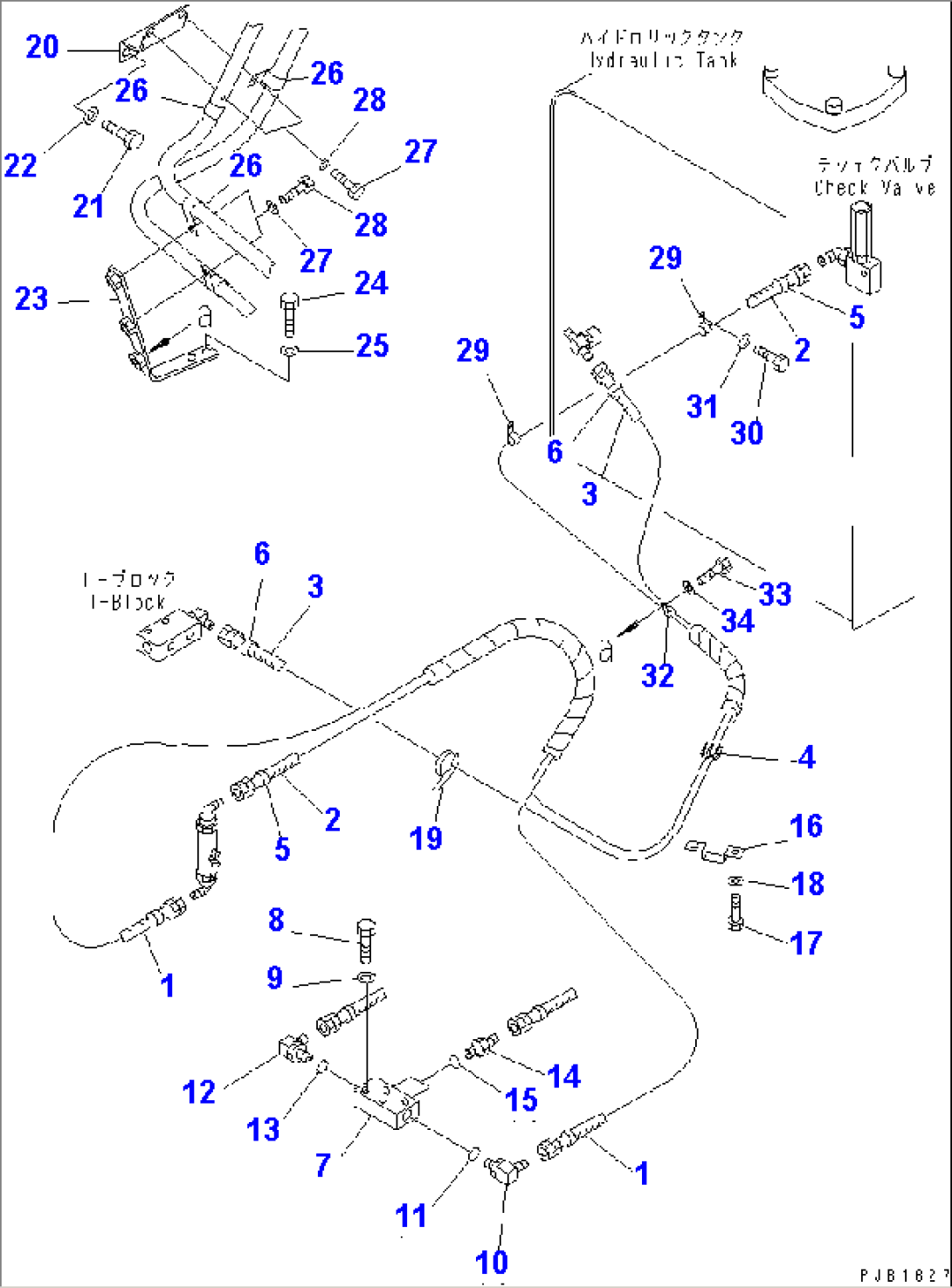

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-22910 | HOSE, 1050MM | 10001-@ | |
| 2 | 203-62-63220 | HOSE, 3400MM | 10001-@ | |
| 3 | 207-62-62880 | HOSE, 1600MM | 10001-@ | |
| 4 | 20Y-62-22190 | CLAMP | 10001-@ | |
| 5 | 20Y-62-22790 | BAND, RED | 10001-@ | |
| 6 | 20Y-62-22820 | BAND, BLUE | 10001-@ | |
| 7 | 20Y-62-22151 | BLOCK | 10001-@ | |
| 8 | 01010-51050 | BOLT | 10001-10337 | |
| 9 | 01643-31032 | WASHER | 10001-@ | |
| 10 | 07235-10315 | ELBOW | 10001-@ | |
| 11 | 07002-02034 | O-RING | 10001-@ | |
| 12 | 207-62-33920 | ELBOW | 10001-@ | |
| 13 | 07002-01423 | O-RING | 10001-@ | |
| 14 | 205-62-55270 | NIPPLE | 10001-@ | |
| 15 | 07002-01423 | O-RING | 10001-@ | |
| 16 | 20Y-62-22210 | BRACKET | 10001-@ | |
| 17 | 01010-51016 | BOLT | 10001-10337 | |
| 18 | 01643-31032 | WASHER | 10001-@ | |
| 19 | 08034-00519 | BAND | 10001-@ | |
| 20 | 207-62-62220 | PLATE | 10001-@ | |
| 21 | 01010-51230 | BOLT | 10001-10337 | |
| 22 | 01643-31232 | WASHER | 10001-@ | |
| 23 | 207-62-62261 | PLATE | 10001-@ | |
| 24 | 01010-51230 | BOLT | 10001-10337 | |
| 25 | 01643-31232 | WASHER | 10001-@ | |
| 26 | 04434-52712 | CLIP | 10001-@ | |
| 27 | 01010-51230 | BOLT | 10001-10337 | |
| 28 | 01643-31232 | WASHER | 10001-@ | |
| 29 | 04434-51512 | CLIP | 10001-@ | |
| 30 | 01010-51225 | BOLT | 10001-10337 | |
| 31 | 01643-31232 | WASHER | 10001-@ | |
| 32 | 04434-51512 | CLIP | 10001-@ | |
| 33 | 01010-51230 | BOLT | 10001-10337 | |
| 34 | 01643-31232 | WASHER | 10001-@ |
