| Item | Part No. | Part Name | Qty | Serial No. |

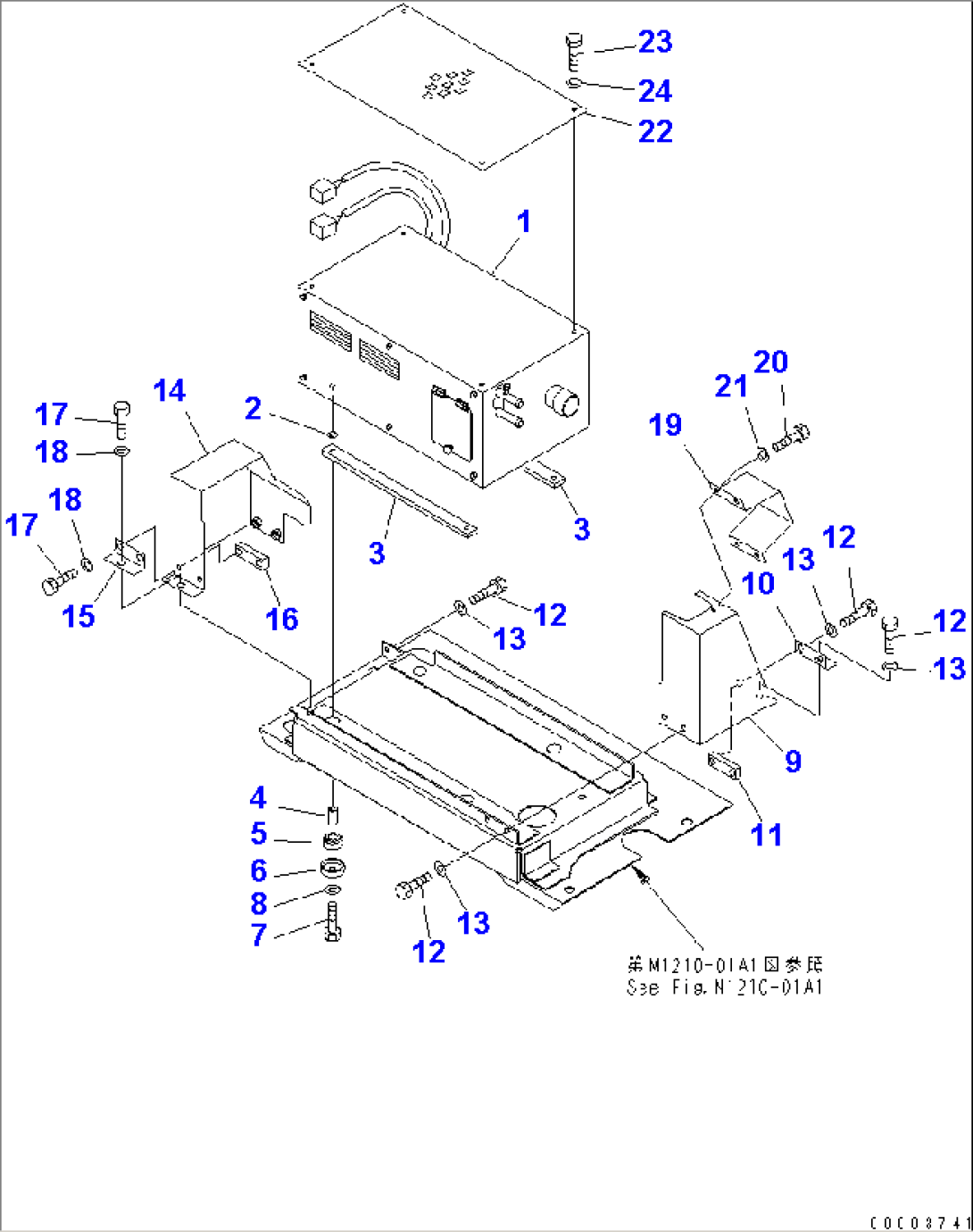

| 1 | (20Y-977-1290) | PRE HEATER ASS'Y | 202230- | |
| 2 | 20Y-54-12550 | COLLAR | 202230- | |
| 3 | 154-01-15120 | CUSHION | 202230- | |
| 4 | 113-03-21170 | SPACER | 202230- | |
| 5 | 195-01-16160 | CUSHION | 202230- | |
| 6 | 195-01-16130 | COVER | 202230- | |
| 7 | 01010-81065 | BOLT | 202230- | |
| 8 | 01643-31032 | WASHER | 202230- | |
| 9 | 20Y-54-21571 | COVER | 203294- | |
| 9 | 20Y-54-21570 | COVER | 202230-203293 | |
| 10 | 20Y-54-24180 | BRACKET | 202230- | |
| 11 | 01573-20208 | SEAT | 202230- | |
| 12 | 01010-81020 | BOLT | 202230- | |
| 13 | 01643-31032 | WASHER | 202230- | |
| 14 | 20Y-977-6550 | COVER | 202230- | |
| 15 | 20Y-54-24180 | BRACKET | 202230- | |
| 16 | 01573-20208 | SEAT | 202230- | |
| 17 | 01010-81020 | BOLT | 202230- | |
| 18 | 01643-31032 | WASHER | 202230- | |
| 19 | 20Y-977-6270 | COVER | 202230- | |
| 20 | 01010-81020 | BOLT | 202230- | |
| 21 | 01643-31032 | WASHER | 202230- | |
| 22 | 20Y-977-1360 | COVER | 203294- | |
| 23 | 01010-80625 | BOLT | 203294- | |
| 24 | 01643-30623 | WASHER | 203294- |
