| Item | Part No. | Part Name | Qty | Serial No. |

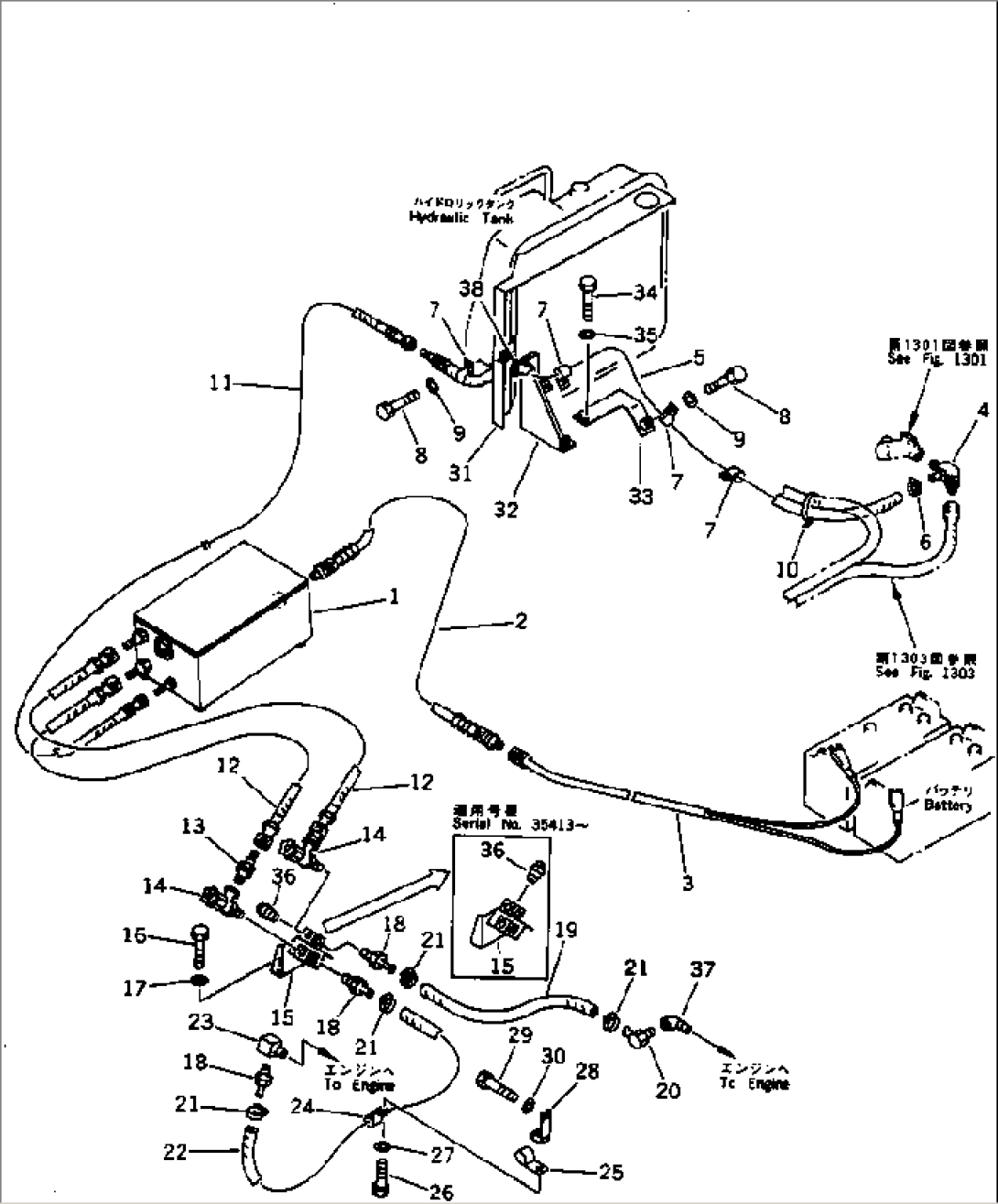

| G-1 | (\8\154-04-X2000) | HEATER GROUP | 35001- | |
| ==================== | ||||
| 1 | 175-98-22350 | PRE HEATER ASS'Y (KIT) | 35001- | |
| 2 | 175-98-22360 | CABLE (KIT) | 35001- | |
| 3 | 175-98-22370 | CABLE | 35001- | |
| 4 | 154-04-51520 | TEE | 35001- | |
| 5 | 154-04-51630 | HOSE | 35001- | |
| 6 | 07281-00197 | CLAMP | 35001- | |
| 7 | 175-79-82710 | CLIP | 35001- | |
| 8 | 01010-51220 | BOLT | 35001- | |
| 9 | 01643-31232 | WASHER | 35001- | |
| 10 | 08034-00519 | BAND | 35001- | |
| 11 | 154-04-11370 | HOSE (KIT) | 35001- | |
| 12 | 175-98-22390 | HOSE (KIT) | 35001- | |
| 13 | 175-98-22410 | PLUG (KIT) | 35001- | |
| 14 | 195-911-5591 | VALVE | 35001- | |
| 15 | 154-04-51540 | BRACKET | 35001- | |
| 16 | 01010-51230 | BOLT | 35001- | |
| 17 | 01643-31232 | WASHER | 35001- | |
| 18 | 145-Z79-5610 | JOINT,HOSE | 35001- | |
| 19 | 09483-50503 | HOSE | 35600- | |
| 19 | 09483-50530 | HOSE | 35413-35599 | |
| 19 | 195-979-3890 | HOSE | 35001-35412 | |
| 20 | 565-07-15161 | JOINT | 35001- | |
| 21 | 07281-00259 | CLAMP | 35001- | |
| 22 | 09483-50507 | HOSE | 35413- | |
| 22 | 09483-00507 | HOSE | 35001-35412 | |
| 23 | 154-04-51530 | TEE | 35001- | |
| 24 | 08035-02508 | CLIP | 35001- | |
| 25 | 08035-02508 | CLIP | 35001- | |
| 26 | 01010-51020 | BOLT | 35001- | |
| 27 | 01643-31032 | WASHER | 35001- | |
| 28 | 154-04-51560 | BRACKET | 35001- | |
| 29 | 01011-51000 | BOLT | 35001- | |
| 30 | 01643-31032 | WASHER | 35001- | |
| 31 | 154-54-46660 | COVER | 35001- | |
| 32 | 154-60-71420 | BRACKET | 35001- | |
| 33 | 154-04-51510 | BRACKET | 35001- | |
| 34 | 01010-51230 | BOLT | 35001- | |
| 35 | 01643-31232 | WASHER | 35001- | |
| 36 | 07042-30108 | PLUG | 35001- | |
| 37 | 07323-30300 | ELBOW | 35001- | |
| 38 | 08037-03614 | GROMMET | 35001- | |
| ==================== | ||||
| 38 | 175-98-05050 | SERVICE KIT,PREHEATER | 35001- | |
| 38 | 175-98-22350 | PRE HEATER ASS'Y | 35001- | |
| 38 | 175-98-22360 | CABLE | 35001- | |
| 38 | 154-04-11370 | HOSE | 35001- | |
| 38 | 175-98-22410 | PLUG | 35001- | |
| 38 | 175-98-22390 | HOSE | 35001- |
