| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-95-83280 | Bracket | 9215- | |
| 2 | 01010-81270 | Bolt | 8173- | |
| 3 | 01643-31232 | Washer | 8173- | |
| 4 | 04434-51210 | Clip | 8173- | |
| 5 | 198-06-53510 | Cushion | 8173- | |
| 6 | 01010-81020 | Bolt | 8173- | |
| 7 | 01643-31032 | Washer | 8173- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 8832 30000 (for kal)
- Engine related parts
- Pre lubrication, wiring harness mounting (2/3) (#9215 )
Поиск по каталогу

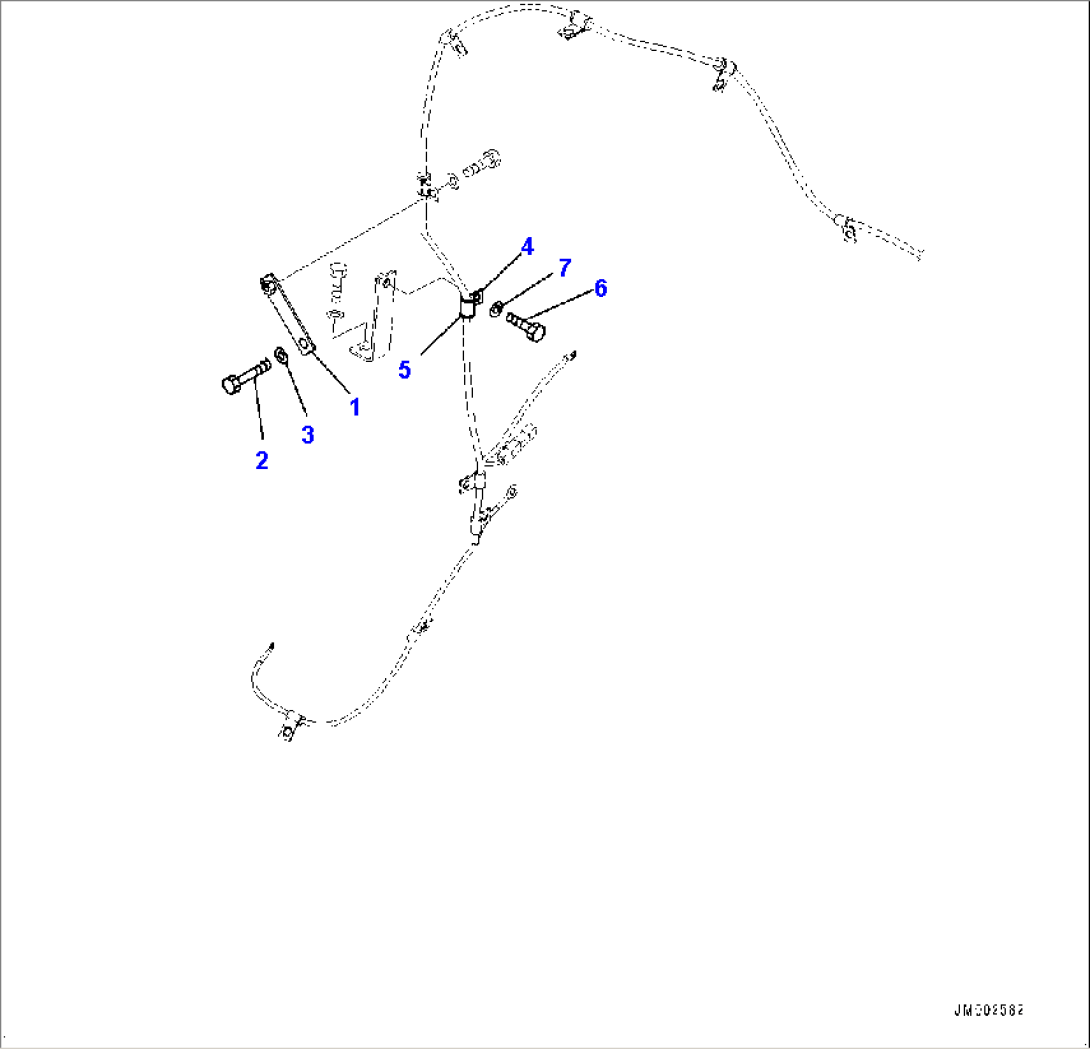

Pre Lubrication, Wiring Harness Mounting (2/3) (#9215-)
