| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-22050 | HOSE (K9) | 10002- | |
| 2 | 07285-00260 | CLIP (K9) | 10002- | |
| 3 | 799-101-5160 | NIPPLE (K9) | 10002- | |
| 4 | 07323-20100 | ELBOW (K9) | 10002- | |
| 5 | 6215-11-8170 | SENSOR (K9) | 10002- | |
| 6 | 04434-50510 | CLIP (K9) | 10002- |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gd805a 1 s/n 10002 up
- Mark plate tool and kit
- Pre maintenance parts (for engine)
Поиск по каталогу

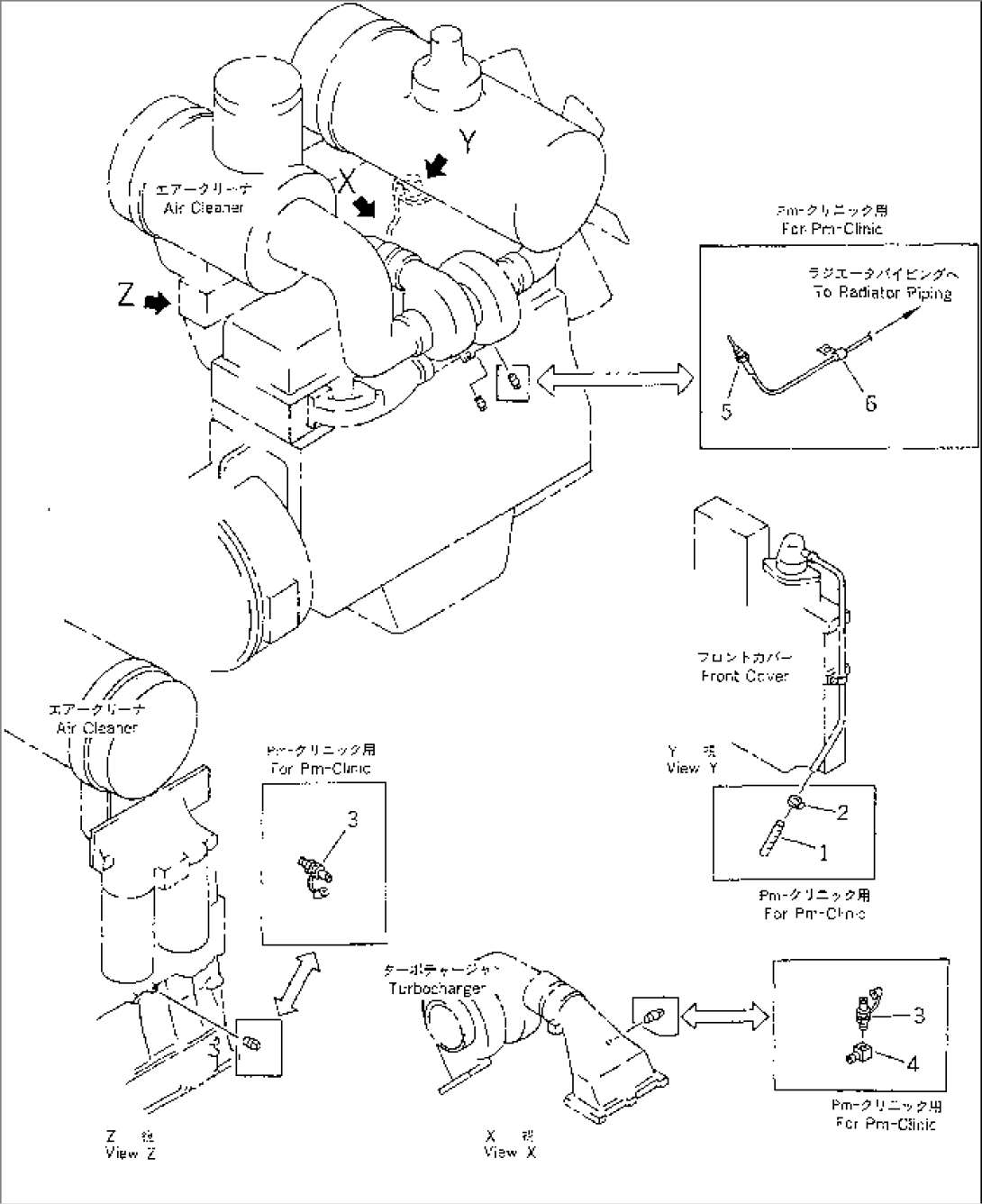

PRE MAINTENANCE PARTS (FOR ENGINE)
