| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-02-42200 | CAP | 20001- | |
| 2 | 154-54-78670 | COVER | 20001- | |
| 3 | 195-54-43210 | BOLT | 20001- | |
| 4 | 01643-71232 | WASHER | 20001- | |
| 5 | 154-54-78680 | COVER | 20001- | |
| 6 | 195-54-43210 | BOLT | 20001- | |
| 7 | 01643-71232 | WASHER | 20001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ex 15r s/n 20001 20002
- Guard
- Precleaner (with precleaner guard)(#20001 )
Поиск по каталогу

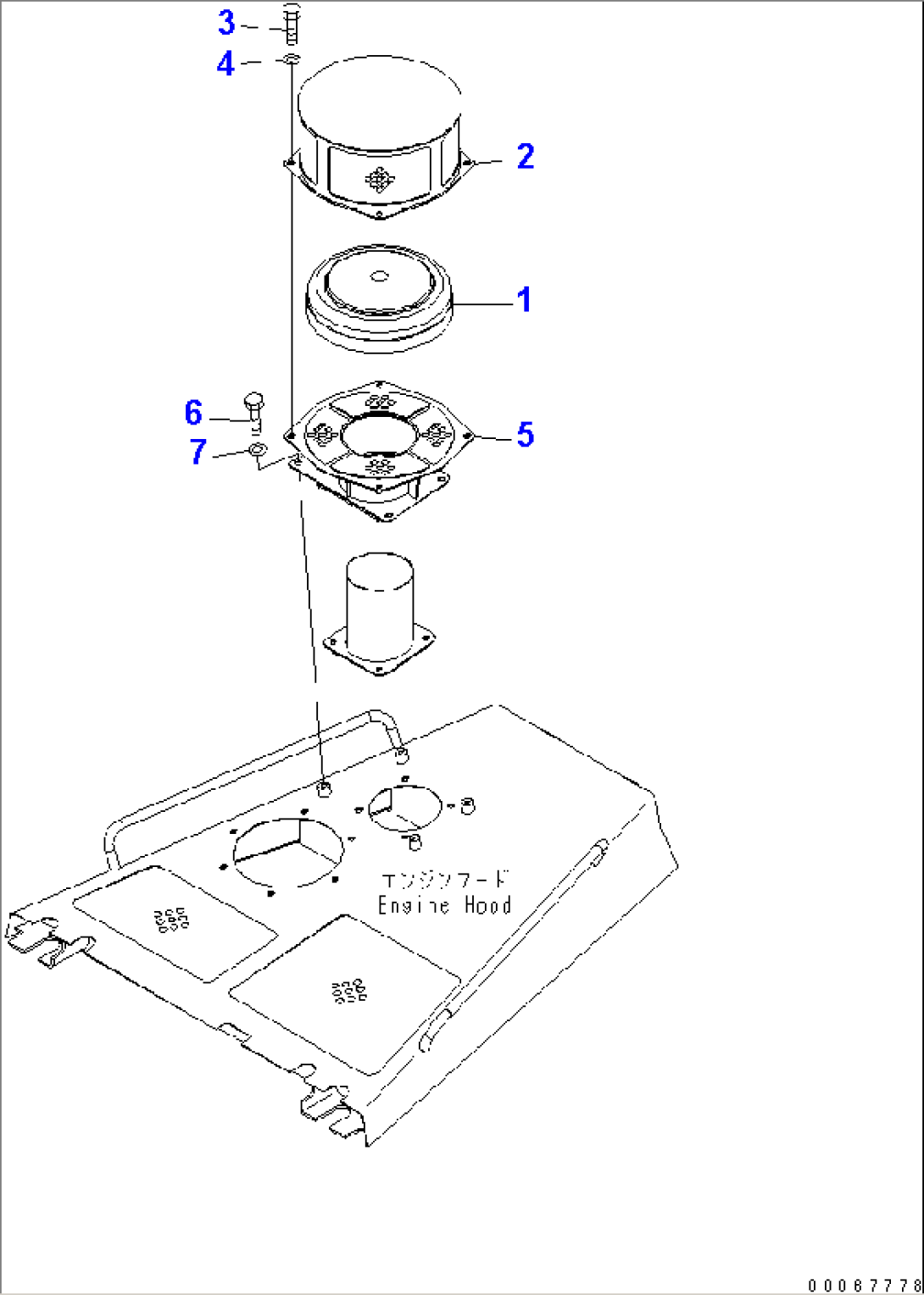

PRECLEANER (WITH PRECLEANER GUARD)(#20001-)
