| Item | Part No. | Part Name | Qty | Serial No. |

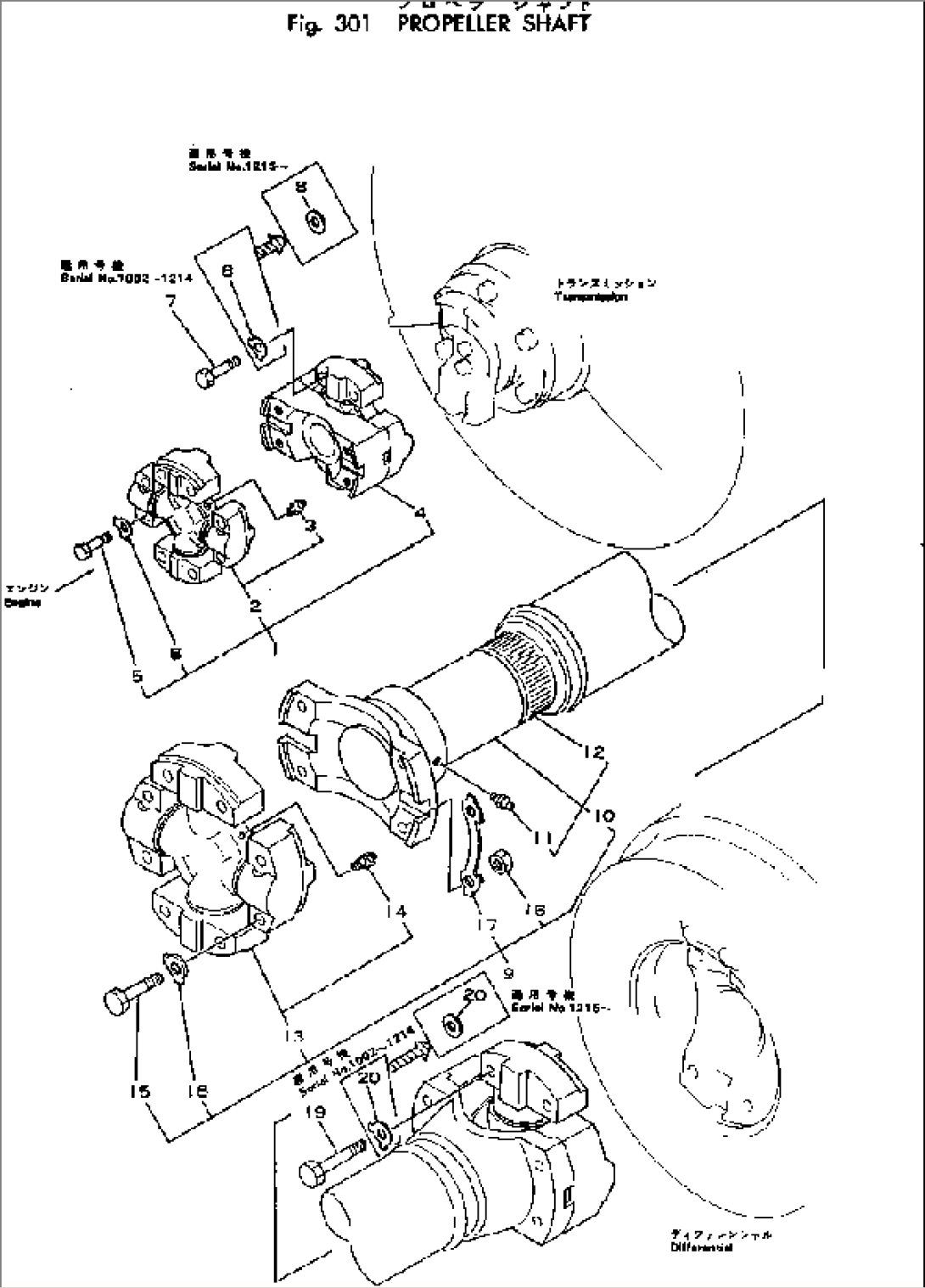

| 567-20-10001 | PROPELLER SHAFT A. | 1002- | ||
| 1 | 411-20-11002 | DRIVE SHAFT ASS'Y | 1215- | |
| 1 | \0\411-20-11001 | DRIVE SHAFT ASS'Y | 1101-1214 | |
| 1 | \0\411-20-11000 | DRIVE SHAFT ASS'Y | 1002-1100 | |
| 2 | 411-20-11201 | SPIDER ASS'Y | 1101- | |
| 2 | \0\411-20-11200 | SPIDER ASS'Y | 1002-1100 | |
| 3 | 411-20-11321 | FITTING | 1002- | |
| 4 | 411-20-11311 | PLATE | 1002- | |
| 5 | 411-20-11410 | BOLT | 1002- | |
| 6 | 566-20-12330 | LOCK | 1002-1214 | |
| 7 | 01050-61250 | BOLT | 1215- | |
| 7 | \0\01090-61250 | BOLT | 1002-1214 | |
| 8 | 01643-31232 | WASHER | 1215- | |
| 8 | \0\566-20-12330 | LOCK | 1002-1214 | |
| 9 | 567-20-12003 | SHAFT ASS'Y | 1215- | |
| 9 | \0\567-20-12002 | SHAFT ASS'Y | 1002-1214 | |
| 10 | 567-20-12102 | YOKE ASS'Y | 1002- | |
| 11 | 02730-00200 | FITTING | 1002- | |
| 12 | 567-20-12351 | RETAINER | 1002- | |
| 13 | 567-20-12202 | SPIDER ASS'Y | 1002- | |
| 14 | 02730-00200 | FITTING | 1002- | |
| 15 | 567-20-12310 | BOLT | 1002- | |
| 16 | 567-20-12340 | NUT | 1002- | |
| 17 | 567-20-12320 | PLATE | 1002-1214 | |
| 18 | 566-20-12330 | LOCK | 1002-1214 | |
| 19 | 01050-61260 | BOLT | 1215- | |
| 19 | \0\01090-61260 | BOLT | 1002-1214 | |
| 20 | 01643-31232 | WASHER | 1215- | |
| 20 | \0\566-20-12330 | LOCK | 1002-1214 |
