| Item | Part No. | Part Name | Qty | Serial No. |
| 421-20-34511 | Propeller Shaft Assembly | 90216- | ||
| 1 | 421-20-33621 | Spider Assembly | 90216- | |
| 2 | 423-20-32631 | Fitting, Grease | 90216- | |
| 3 | 421-20-12690 | Bolt | 90216- | |
| 4 | 421-20-34650 | Yoke | 90216- | |
| 5 | 01050-61260 | Bolt | 90216- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 90216 up (for eu)
- Power transmitting system
- Propeller shaft, rear (#90216 )
Поиск по каталогу

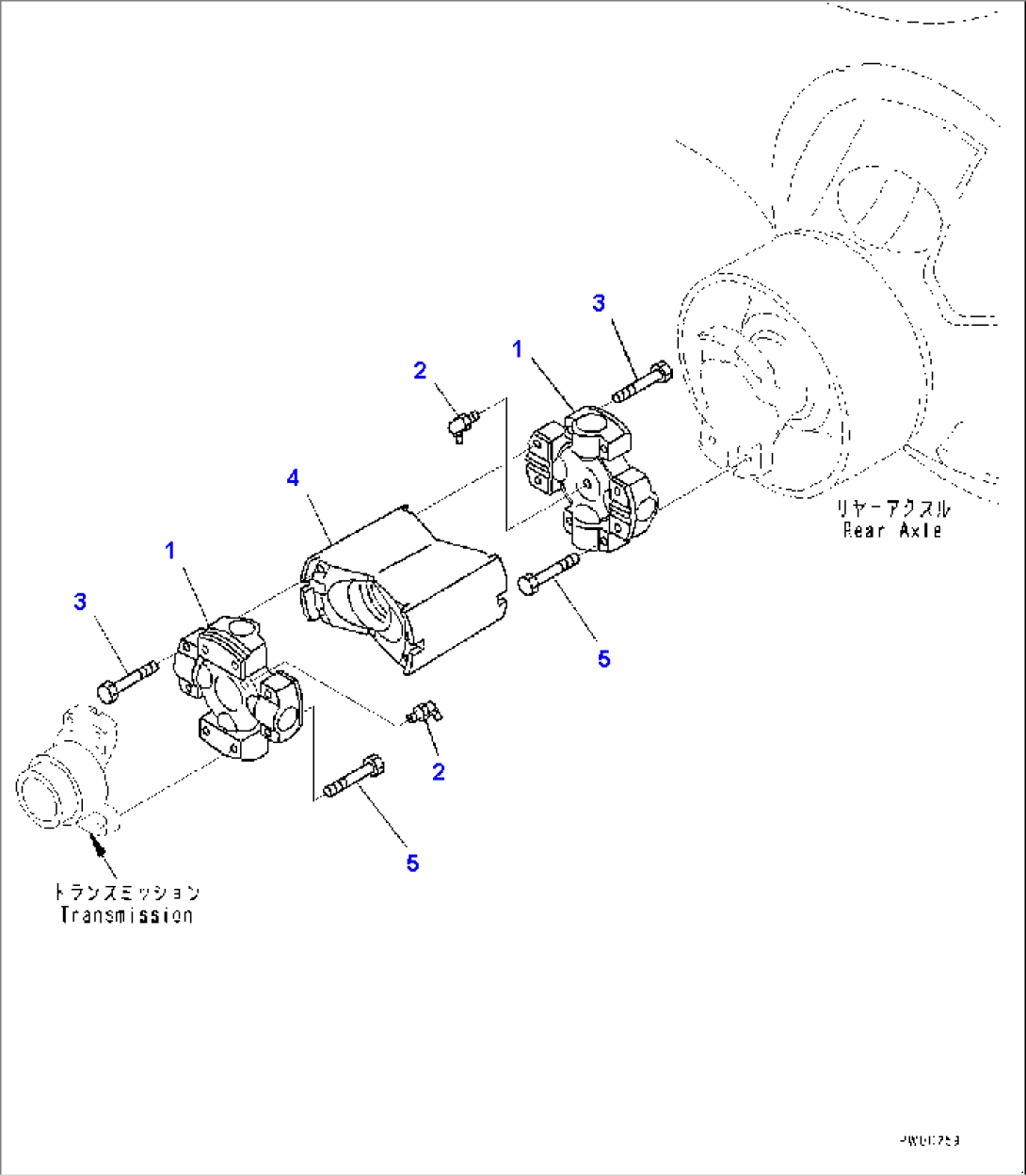

Propeller Shaft, Rear (#90216-)
