| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02760-00318 | Hose, Face Seal Type | 70001- | |
| 2 | 02760-003A4 | Hose, Face Seal Type | 70001- | |
| 3 | 04435-51512 | Clip | 70001- | |
| 4 | 01010-81225 | Bolt | 70001- | |
| 5 | 01643-31232 | Washer | 70001- | |
| 6 | 04434-51512 | Clip | 70001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc850 8r1 s/n 70001 up
- Hydraulic system
- Proportional pressure control (ppc) arm piping (#70001 )
Поиск по каталогу

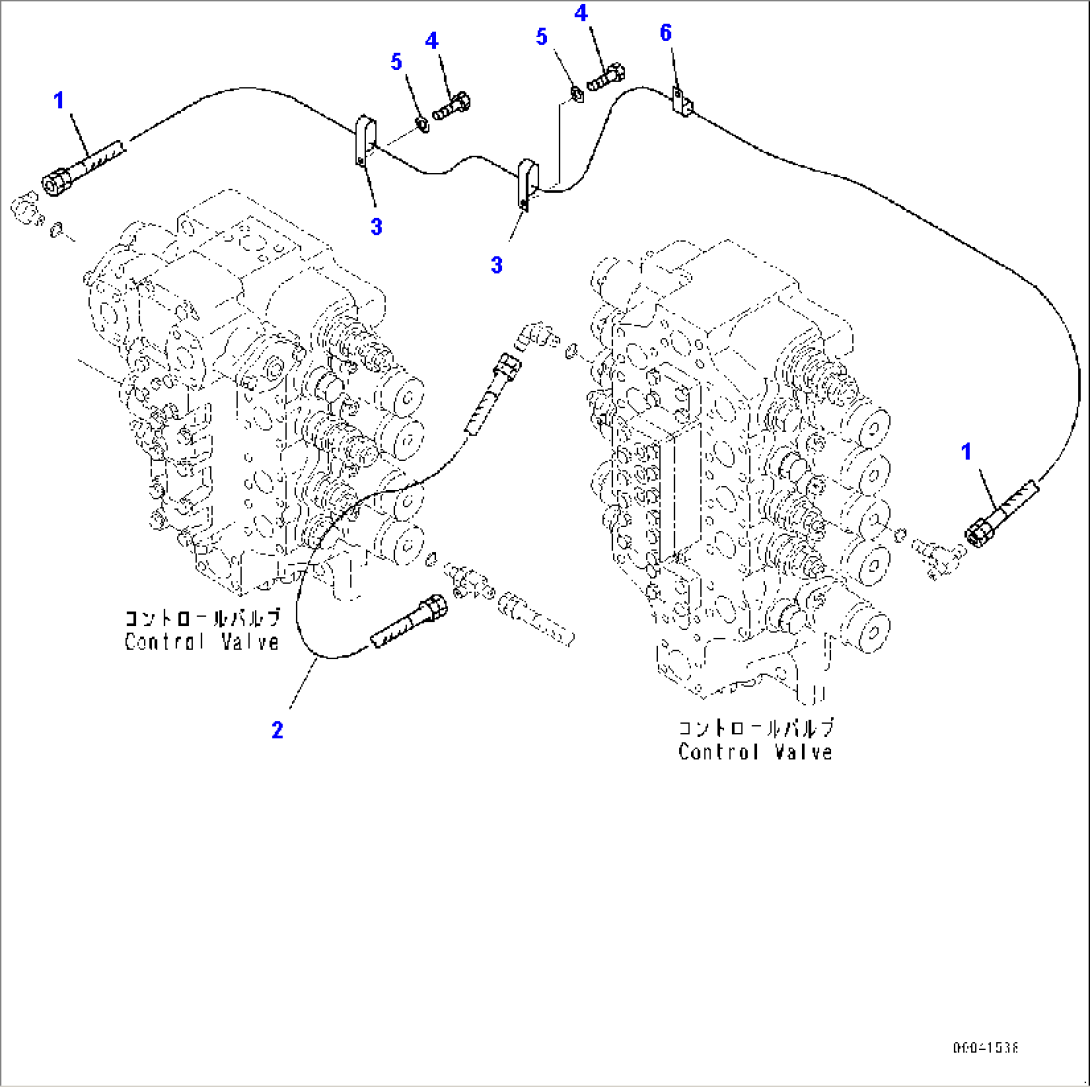

Proportional Pressure Control (PPC) Arm Piping (#70001-)
