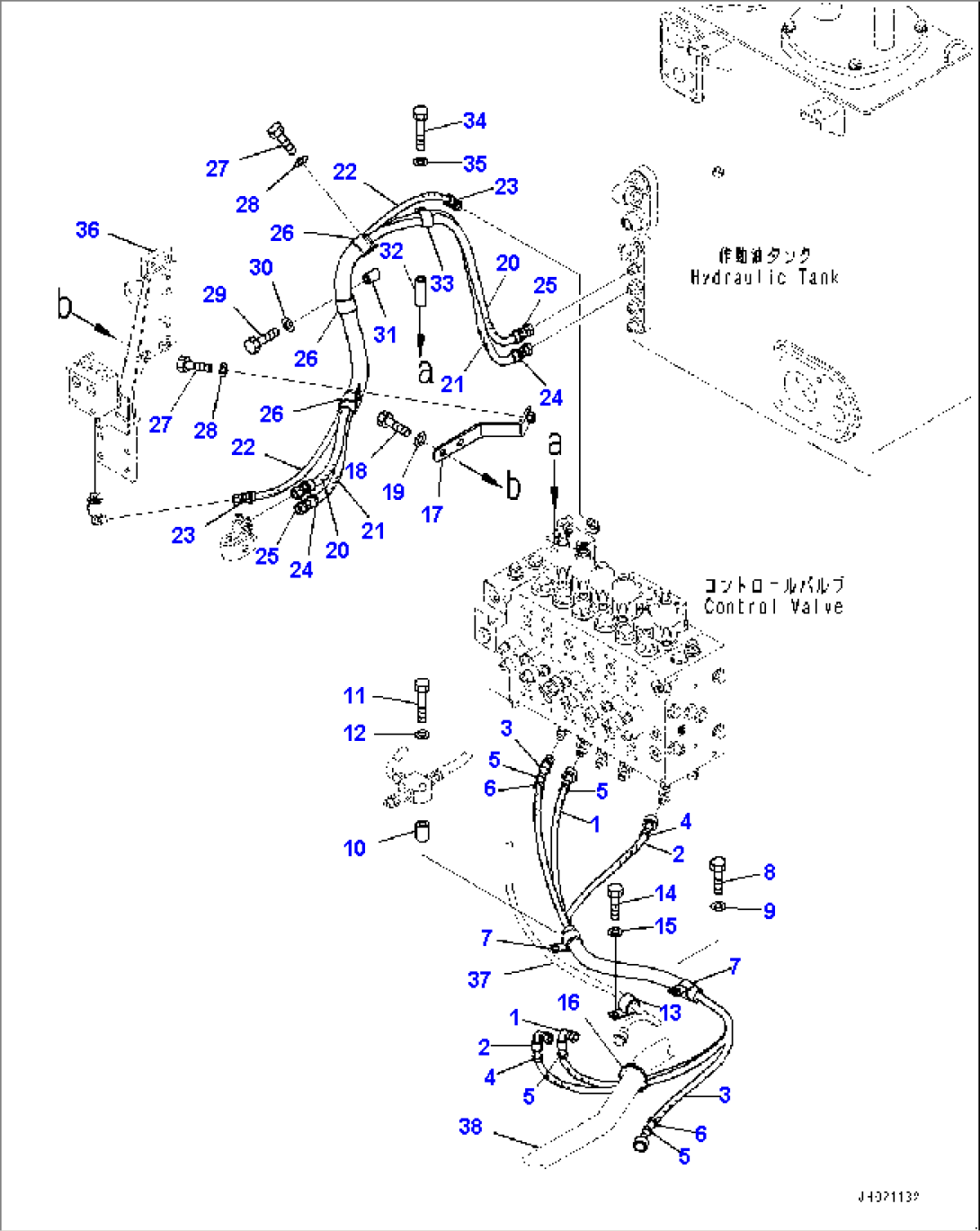

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 196-61-21591 | Hose | 15479- | |
| 2 | 196-61-21611 | Hose | 15479- | |
| 3 | 196-61-21561 | Hose | 15479- | |
| 4 | 20Y-62-22840 | Band, Black | 15479- | |
| 5 | 20Y-62-22850 | Band, Green | 15479- | |
| 6 | 20Y-62-22830 | Band, White | 15479- | |
| 7 | 04434-52712 | Clip | 15479- | |
| 8 | 01010-81220 | Bolt | 15479- | |
| 9 | 01643-31232 | Washer | 15479- | |
| 10 | 20Y-03-11220 | Collar | 15479- | |
| 11 | 01010-81295 | Bolt | 15479- | |
| 12 | 01643-31232 | Washer | 15479- | |
| 13 | 04434-52712 | Clip | 15479- | |
| 14 | 01010-81220 | Bolt | 15479- | |
| 15 | 01643-31232 | Washer | 15479- | |
| 16 | 08034-20519 | Band | 15479- | |
| 17 | 196-61-21940 | Bracket | 15479- | |
| 18 | 01010-81230 | Bolt | 15479- | |
| 19 | 01643-31232 | Washer | 15479- | |
| 20 | 02774-10315 | Hose | 15479- | |
| 21 | 196-61-22290 | Hose | 15479- | |
| 22 | 196-61-22430 | Hose | 15481- | |
| 23 | 20Y-62-22790 | Band, Red | 15479- | |
| 24 | 20Y-62-22810 | Band, Yellow | 15479- | |
| 25 | 20Y-62-22820 | Band, Blue | 15479- | |
| 26 | 04434-53212 | Clip | 15479- | |
| 27 | 01010-81230 | Bolt | 15479- | |
| 28 | 01643-31232 | Washer | 15479- | |
| 29 | 01010-81270 | Bolt | 15479- | |
| 30 | 01643-31232 | Washer | 15479- | |
| 31 | 144-947-3490 | Spacer | 15479- | |
| 32 | 175-61-17240 | Collar | 15479- | |
| 33 | 04435-51812 | Clip | 15479- | |
| 34 | 01010-81285 | Bolt | 15479- | |
| 35 | 01643-31232 | Washer | 15479- | |
| 36 | (196-61-21892) | Bracket | - | |
| 37 | (196-61-21541) | Hose | - | |
| 38 | (196-61-21811) | Tube | - |
