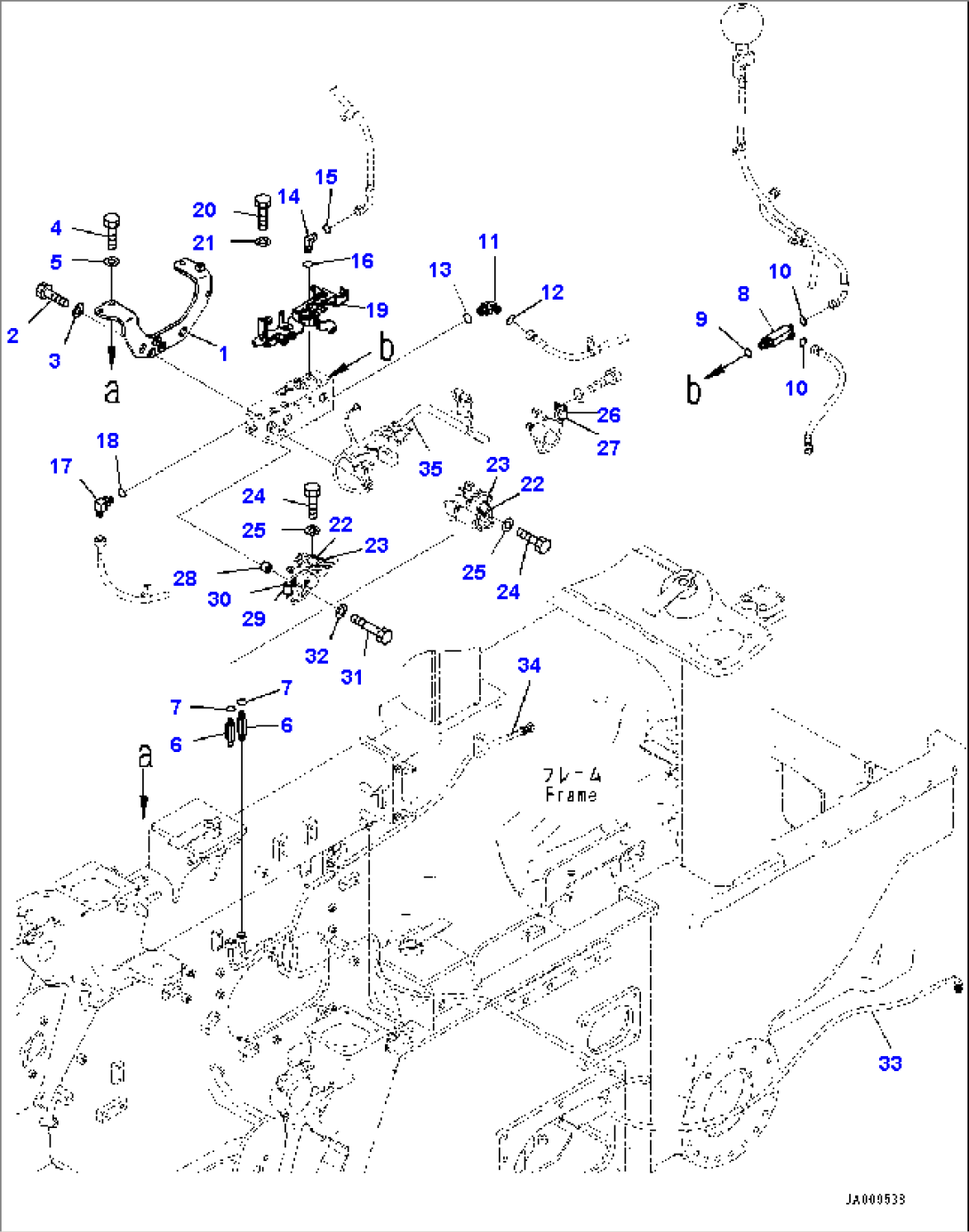

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13Y-62-11792 | Plate | 30001- | |
| 2 | 01010-81030 | Bolt | 30001- | |
| 3 | 01643-31032 | Washer | 30001- | |
| 4 | 01010-81025 | Bolt | 30001- | |
| 5 | 01643-31032 | Washer | 30001- | |
| 6 | 13Y-62-12331 | Nipple | 30001- | |
| 7 | 07002-11423 | O-ring | 30001- | |
| 8 | 13Y-62-12341 | Tee | 30001- | |
| 9 | 07002-11823 | O-ring | 30001- | |
| 10 | 02896-11009 | O-ring | 30001- | |
| 11 | 02782-10315 | Elbow | 30001- | |
| 12 | 02896-11009 | O-ring | 30001- | |
| 13 | 07002-12034 | O-ring | 30001- | |
| 14 | 02782-10311 | Elbow | 30001- | |
| 15 | 02896-11009 | O-ring | 30001- | |
| 16 | 07002-11423 | O-ring | 30001- | |
| 17 | 20Y-62-22271 | Elbow | 30001- | |
| 18 | 07002-11423 | O-ring | 30001- | |
| 19 | 13Y-06-11350 | Bracket | 30001- | |
| 20 | 01010-80816 | Bolt | 30001- | |
| 21 | 01643-30823 | Washer | 30001- | |
| 22 | 04434-51610 | Clip | 30074- | |
| 22 | 04434-51510 | Clip | 30001-30073 | |
| 23 | 07095-20211 | Cushion | 30001- | |
| 24 | 01010-81020 | Bolt | 30001- | |
| 25 | 01643-31032 | Washer | 30001- | |
| 26 | 04434-51610 | Clip | 30074- | |
| 26 | 04434-51510 | Clip | 30001-30073 | |
| 27 | 07095-20211 | Cushion | 30001- | |
| 28 | 175-79-83760 | Spacer | 30001- | |
| 29 | 04434-51610 | Clip | 30074- | |
| 29 | 04434-51510 | Clip | 30001-30073 | |
| 30 | 07095-20211 | Cushion | 30001- | |
| 31 | 01010-81040 | Bolt | 30001- | |
| 32 | 01643-31032 | Washer | 30001- | |
| 33 | (13Y-62-13114) | Hose | - | |
| 34 | (13Y-62-13134) | Hose | - | |
| 35 | (13Y-06-11932) | Wiring Harness | - |
