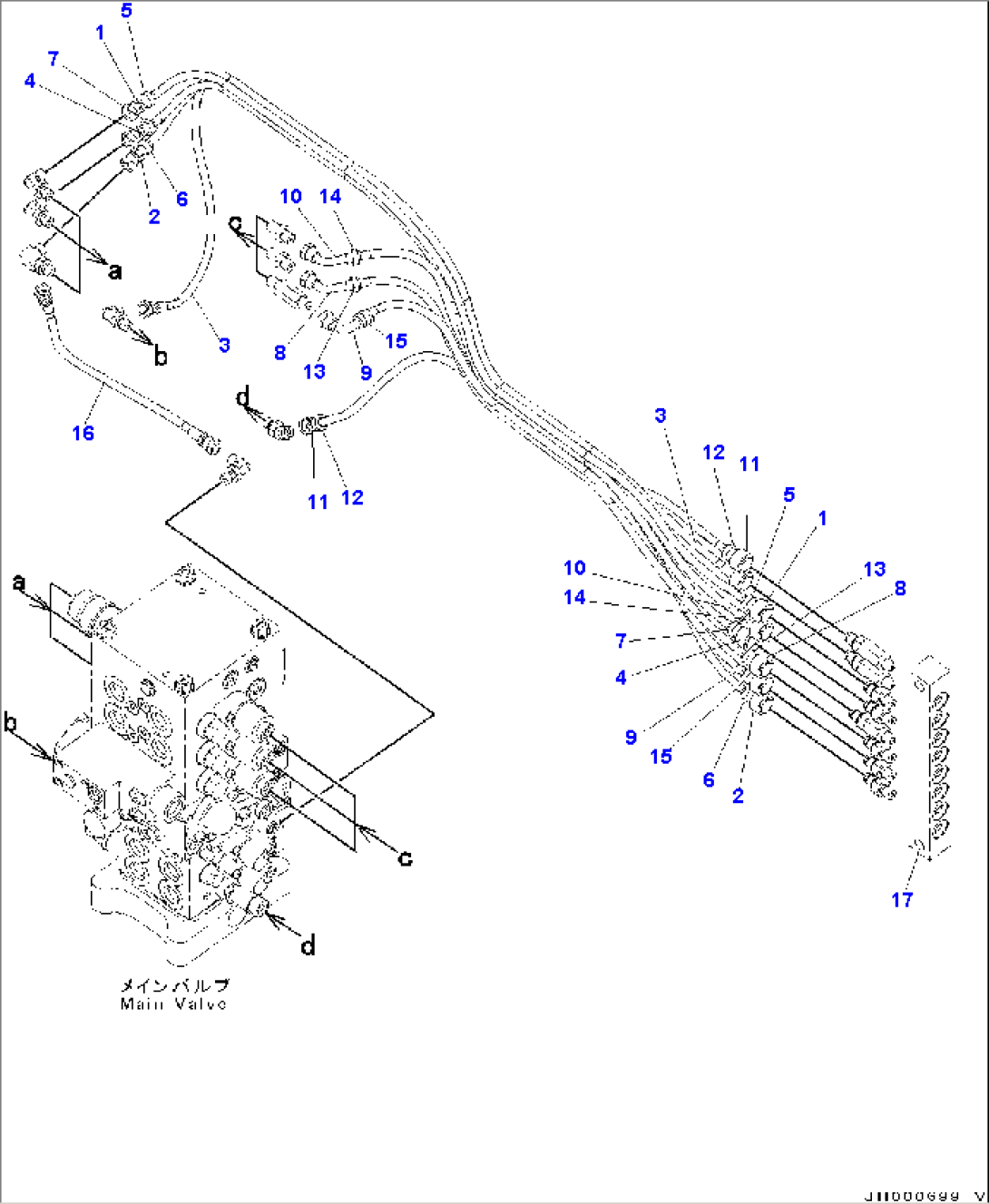

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-62-26880 | Hose | C30001- | |
| 2 | 20Y-62-51840 | Hose | C30001- | |
| 3 | 203-62-12911 | Hose | C30001- | |
| 4 | 203-62-12890 | Hose | C30001- | |
| 5 | 20Y-62-22840 | Band, Black | C30001- | |
| 6 | 20Y-62-22850 | Band, Green | C30001- | |
| 7 | 20Y-62-22810 | Band, Yellow | C30001- | |
| 8 | 203-62-12870 | Hose | C30001- | |
| 9 | 203-62-12881 | Hose | C30001- | |
| 10 | 203-62-13260 | Hose | C30001- | |
| 11 | 22U-62-26920 | Hose | C30001- | |
| 12 | 20Y-62-22790 | Band, Red | C30001- | |
| 13 | 20Y-62-22820 | Band, Blue | C30001- | |
| 14 | 20Y-62-22830 | Band, White | C30001- | |
| 15 | 20Y-62-22860 | Band, Brown | C30001- | |
| 16 | 02760-002A4 | Hose, Face Seal Type | C30001- | |
| 17 | (203-62-12990) | Bracket | - |
