| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-70-B2210 | PROTECTOR | B10001- | |
| 2 | 01010-81230 | BOLT | B10001- | |
| 3 | 01643-31232 | WASHER | B10001- | |
| 4 | (20Y-70-B1761) | GUARD | ||
| 5 | (01010-81230) | BOLT | ||
| 6 | (01643-31232) | WASHER |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200f 8m0 s/n b10001 up
- Work equipment
- Protector of transmission hoses
Поиск по каталогу

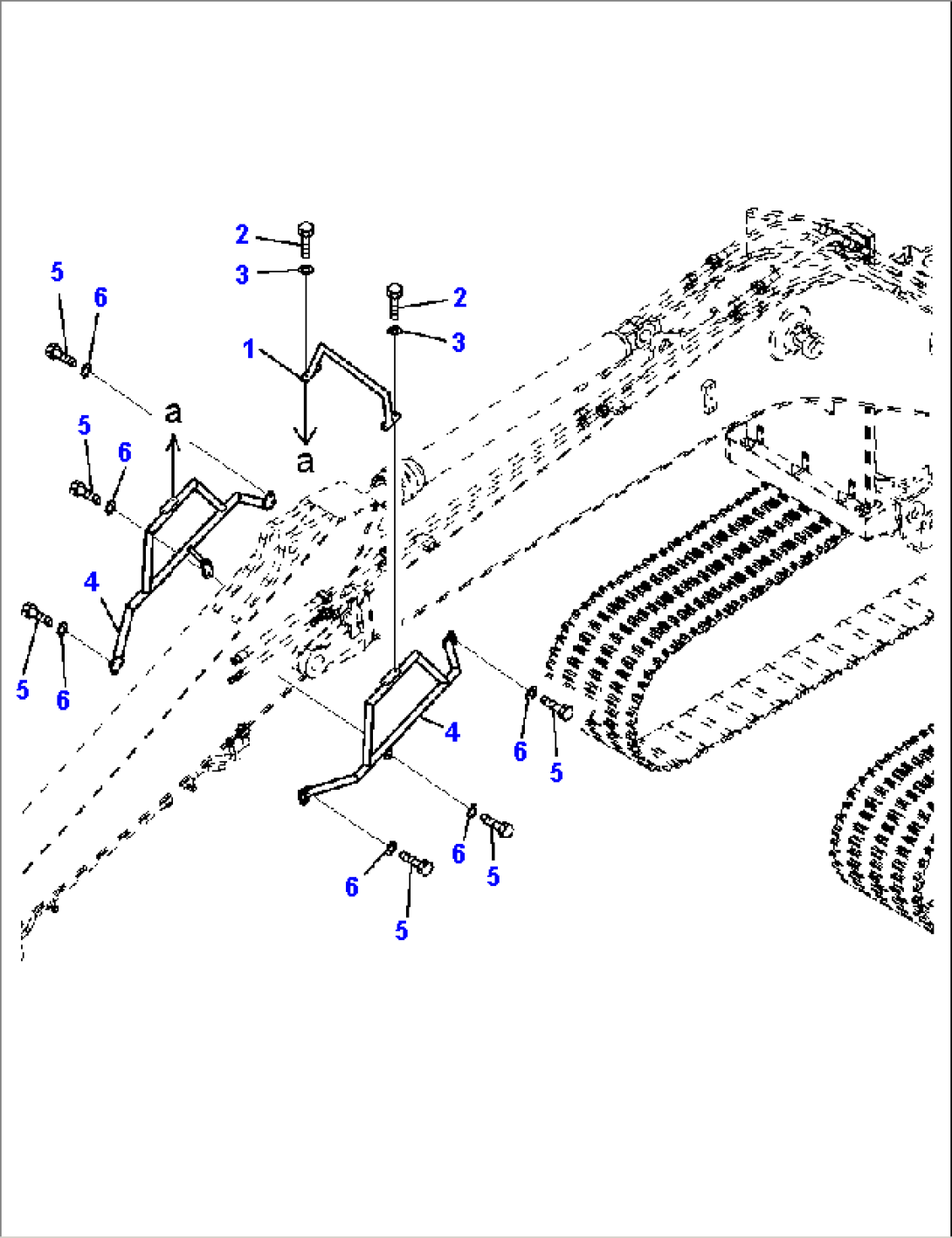

PROTECTOR OF TRANSMISSION HOSES
