| Item | Part No. | Part Name | Qty | Serial No. |

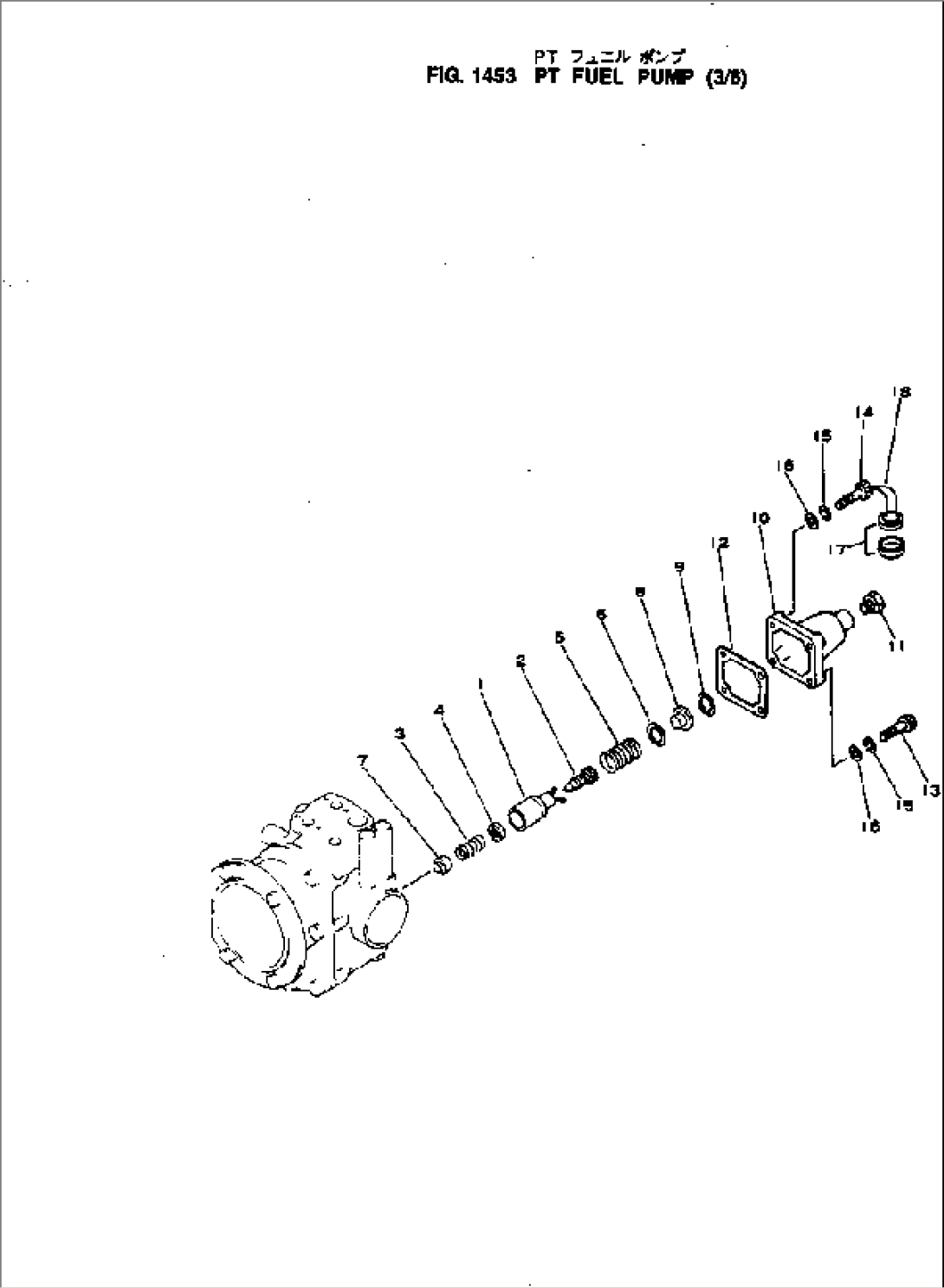

| (6631-71-1150) | PT FUEL PUMP ASS'Y,(GR-J237) | 174424- | ||
| 6610-71-1061 | GUIDE ASS'Y,PLUNGER | 174424- | ||
| 1 | 6610-71-1071 | GUIDE ASS'Y,PLUNGER | 174424- | |
| \6\ | GUIDE | 174424- | ||
| \6\ | CLIP | 174424- | ||
| 2 | 6610-71-1530 | SCREW,IDLE ADJUSTING | 174424- | |
| 3 | 6610-71-1520 | SPRING,IDLE | 174424- | |
| 4 | 6610-71-1540 | WASHER | 174424- | |
| 6632-70-6030 | SPRING ASS'Y,GOVERNOR HIGH SPEED | 174424- | ||
| 5 | 6610-71-5580 | SPRING | 174424- | |
| 7 | 6610-71-6610 | PLUNGER,IDLE SPRING | 174424- | |
| 8 | 6610-71-1780 | RETAINER,SPRING | 174424- | |
| 9 | 6600-01-3120 | RING,SNAP | 174424- | |
| 10 | 6610-71-1810 | COVER | 174424- | |
| 11 | 6610-71-1850 | PLUG | 174424- | |
| 12 | 6610-71-1821 | GASKET (K6) | 174424- | |
| 13 | 02100-00432 | BOLT | 174424- | |
| 14 | 6610-71-1880 | BOLT | 174424- | |
| 15 | 6610-71-1230 | WASHER,SPRING | 174424- | |
| 16 | 6610-71-1840 | WASHER | 174424- | |
| 17 | 6610-71-1760 | SEAL,LEAD | 174424- | |
| 18 | 6610-71-1771 | WIRE,LOCK | 174424- |
