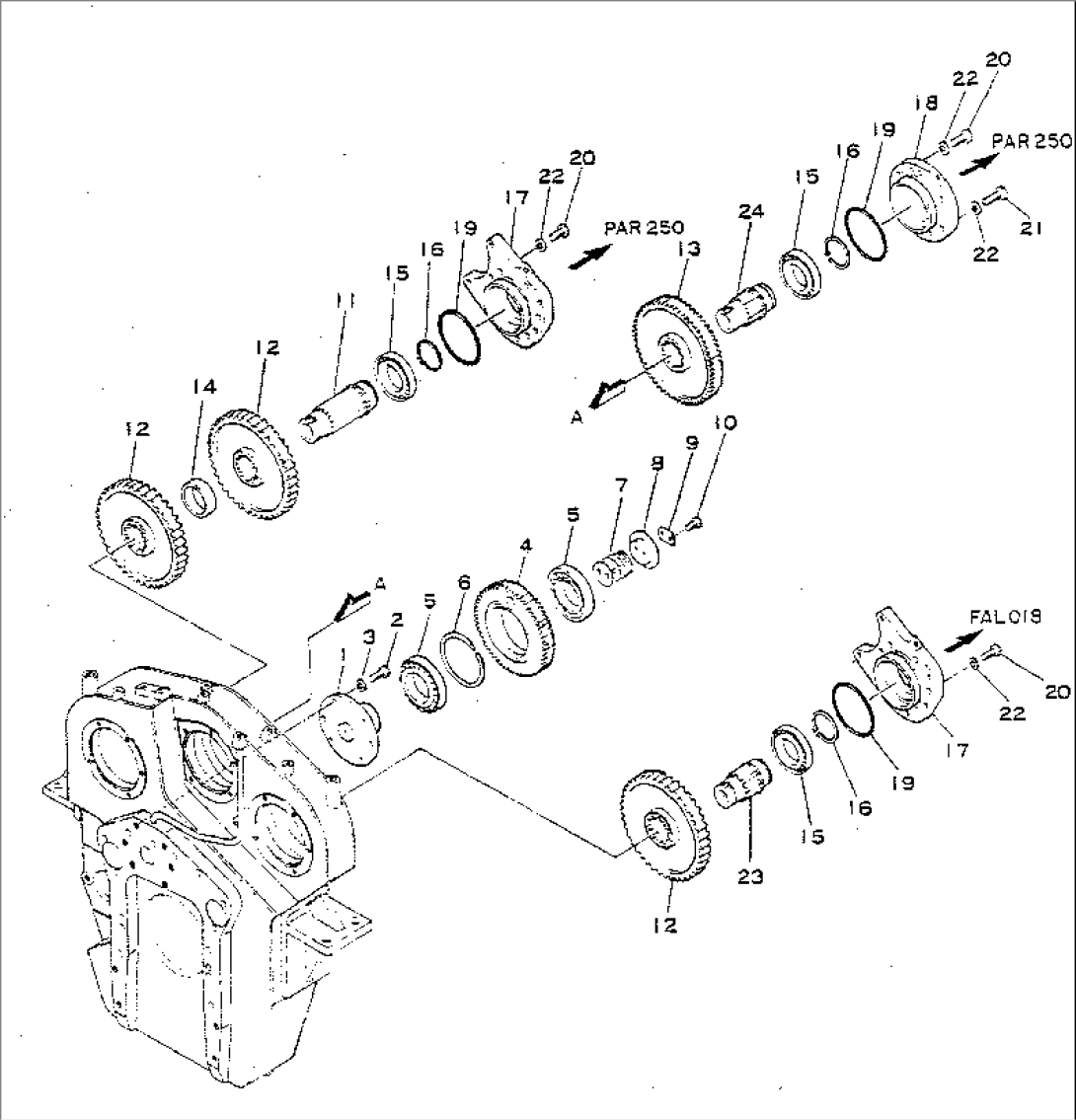

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-01-25610 | SHAFT | 1002-1054 | |
| 2 | 01010-51230 | BOLT | 1002-1054 | |
| 3 | 01602-21236 | WASHER | 1002-1054 | |
| 4 | 6128-21-4321 | GEAR | 1002-1054 | |
| 5 | 06000-30217 | BEARING | 1002-1054 | |
| 6 | 04067-00150 | RING | 1002-1054 | |
| 7 | 6128-21-4600 | SHIM ASS'Y | 1002-1054 | |
| 6128-21-4610 | SHIM¤ 1.0MM | 1002-1054 | ||
| 6128-21-4620 | SHIM¤ 0.5MM | 1002-1054 | ||
| 6128-21-4630 | SHIM¤ 0.1MM | 1002-1054 | ||
| 8 | 6128-21-4340 | RETAINER | 1002-1054 | |
| 9 | 6128-21-4360 | LOCK | 1002-1054 | |
| 10 | 01050-51225 | BOLT | 1002-1054 | |
| 11 | 568-01-25130 | SHAFT | 1002-1054 | |
| 12 | 568-01-15220 | GEAR | 1002-1054 | |
| 13 | 568-01-25220 | GEAR | 1002-1054 | |
| 14 | 568-01-25240 | SPACER | 1002-1054 | |
| 15 | 06004-00215 | BEARING | 1002-1054 | |
| 16 | 04064-07525 | RING | 1002-1054 | |
| 17 | 568-01-15170 | ADAPTER | 1002-1054 | |
| 18 | 568-01-25120 | ADAPTER | 1002-1054 | |
| 19 | 07000-25140 | O-RING | 1002-1054 | |
| 20 | 01010-51235 | BOLT | 1002-1054 | |
| 21 | 01010-51250 | BOLT | 1002-1054 | |
| 22 | 01602-21236 | WASHER | 1002-1054 | |
| 23 | 568-01-25140 | SHAFT | 1002-1054 | |
| 24 | 568-01-25150 | SHAFT | 1002-1054 |
