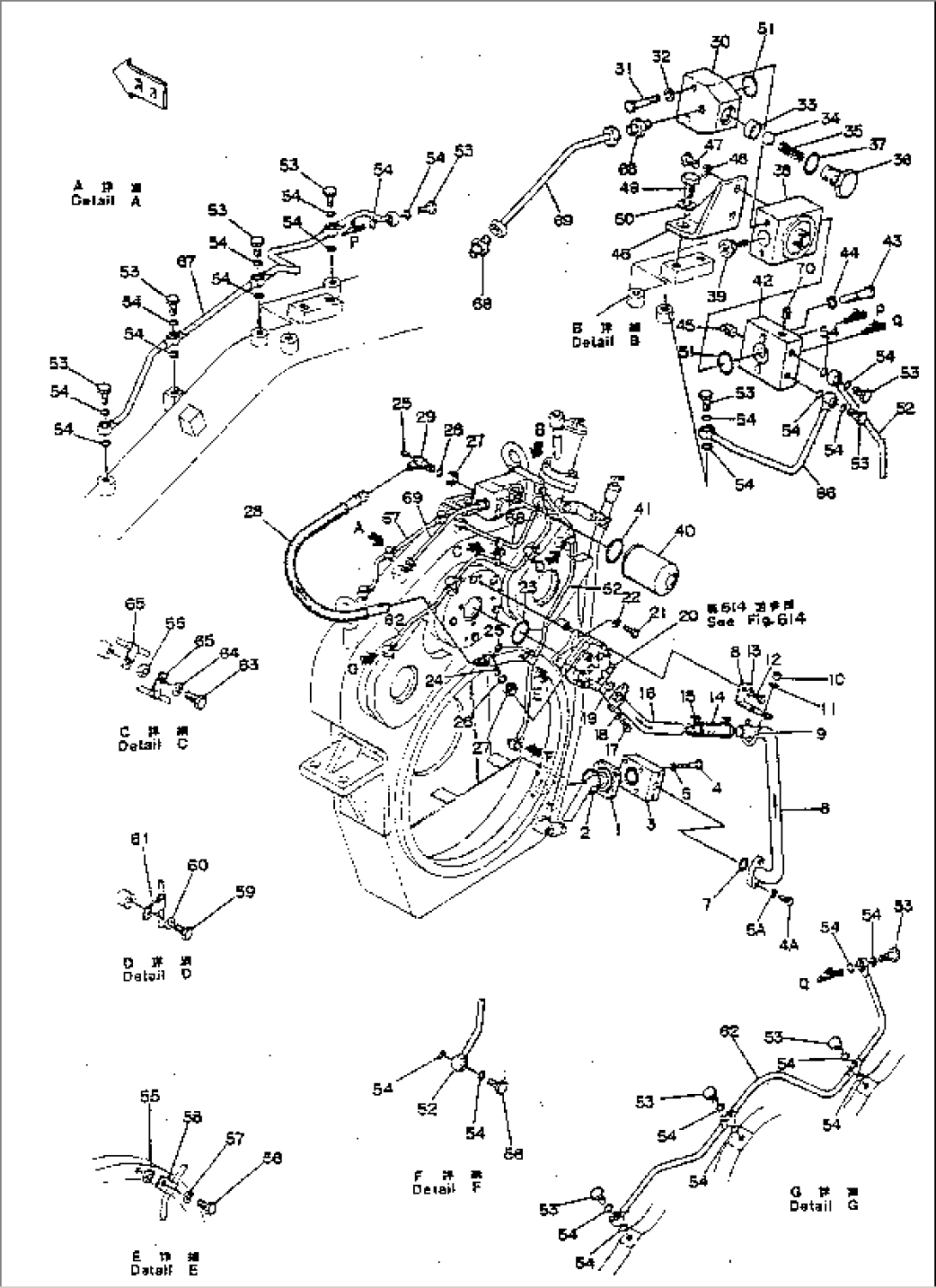

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-01-25550 | TUBE | 1002-1054 | |
| 2 | 07000-22060 | O-RING | 1002-1054 | |
| 3 | 285-01-18340 | BLOCK | 1002-1054 | |
| 4 | 01010-51070 | BOLT | 1002-1054 | |
| 5 | 01602-21030 | WASHER | 1002-1054 | |
| 6 | 568-01-25411 | TUBE | 1002-1054 | |
| 7 | 07000-23040 | O-RING | 1002-1054 | |
| 8 | 568-01-25430 | BRACKET | 1002-1054 | |
| 9 | 07283-12738 | CLIP | 1002-1054 | |
| 10 | 01599-01011 | NUT | 1002-1054 | |
| 11 | 01643-21032 | WASHER | 1002-1054 | |
| 12 | 01010-51225 | BOLT | 1002-1054 | |
| 13 | 01602-21236 | WASHER | 1002-1054 | |
| 14 | 07260-22616 | HOSE | 1002-1054 | |
| 15 | 07280-04126 | CLAMP | 1002-1054 | |
| 16 | 568-01-25420 | TUBE | 1002-1054 | |
| 17 | 01010-51030 | BOLT | 1002-1054 | |
| 18 | 01602-21030 | WASHER | 1002-1054 | |
| 19 | 07000-23025 | O-RING | 1002-1054 | |
| 20 | (07425-71101) | PUMP ASS'Y | 1002-1054 | |
| 21 | 01010-51025 | BOLT | 1002-1054 | |
| 22 | 01602-21030 | WASHER | 1002-1054 | |
| 23 | 07000-22065 | O-RING | 1002-1054 | |
| 24 | 07233-10422 | ELBOW | 1002-1054 | |
| 25 | 07042-00108 | PLUG | 1002-1054 | |
| 26 | 07000-23017 | O-RING | 1002-1054 | |
| 27 | 07239-12009 | NUT | 1002-1054 | |
| 28 | 07102-20408 | HOSE | 1002-1054 | |
| 29 | 07232-10422 | ELBOW | 1002-1054 | |
| 30 | 281-01-17140 | BODY | 1002-1054 | |
| 31 | 01010-51065 | BOLT | 1002-1054 | |
| 32 | 01602-21030 | WASHER | 1002-1054 | |
| 33 | 560-14-19441 | SEAT | 1002-1054 | |
| 34 | 560-14-19470 | BALL | 1002-1054 | |
| 35 | 560-14-19450 | SPRING | 1002-1054 | |
| 36 | 560-14-19460 | SEAT | 1002-1054 | |
| 37 | 07000-23034 | O-RING | 1002-1054 | |
| 38 | 281-15-14311 | BODY | 1002-1054 | |
| 39 | 281-15-14321 | VALVE | 1002-1054 | |
| 40 | 281-15-14291 | FILTER ASS'Y | 1002-1054 | |
| 41 | 07000-22065 | O-RING | 1002-1054 | |
| 42 | 568-01-25360 | FLANGE | 1002-1054 | |
| 43 | 01010-51050 | BOLT | 1002-1054 | |
| 44 | 01602-21030 | WASHER | 1002-1054 | |
| 45 | 07042-00312 | PLUG | 1002-1054 | |
| 46 | 568-01-25330 | BRACKET | 1002-1054 | |
| 47 | 01010-51020 | BOLT | 1002-1054 | |
| 48 | 01602-21030 | WASHER | 1002-1054 | |
| 49 | 01010-51430 | BOLT | 1002-1054 | |
| 50 | 01602-21442 | WASHER | 1002-1054 | |
| 51 | 07000-23032 | O-RING | 1002-1054 | |
| 52 | 568-01-25462 | TUBE | 1002-1054 | |
| 53 | 6631-51-9580 | BOLT | 1002-1054 | |
| 54 | 07000-22012 | O-RING | 1002-1054 | |
| 55 | 01580-11815 | NUT | 1002-1054 | |
| 56 | 01010-51230 | BOLT | 1002-1054 | |
| 57 | 01602-21236 | WASHER | 1002-1054 | |
| 58 | 08035-01514 | CLIP | 1002-1054 | |
| 59 | 01010-51220 | BOLT | 1002-1054 | |
| 60 | 01602-21236 | WASHER | 1002-1054 | |
| 61 | 08036-00814 | CLIP | 1002-1054 | |
| 62 | 568-01-25442 | TUBE | 1002-1054 | |
| 63 | 01010-51235 | BOLT | 1002-1054 | |
| 64 | 01602-21236 | WASHER | 1002-1054 | |
| 65 | 08036-00814 | CLIP | 1002-1054 | |
| 66 | 568-01-25472 | TUBE | 1002-1054 | |
| 67 | 568-01-25452 | TUBE | 1002-1054 | |
| 68 | 07213-51013 | CONNECTOR | 1002-1054 | |
| 69 | 568-01-25482 | TUBE | 1002-1054 | |
| 70 | 07042-00108 | PLUG | 1002-1054 |
