| Item | Part No. | Part Name | Qty | Serial No. |

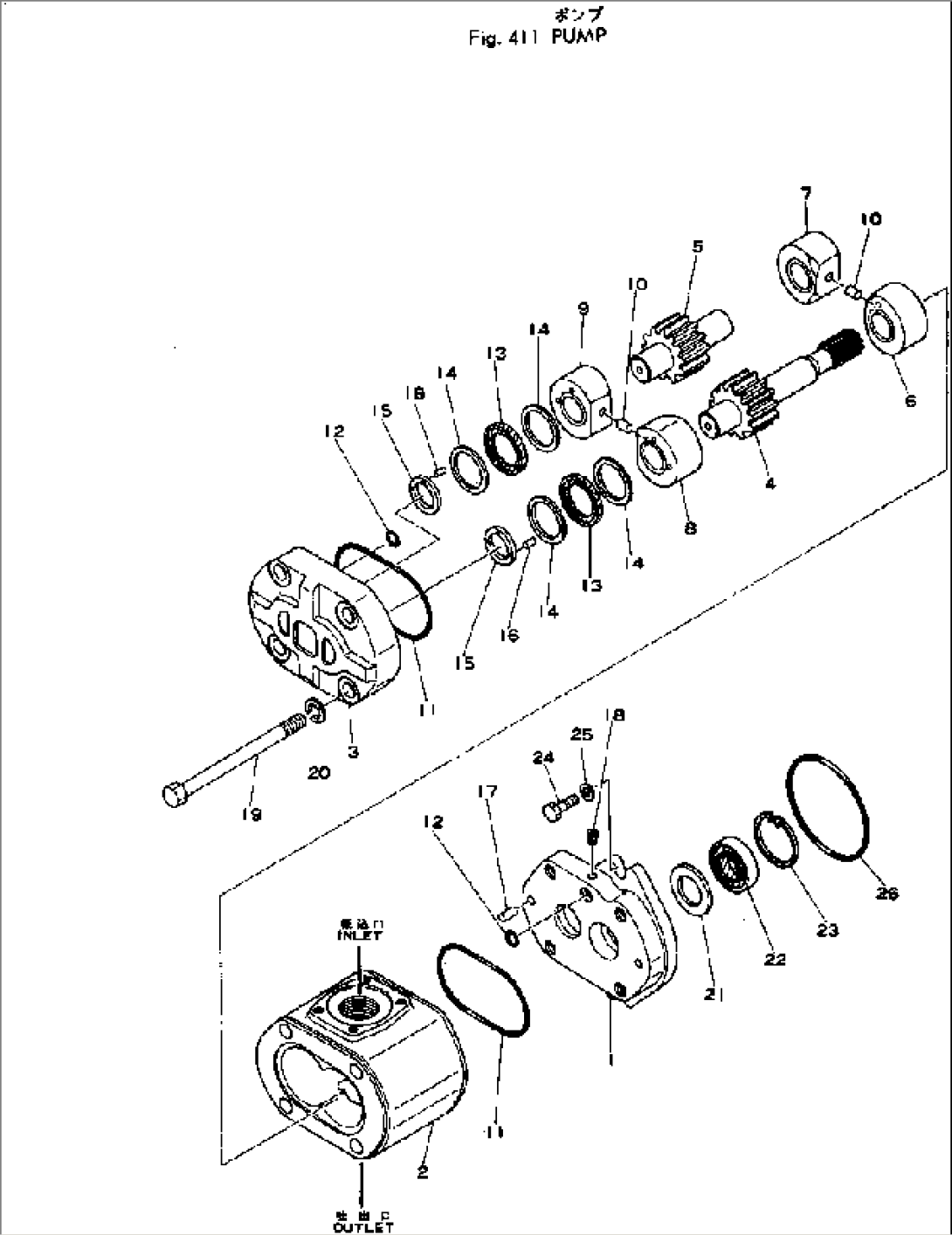

| 704-11-34200 | PUMP ASS'Y | 10001- | ||
| 1 | \6\ | BRACKET | 10001- | |
| 2 | \6\ | CASE | 10001- | |
| 3 | \6\ | COVER | 10001- | |
| 4 | \6\ | GEAR,DRIVE | 10001- | |
| 5 | \6\ | GEAR,DRIVEN | 10001- | |
| 6 | \6\ | BUSHING | 10001- | |
| 7 | \6\ | BUSHING | 10001- | |
| 8 | \6\ | BUSHING | 10001- | |
| 9 | \6\ | BUSHING | 10001- | |
| 10 | \6\ | PIN | 10001- | |
| 11 | 07000-13080 | O-RING | 10001- | |
| 12 | 07000-12012 | O-RING | 10001- | |
| 13 | 704-17-02470 | U-RING | 10001- | |
| 14 | 704-17-02440 | RING | 10001- | |
| 15 | \6\ | PLATE | 10001- | |
| 16 | \6\ | PIN | 10001- | |
| 17 | \6\ | PIN | 10001- | |
| 18 | \6\ | PLUG | 10001- | |
| 19 | 01011-51050 | BOLT | 10001- | |
| 20 | 01602-21030 | WASHER | 10001- | |
| 21 | \6\ | PLATE | 10001- | |
| 22 | 07426-11163 | SEAL | 10001- | |
| 23 | \6\ | RING | 10001- | |
| 24 | 382-024862-1 | BOLT | 10001- | |
| 25 | 382-025555-1 | WASHER | 10001- | |
| 26 | 382-343700-1 | O-RING | 10001- |
