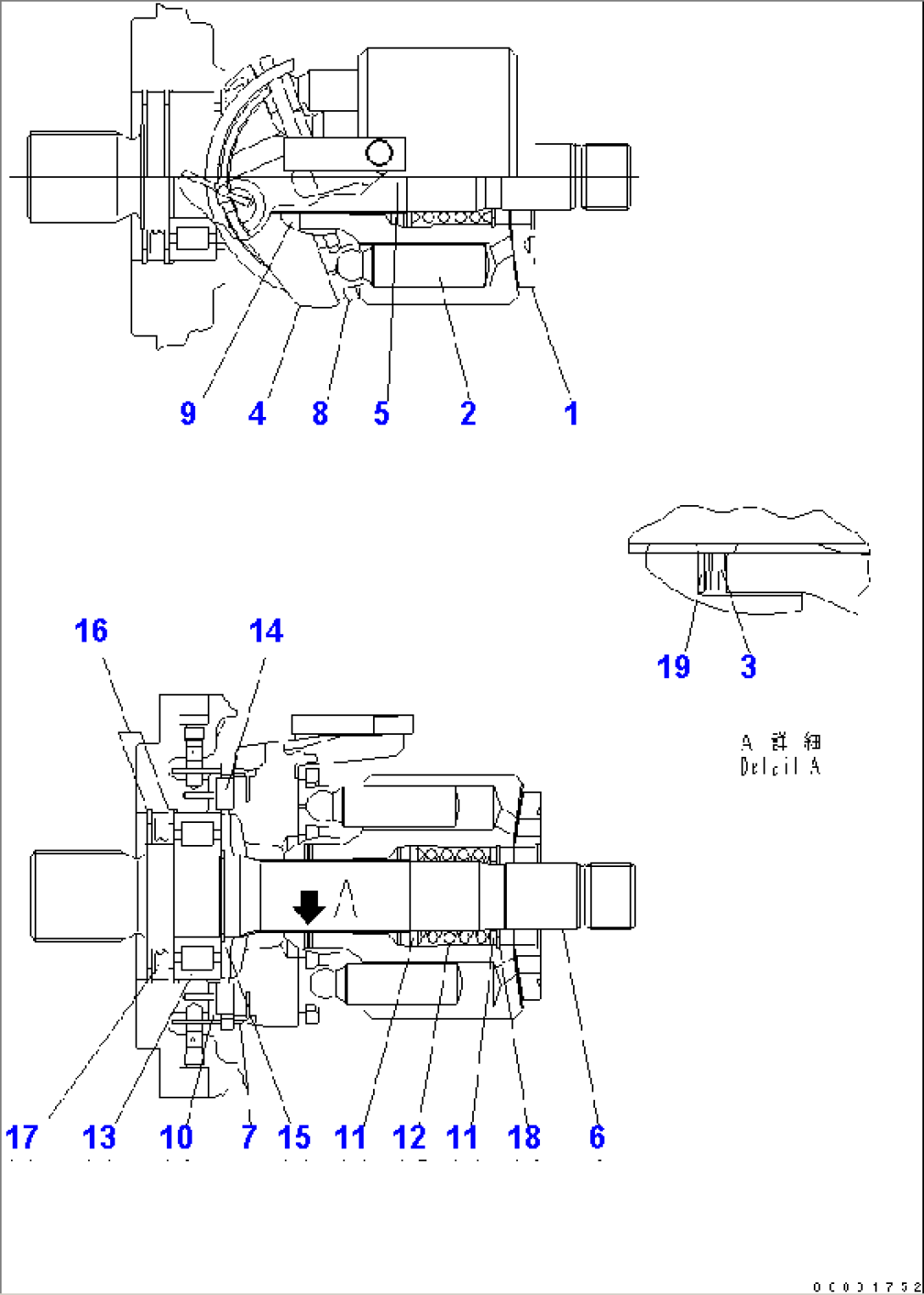

| Item | Part No. | Part Name | Qty | Serial No. |
| (417-18-31102) | PUMP | 69308- | ||
| (\0\417-18-31101) | PUMP | 65001-69307 | ||
| (\7\UC4100516369) | ROTARY GROUP | 65001- | ||
| 1 | (\7\UC4100663833) | CYLINDER BLOCK | 65001- | |
| 2 | (\7\UC4704145157) | PISTON | 65001- | |
| 3 | UC1709217287 | SPRING | 65001- | |
| 4 | UC1709222555 | HANGER | 65001- | |
| 5 | UC1704498106 | GUIDE | 65001- | |
| 6 | UC1099215509 | SHAFT | 65001- | |
| 7 | UC1704179593 | PIN | 65001- | |
| 8 | (\7\UC1709217296) | RETAINER | 65001- | |
| 9 | (\7\UC1709217306) | GUIDE | 65001- | |
| 10 | UC1020665932 | BEARING | 65001- | |
| 11 | UC1704498858 | SHIM, 3.0MM | 65001- | |
| 12 | UC1704356497 | SPRING | 65001- | |
| 13 | UC1701531044 | BEARING | 65001- | |
| 14 | UC1708301657 | BEARING | 65001- | |
| 15 | UC1302133001 | RING | 65001- | |
| 16 | UC1726000019 | WASHER | 65001- | |
| 17 | UC1026018204 | RING,SEAL | 65001- | |
| 18 | UC1700845562 | WASHER | 65001- | |
| 19 | (\7\UC1704329835) | SHIM, 1.2MM | 65001- | |
| 19 | (\7\UC1704329844) | SHIM, 1.0MM | 65001- | |
| 19 | (\7\UC1704329853) | SHIM, 0.8MM | 65001- | |
| 19 | (\7\UC1704329862) | SHIM, 0.6MM | 65001- |
