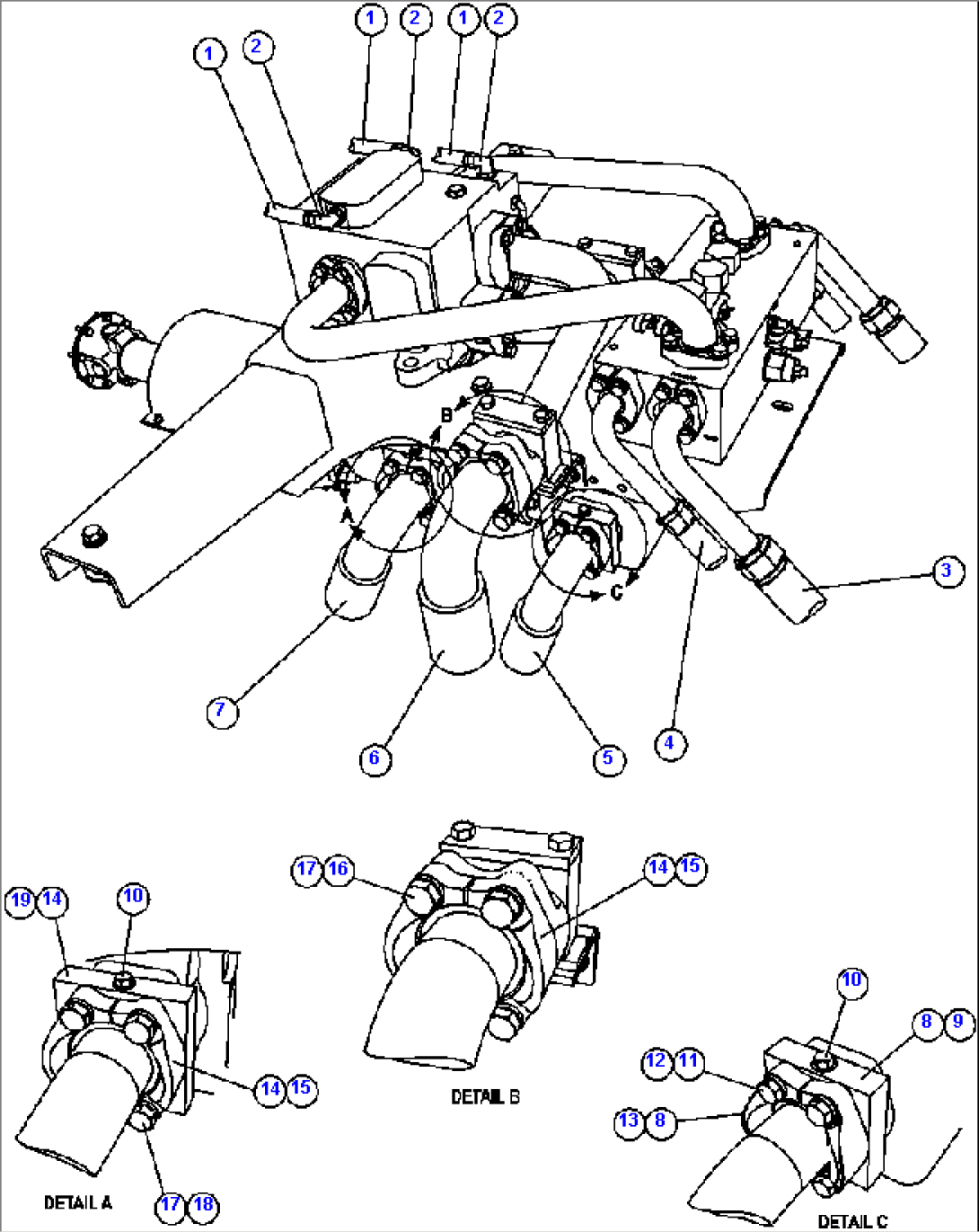

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA6502 | HOSE | ||
| 2 | WB0508 | FITTING, 37 DEG FLARE, 90 DEG ELBOW | ||
| 3 | HA7431 | HOSE | ||
| 4 | HA2463 | HOSE | ||
| 5 | HA7894 | HOSE | ||
| 6 | HA7340 | HOSE | ||
| 7 | HA7768 | HOSE | ||
| 8 | WA0232 | O-RING | ||
| 9 | EG0479 | FLANGE, ADAPTER | ||
| 10 | VM0313 | PLUG, O-RING BOSS - 1/4" | ||
| 11 | C1619 | CAPSCREW - 1/2" - 13NC X 2 3/4" | ||
| 12 | C1540 | LOCKWASHER - 1/2" | ||
| 13 | VH6718 | CLAMP, SPLIT FLANGE | ||
| 14 | WA0237 | O-RING | ||
| 15 | VL9963 | CLAMP, SPLIT FLANGE | ||
| 16 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | ||
| 17 | C1541 | LOCKWASHER - 5/8" | ||
| 18 | C1634 | CAPSCREW - 5/8" - 11NC X 3" | ||
| 19 | EF8352 | ADAPTER, FLANGE |
