| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (705-52-30490) | PUMP ASS'Y,SWITCH (SAR3-63-28) | 50001- | |
| 2 | (705-12-38011) | PUMP ASS'Y,STEERING (SAR3-80) | 50001- | |
| 3 | 07000-12130 | O-RING | 50001- | |
| 4 | 01010-81645 | BOLT | 50001- | |
| 5 | 01643-31645 | WASHER | 50001- |
- Главная
- Каталог запчастей
- Колесные бульдозеры
- Wd500 3 s/n 50001 up
- Hydraulic system
- Pump (pump and mounting parts)
Поиск по каталогу

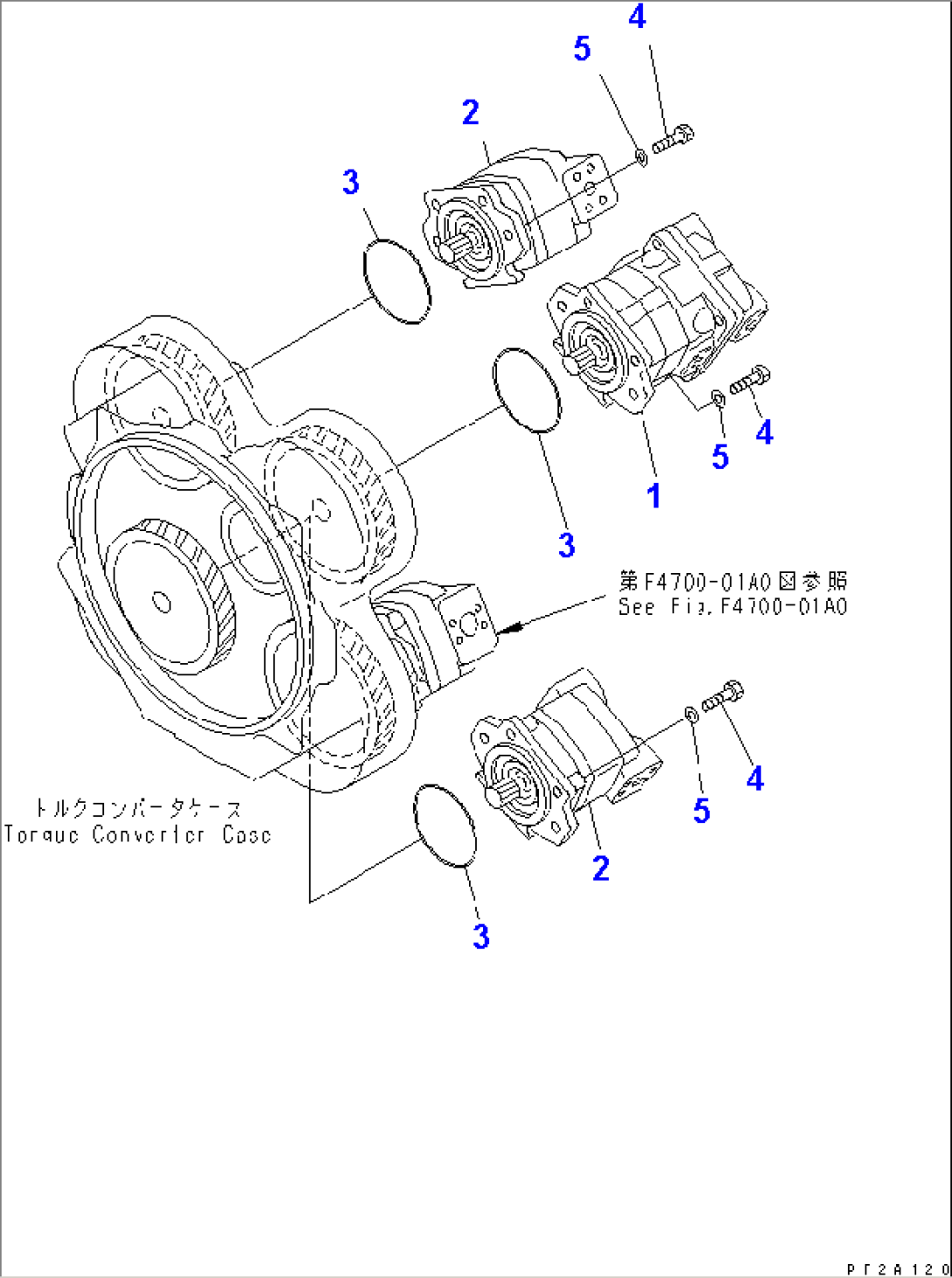

PUMP (PUMP AND MOUNTING PARTS)
