| Item | Part No. | Part Name | Qty | Serial No. |

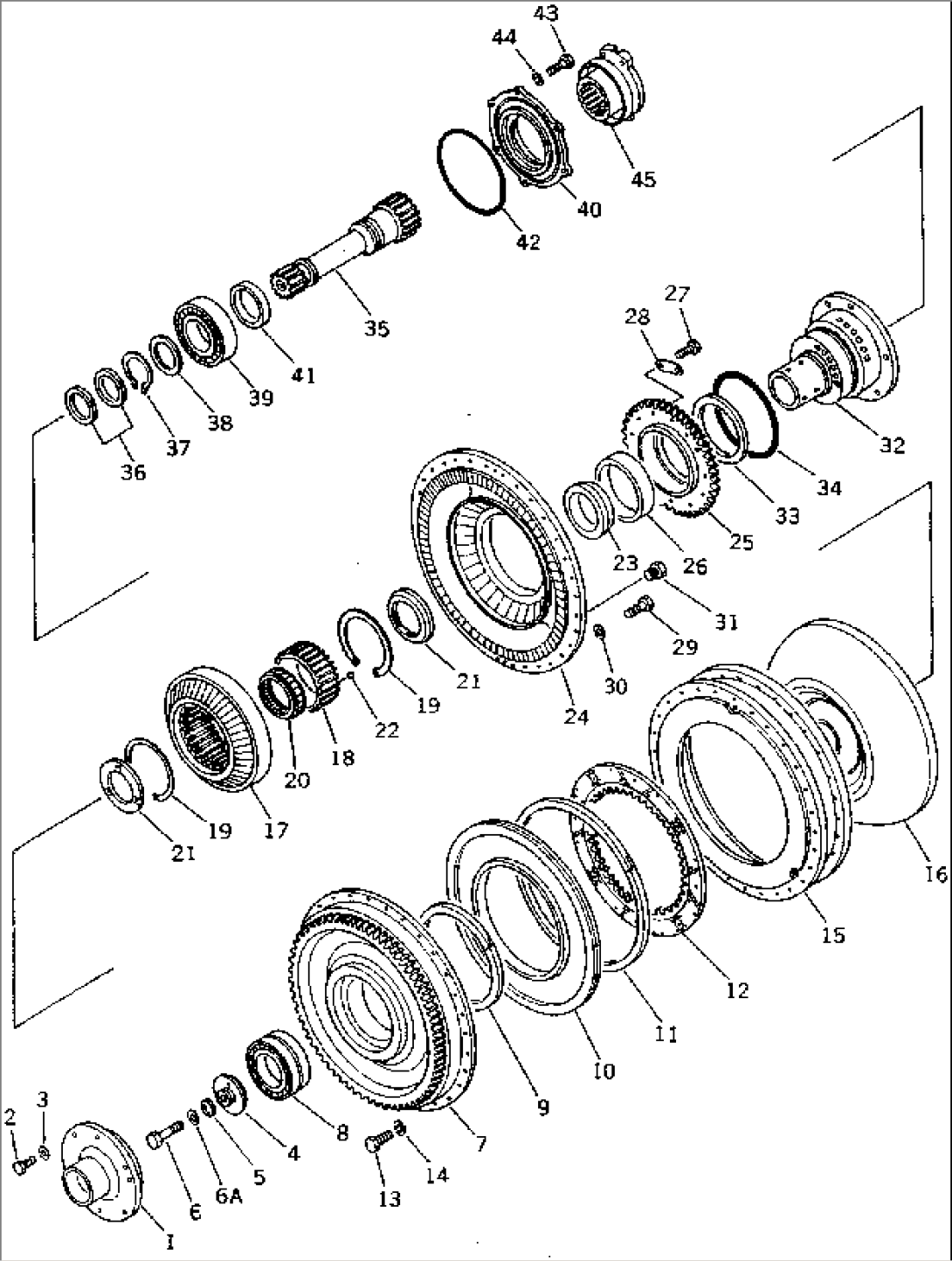

| (567-13-11004) | TORQUE CONVERTER A. | 1003- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2231 TO 2241. | ||||
| 1 | 411-13-11252 | PILOT | 1003- | |
| 2 | 01010-61030 | BOLT | 1003- | |
| 3 | 01643-31032 | WASHER | 1003- | |
| 4 | 567-13-11690 | HOLDER | 1003- | |
| 5 | 411-13-11781 | RING,SEAL | 1003- | |
| 6 | 567-13-11791 | BOLT | 1003- | |
| 6A | 01643-31845 | WASHER | 1003- | |
| 7 | 567-13-17110 | HOUSING ASS'Y | 1003- | |
| 7 | 281-13-17140 | PIN | 1003- | |
| 8 | 175-13-21240 | BEARING | 1003- | |
| 9 | 281-13-17150 | RING,SEAL | 1003- | |
| 10 | 281-13-17212 | PISTON | 1003- | |
| 11 | 281-13-17250 | RING,SEAL | 1003- | |
| 12 | 567-13-17230 | DISC | 1003- | |
| 13 | 01010-61035 | BOLT | 1003- | |
| 14 | 01602-21030 | WASHER,SPRING | 1003- | |
| 15 | 281-13-11212 | CASE | 1003- | |
| 16 | 567-13-11513 | TURBINE ASS'Y | 1003- | |
| 17 | 567-13-12111 | STATOR | 1003- | |
| 18 | 567-13-12121 | RACE,OUTER | 1003- | |
| 19 | 567-13-11170 | RING,SNAP | 1003- | |
| 20 | 281-13-12161 | WHEEL | 1003- | |
| 21 | 567-13-12141 | BUSHING | 1003- | |
| 22 | 04260-00635 | BALL | 1003- | |
| 23 | 567-13-12681 | SPACER | 1003- | |
| 24 | 256-13-11110 | PUMP ASS'Y | 1003- | |
| 25 | 567-13-11140 | GEAR | 1003- | |
| 26 | 567-13-11160 | BUSHING | 1003- | |
| 27 | 01010-61030 | BOLT | 1003- | |
| 28 | 281-13-11150 | LOCK (K27A) | 1003- | |
| 29 | 01010-61035 | BOLT | 1003- | |
| 30 | 01643-31032 | WASHER | 1003- | |
| 31 | 07040-11007 | PLUG,DRAIN | 1003- | |
| 32 | 567-13-12522 | SHAFT | 1003- | |
| 33 | 195-13-12711 | RING,SEAL | 1003- | |
| 34 | 07000-75170 | O-RING (K27A) | 1003- | |
| 35 | 567-13-11651 | SHAFT,TURBINE | 1003- | |
| 36 | 411-13-11720 | RING,SEAL | 1003- | |
| 37 | 04064-06525 | RING,SNAP | 1003- | |
| 38 | 175-13-21770 | SPACER | 1003- | |
| 39 | 06040-06313 | BEARING | 1003- | |
| 40 | 567-13-12720 | COVER | 1003- | |
| 41 | 07012-10095 | SEAL,OIL (K27A) | 1003- | |
| 42 | 07000-65185 | O-RING (K27A) | 1003- | |
| 43 | 01010-51255 | BOLT | 1003- | |
| 44 | 01602-21236 | WASHER,SPRING | 1003- | |
| 45 | 567-13-11660 | COUPLING COMPLETE | .- | |
| 45 | \0\256-13-11661 | COUPLING | 1003-. |
