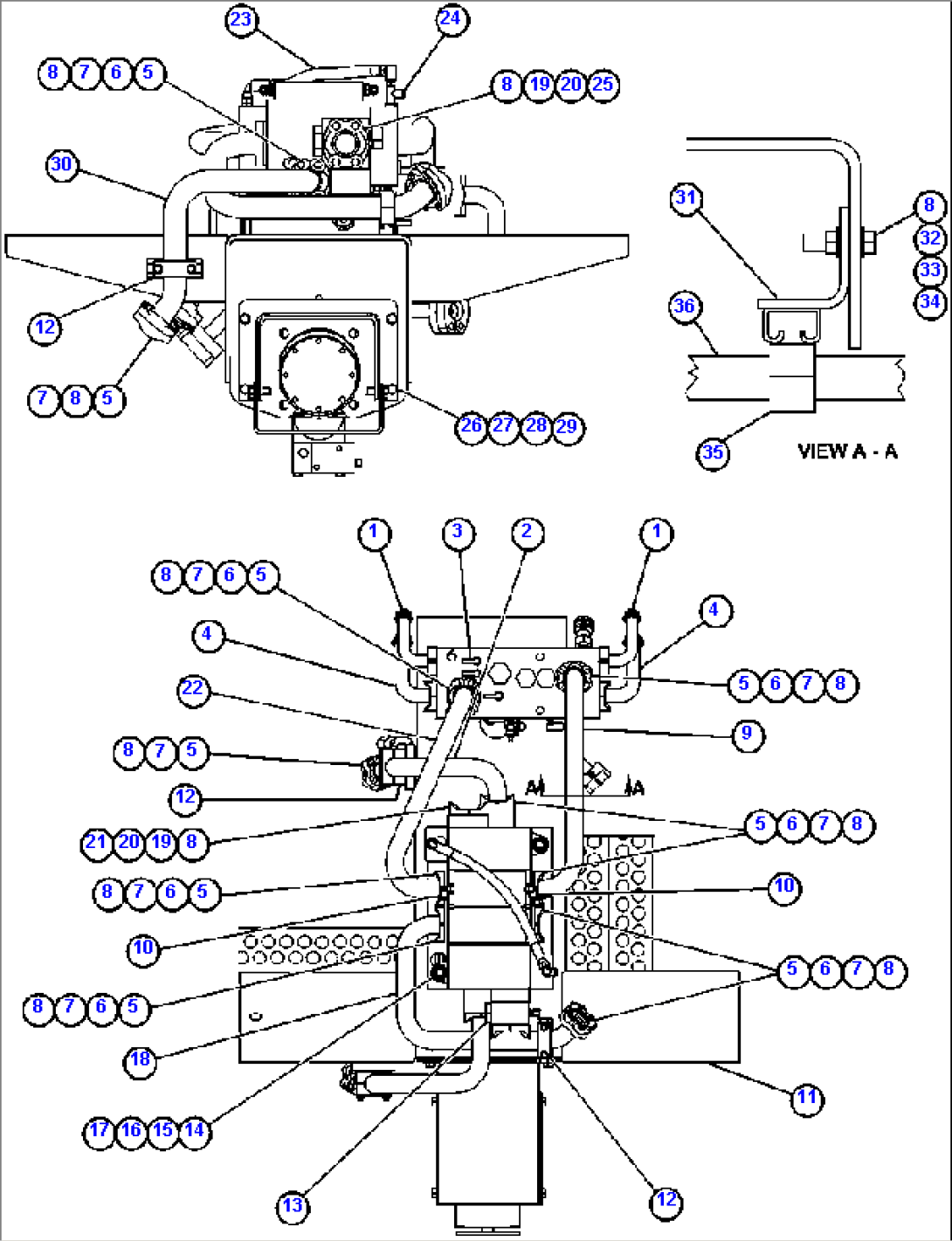

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH3596 | TUBE, HYDRAULIC | ||
| 2 | EH8493 | TUBE | ||
| 3 | PB6770 | COUPLING, MALE QUICK DISCONNECT | ||
| 4 | TY9636 | TUBE | ||
| 5 | TF3231 | CLAMP SPLIT FLANGE | ||
| 6 | WA0187 | O-RING | ||
| 7 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 8 | C1540 | LOCKWASHER - 1/2" | ||
| 9 | EH8495 | TUBE | ||
| 10 | WB0508 | FITTING - 90 DEG | ||
| 11 | EH8497 | MOUNT, PUMP/VALVE | ||
| 12 | WA4712 | CLAMP | ||
| 13 | WB0604 | FITTING, STRAIGHT ADAPTOR | ||
| 14 | C1663 | CAPSCREW - 7/8" - 9NC X 3" | ||
| 15 | C1543 | LOCKWASHER - 7/8" | ||
| 16 | WA0363 | FLAT WASHER - 7/8" | ||
| 17 | C1529 | NUT - 7/8" - 9NC | ||
| 18 | EH8492 | TUBE | ||
| 19 | VH6718 | CLAMP, SPLIT FLANGE | ||
| 20 | WA0232 | O-RING | ||
| 21 | C1615 | CAPSCREW - 1/2" - 13NC X 1 3/4" | ||
| 22 | EH8494 | TUBE | ||
| 23 | HA5698 | HOSE | ||
| 24 | WB0557 | FITTING, TEE | ||
| 25 | C1624 | CAPSCREW - 1/2" - 13NC X 4" | ||
| 26 | C5762 | CAPSCREW - 5/8" - 11NC X 1 1/2" | ||
| 27 | C1541 | LOCKWASHER - 5/8" | ||
| 28 | WA0361 | FLAT WASHER - 5/8" | ||
| 29 | VN9952 | NUT, LOCK - 5/8" - 11NC | ||
| 30 | EH8491 | TUBE | ||
| 31 | ED6147 | BRACKET, ANGLE | ||
| 32 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 33 | WA0360 | FLAT WASHER - 1/2" | ||
| 34 | C1523 | NUT - 1/2" - 13NC | ||
| 35 | WA4709 | CLAMP, HYDRA ZORB 1 1/4" | ||
| 36 | EH8490 | TUBE |
