| Item | Part No. | Part Name | Qty | Serial No. |

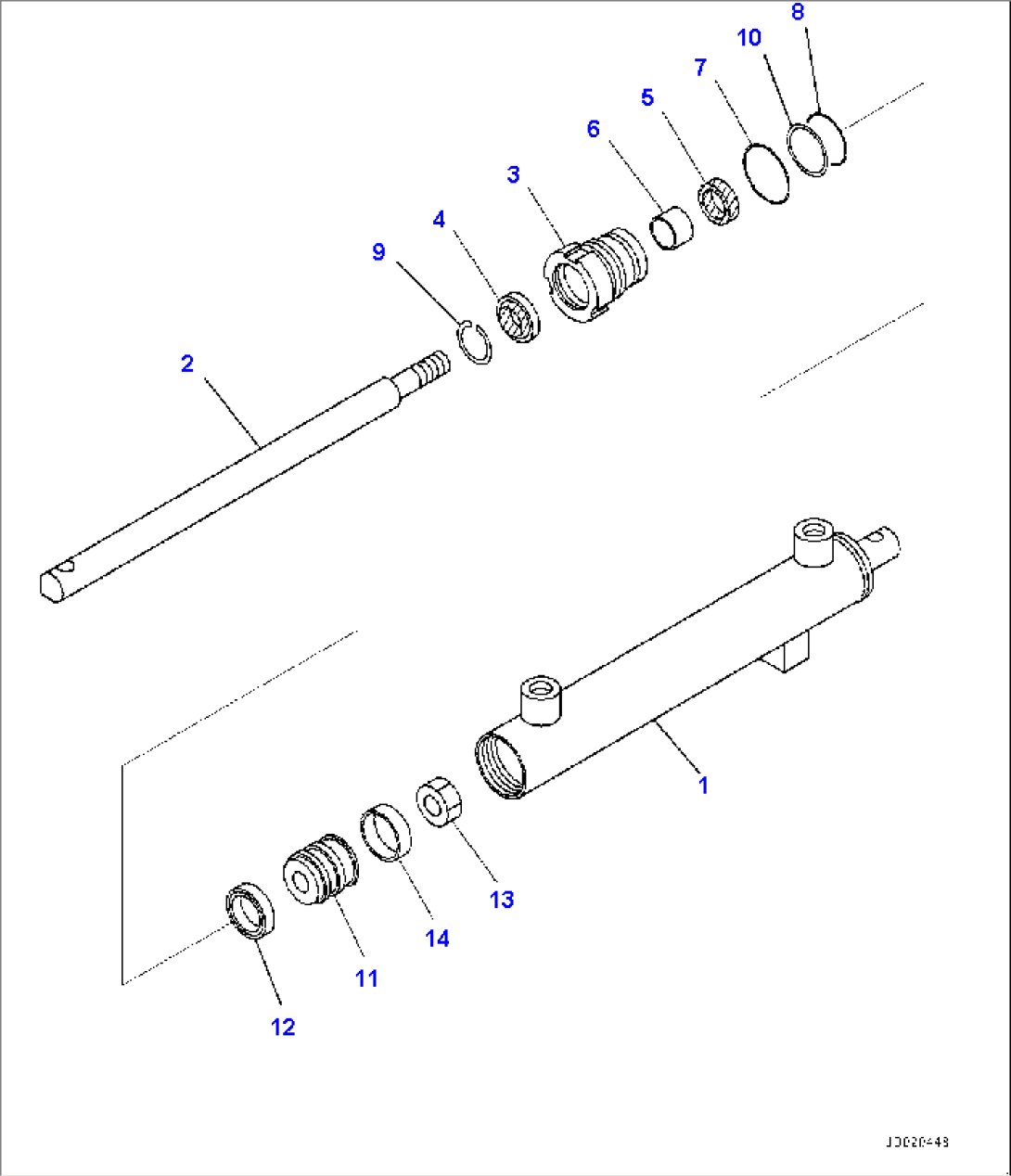

| 707-00-02460 | Cylinder Assembly | 77841- | ||
| 1 | 707-11-35280 | Cylinder | 77841- | |
| 2 | 707-58-20180 | Rod, Piston | 77841- | |
| 3 | 707-29-35060 | Head, Cylinder | 77841- | |
| 4 | 707-56-20740 | Seal, Dust | 77841- | |
| 5 | 707-51-20030 | Packing, Rod | 77841- | |
| 6 | 707-52-10261 | Bushing | 77841- | |
| 7 | 707-34-36000 | O-ring | 77841- | |
| 8 | 07000-13030 | O-ring | 77841- | |
| 9 | 707-75-20050 | Ring, Snap | 77841- | |
| 10 | 707-35-90300 | Ring, Back-up | 77841- | |
| 11 | 707-36-35020 | Piston | 77841- | |
| 12 | 707-44-35010 | Ring, Piston | 77841- | |
| 13 | 01580-01411 | Nut | 77841- | |
| 14 | 707-39-35010 | Ring, Wear | 77841- |
