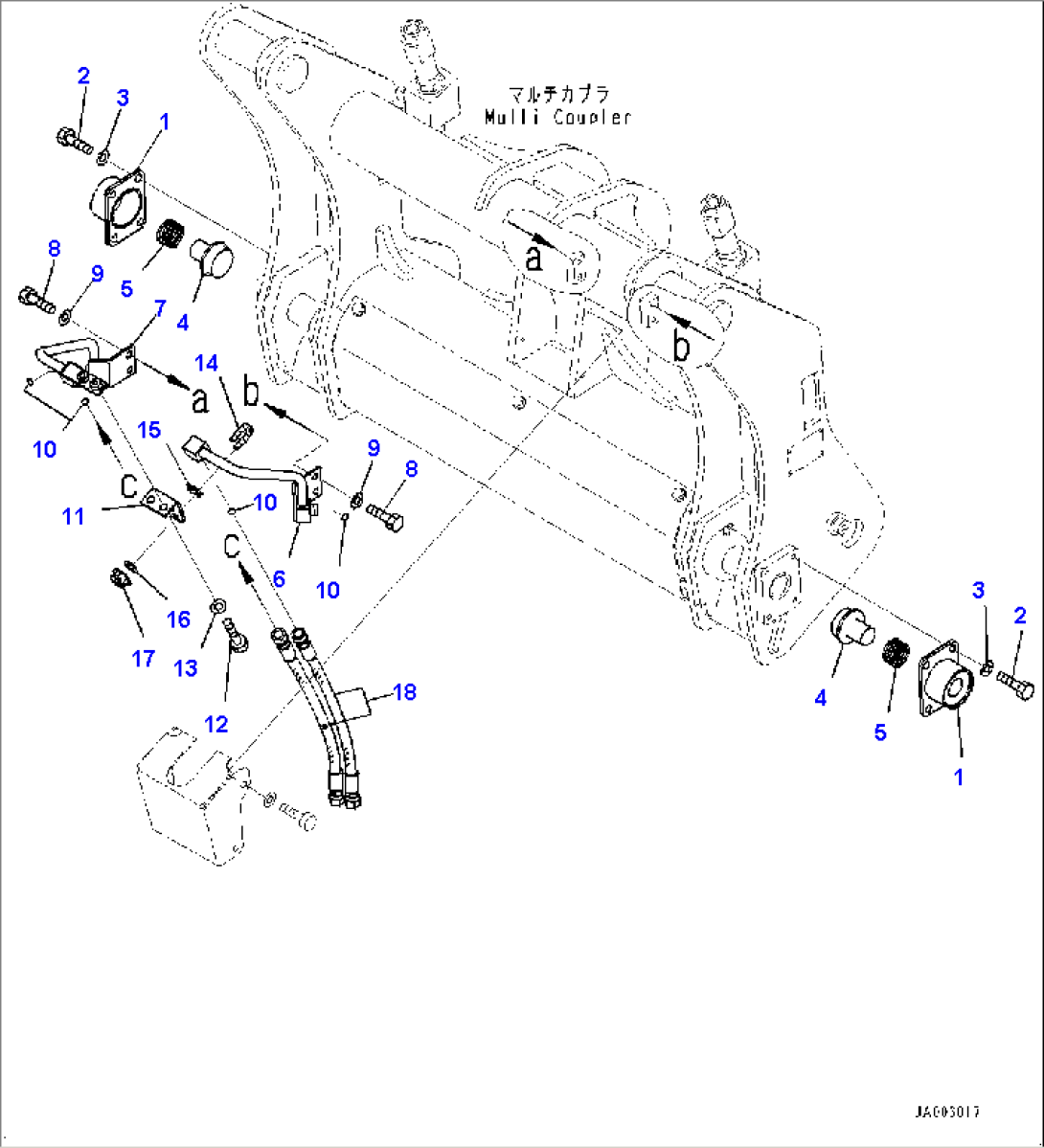

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-T81-4551 | Bracket | 80001- | |
| 2 | 01010-81025 | Bolt | 80001- | |
| 3 | 01643-31032 | Washer | 80001- | |
| 4 | 416-T80-4690 | Pin | 80001- | |
| 5 | 135-49-23340 | Spring | 80001- | |
| 6 | 416-T80-4730 | Tube | 80001- | |
| 7 | 416-T80-4890 | Tube | 80001- | |
| 8 | 01010-81020 | Bolt | 80001- | |
| 9 | 01643-31032 | Washer | 80001- | |
| 10 | 02896-11009 | O-ring | 80001- | |
| 11 | 416-T80-4920 | Plate | 80001- | |
| 12 | 01010-81025 | Bolt | 80001- | |
| 13 | 01643-31032 | Washer | 80001- | |
| 14 | 07283-31529 | Clip, Pipe | 80001- | |
| 15 | 07283-51523 | Seat | 80001- | |
| 16 | 01643-30823 | Washer | 80001- | |
| 17 | 01596-00807 | Nut | 80001- | |
| 18 | 02753-203A3 | Hose, Face Seal Type | 80001- |
