| Item | Part No. | Part Name | Qty | Serial No. |
| (175-63-12300) | CYLINDER ASS'Y,L.H. | 8329-8407 | ||
| (175-63-12005) | CYLINDER ASS'Y,L.H. | 8160-8328 | ||
| (175-63-12400) | CYLINDER ASS'Y,R.H. | 8329-8407 | ||
| (175-63-12105) | CYLINDER ASS'Y,R.H. | 8160-8328 | ||

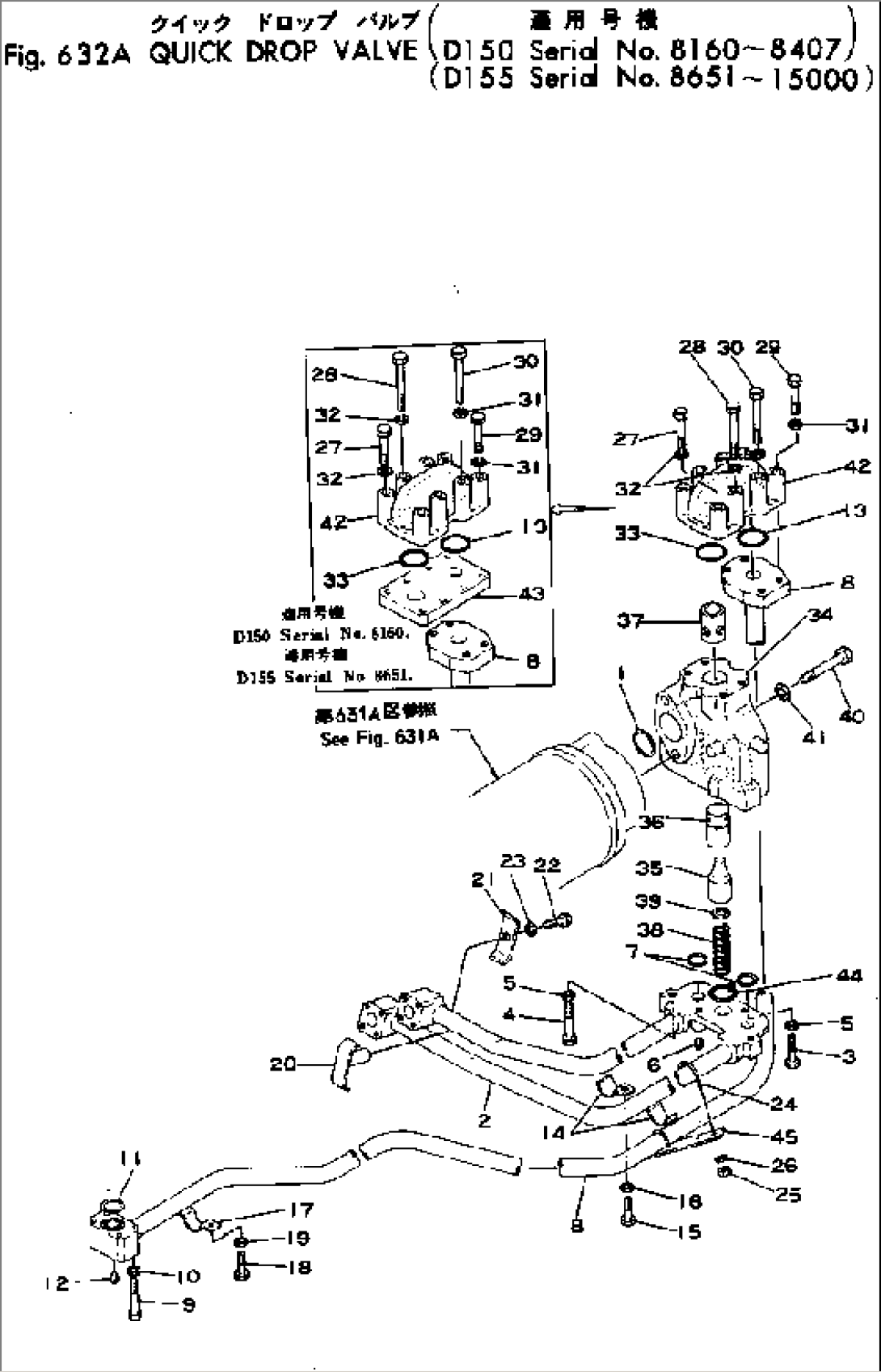

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.631A AND 632A. | ||||
| 1 | 07000-12055 | O-RING | 8160-8407 | |
| 2 | 175-63-12760 | TUBE,L.H. | 8329-8407 | |
| 2 | 175-63-12560 | TUBE,L.H. | 8160-8328 | |
| 2 | 175-63-12770 | TUBE,R.H. | 8329-8407 | |
| 2 | 175-63-12570 | TUBE,R.H. | 8160-8328 | |
| 3 | 01010-51260 | BOLT | 8160-8407 | |
| 4 | 01010-51270 | BOLT | 8160-8407 | |
| 5 | 01602-21236 | WASHER,SPRING | 8160-8407 | |
| 6 | 07042-00108 | PLUG | 8160-8407 | |
| 7 | 07000-13038 | O-RING | 8160-8407 | |
| 8 | 175-63-12461 | TUBE,L.H. | 8329-8407 | |
| 8 | 175-63-12661 | TUBE,L.H. | .-8328 | |
| 8 | \0\175-63-12660 | TUBE,L.H. | 8160-. | |
| 8 | 175-63-12471 | TUBE,R.H. | 8329-8407 | |
| 8 | 175-63-12671 | TUBE,R.H. | .-8328 | |
| 8 | \0\175-63-12670 | TUBE,R.H. | 8160-. | |
| 9 | 01010-51075 | BOLT | 8160-8407 | |
| 10 | 01602-21030 | WASHER,SPRING | 8160-8407 | |
| 11 | 07000-13035 | O-RING | 8160-8407 | |
| 12 | 07042-00108 | PLUG | 8160-8407 | |
| 13 | 07000-13045 | O-RING | 8160-8407 | |
| 14 | 175-63-12580 | CLAMP | 8160-8407 | |
| 15 | 01010-51020 | BOLT | 8160-8407 | |
| 16 | 01602-21030 | WASHER,SPRING | 8160-8407 | |
| 17 | 07282-03411 | CLAMP | 8160-8407 | |
| 18 | 01010-51020 | BOLT | 8160-8407 | |
| 19 | 01602-21030 | WASHER,SPRING | 8160-8407 | |
| 20 | 175-63-12680 | CLIP | 8160-8407 | |
| 21 | 175-63-12780 | CLIP | 8160-8407 | |
| 22 | 01010-51020 | BOLT | 8160-8407 | |
| 23 | 01602-21030 | WASHER,SPRING | 8160-8407 | |
| 24 | 07283-03450 | CLIP | 8329-8407 | |
| 24 | \0\07283-03442 | CLIP | 8160-8328 | |
| 25 | 01599-01011 | NUT | 8160-8407 | |
| 26 | 01643-01032 | WASHER | 8160-8407 | |
| 27 | 01010-51065 | BOLT | 8160-8407 | |
| 27 | 01010-51075 | BOLT | 8160-8407 | |
| 28 | 01010-51075 | BOLT | 8160-8407 | |
| 28 | 01010-51085 | BOLT | 8160-8407 | |
| 29 | 01010-51270 | BOLT | 8160-8407 | |
| 29 | 01010-51280 | BOLT | 8160-8407 | |
| 30 | 01010-51280 | BOLT | 8160-8407 | |
| 30 | 01010-51290 | BOLT | 8160-8407 | |
| 31 | 01602-21236 | WASHER,SPRING | 8160-8407 | |
| 32 | 01602-21030 | WASHER,SPRING | 8160-8407 | |
| 33 | 07000-13048 | O-RING | 8160-8407 | |
| 33 | 07000-13048 | O-RING | 8160-8407 | |
| 175-63-14000 | VALVE ASS'Y | 8160-8407 | ||
| 195-63-00140 | BODY ASS'Y | 8160-8407 | ||
| 34 | \6\ | BODY | 8160-8407 | |
| 35 | \6\ | VALVE | 8160-8407 | |
| 36 | \6\ | VALVE | 8160-8407 | |
| 37 | 175-63-14161 | COLLAR | 8160-8407 | |
| 38 | 195-63-14180 | SPRING | 8160-8407 | |
| 39 | 01642-21216 | WASHER | 8160-8407 | |
| 40 | 01011-51615 | BOLT | 8160-8407 | |
| 41 | 01602-21648 | WASHER,SPRING | 8160-8407 | |
| 42 | 195-63-14130 | ELBOW | 8160-8407 | |
| 43 | 175-63-12870 | PLATE | 8160-8407 | |
| 44 | 07000-13045 | O-RING | 8160-8407 | |
| 45 | 175-63-12880 | PLATE | 8329-8407 | |
| 45 | 175-63-12590 | PLATE | 8160-8328 |
